Overview
LF Driver
Eighteen Sound
Eighteen Sound 15W750

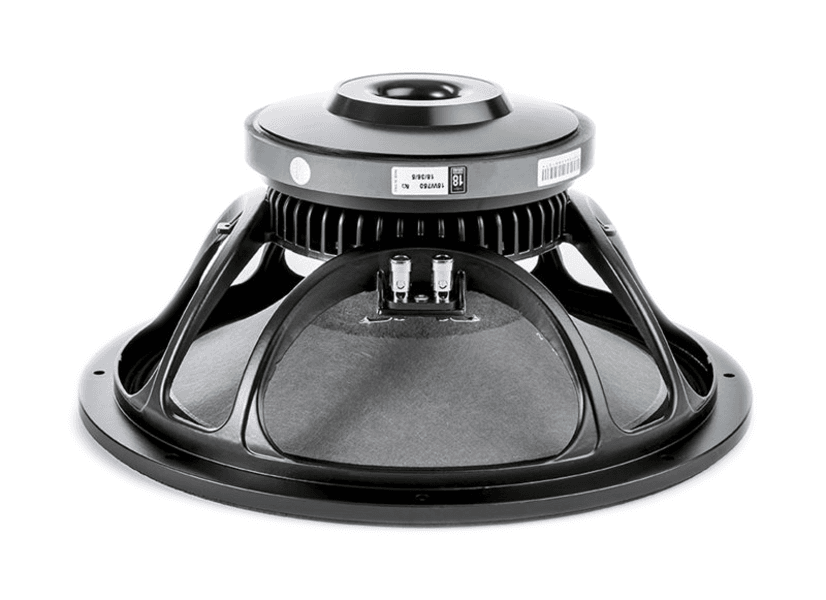

Eighteen Sound 15W750 is a 15" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 39Hz, Qts 0.37, Vas 218L, Xmax 8mm, sensitivity 97.2dB, plus 680cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £186.96.
Size
15"
Impedance
8Ω
RMS Power
600W
Sensitivity
97.2dB
EBP
100
Either alignment
Vd
680cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

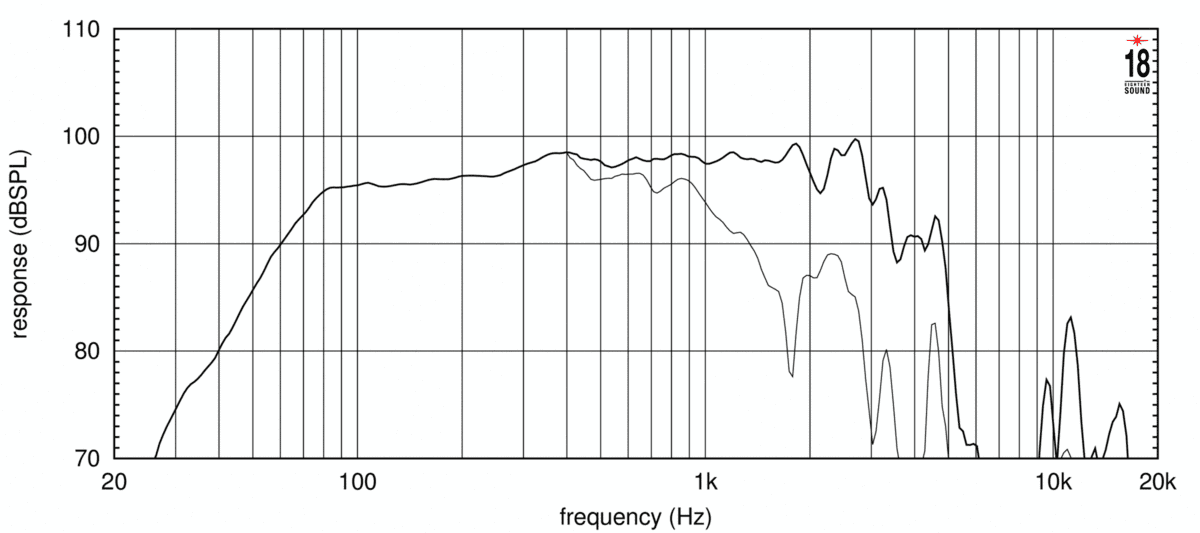

frequency response
Frequency response
240 plotted pointsMedium confidence2,333 selected pixels of 2,581 - Trace datasheet-response-trace-poc/v1

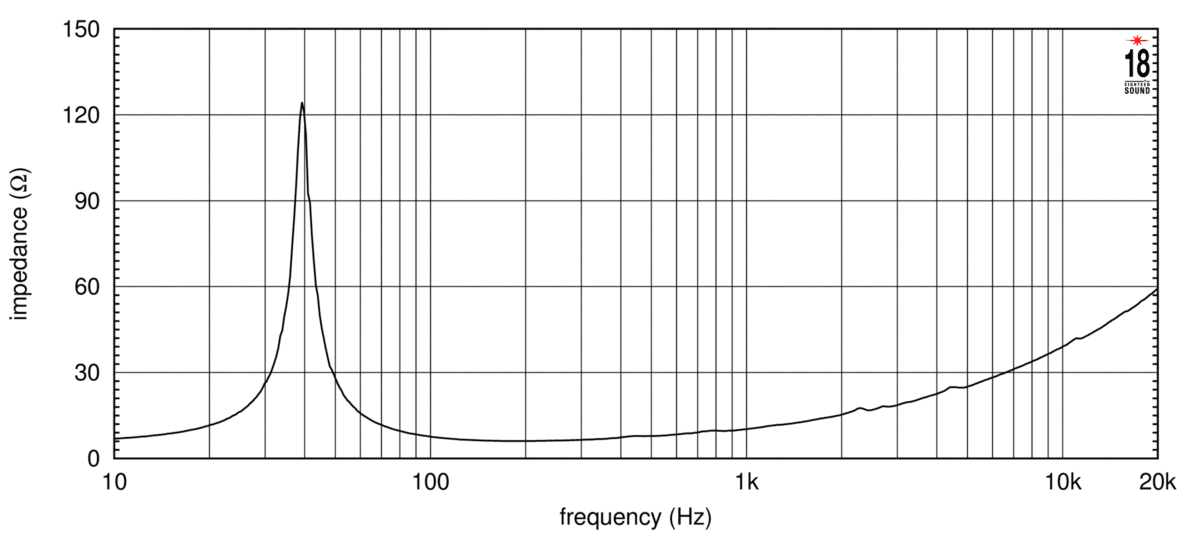

impedance
Impedance response
240 plotted pointsMedium confidence1,800 selected pixels of 1,929
T/S Parameters
Valid
Fs39Hz
Qts0.37
Qes0.39
Qms9.3
Vas218.0L
Re5.1Ω
Le1.10mH
BL17.6Tm
Sd850cm²
Mms88g
Xmax8.0mm
SPL97dB
Power600W
Power Nominal600W
Impedance8Ω
F Low50Hz
F High4300Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£186.96
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.9kg
Diameter393.0mm
Overall Depth184.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter371.0mm
