GRS15PT-8
£53.10Fs28 Hz −24%, better
Qts0.41 +5%
Vas242.1 L –
BL20.2 T·m +27%, better
Xmax7.8 mm +20%, better
Sensitivity92.9 dB −3.7, worse
15-inch LF driver · 600 W

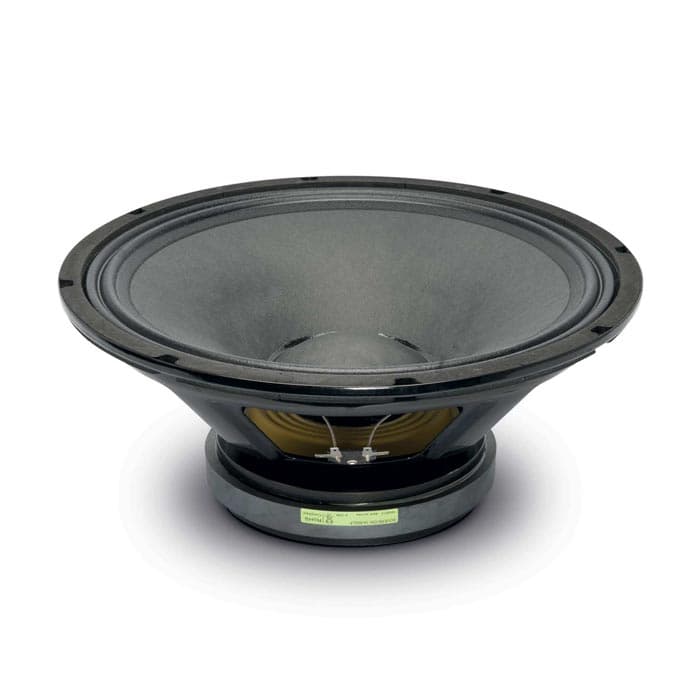

Fane SOVEREIGN 15-600LF 4Ω
4 Ω · 38–3500 Hz
No current price
- Fs
- 37Hz
- Xmax
- 6.5mm
- SPL
- 97dB
- Pe
- 600W
- BL
- 15.9T·m
- Vd
- 556cm³
- Qts
- 0.39
- Vas
- 236L
Fane SOVEREIGN 15-600LF is a 15-inch 4 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.39, Vas 236 L, Xmax 6.5 mm, sensitivity 96.6 dB, plus 556 cm³ Vd and 89 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 37Hz
- Qts
- 0.39
- Qes
- 0.41
- Qms
- 6.3
- Vas
- 236L
- Re
- 5.4Ω
- Le
- 1.52mH
Motor and cone
- BL
- 15.9T·m
- Sd
- 855cm²
- Mms
- 81g
- Xmax
- 6.5mm
- Vd †
- 556cm³
Power and response
- Sensitivity †
- 96.6dB
- Manufacturer sensitivity
- 98.5dB
- Power
- 600W
- Impedance
- 4Ω
- Range
- 38–3500Hz
- EBP †
- 89 · Sealed or vented
Size and mounting
- Diameter
- 381mm
- Depth
- 168.9mm
- Weight
- 8.2kg
Other published values
- Cms
- 0.23mm/N
- Power Peak
- 2400
- Power Program
- 1200
Sensitivity shows 96.6 dB, calculated from the T/S values. Fane publishes 98.5 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 15″
- BL
- 15.9T·m
- Fs
- 37Hz
- Le
- 1.52mH
- Re
- 5.4Ω
- Sd
- 855cm²
- Cms
- 0.23mm/N
- Mms
- 81g
- Qes
- 0.41
- Qms
- 6.3
- Qts
- 0.39
- SPL
- 96.6dB
- Vas
- 236L
- Xmax
- 6.5mm
- Power
- 600W
- Impedance
- 4Ω
- Power Peak
- 2400
- Sensitivity
- 98.5dB
- Low limit
- 38Hz
- Power Program
- 1200
- Calculated sensitivity †
- 96.6dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 98.5dB
- Weight
- 8.2kg
- Diameter
- 381mm
- Depth
- 168.9mm
02
Compare
Same-size drivers, compared with the SOVEREIGN 15-600LF. Clear differences are green when better and red when worse.
This driverSOVEREIGN 15-600LF
Best price
–
Fs
37 Hz
Qts
0.39
Vas
236 L
BL
15.9 T·m
Xmax
6.5 mm
Sensitivity
96.6 dB
Power
600 W
SB AudienceBIANCO-15MW500
£110.00Fs39 Hz +5%
Qts0.40 –
Vas171 L −28%, better
BL18.8 T·m +18%, better
Xmax7.6 mm +17%, better
Sensitivity96 dB −0.6
EminenceKAPPA PRO-15A
£138.38Fs47 Hz +27%, worse
Qts0.38 –
Vas167.7 L −29%, better
BL16.6 T·m +4%
Xmax3.2 mm −51%, worse
Sensitivity98.4 dB +1.8
EminenceDELTA PRO 15A
£140.63Fs42 Hz +14%, worse
Qts0.40 –
Vas243.5 L +3%
BL14.5 T·m −9%
Xmax4.3 mm −34%, worse
Sensitivity98.2 dB +1.6
EminenceKAPPA-15LFA
£143.62Fs39 Hz +5%
Qts0.38 –
Vas159 L −33%, better
BL18.6 T·m +17%, better
Xmax5.5 mm −15%, worse
Sensitivity95.6 dB −1
CIAREPWA15.75
£146.53Fs44 Hz +19%, worse
Qts0.39 –
Vas135 L −43%, better
BL19.3 T·m +21%, better
Xmax7 mm +8%
Sensitivity96.5 dB –
Beyma15WRS400
£150.88Fs36 Hz –
Qts0.33 −15%, better
Vas236 L –
BL18.2 T·m +14%, better
Xmax6.3 mm −3%
Sensitivity97 dB –
£152.00
Fs40 Hz +8%
Qts0.37 −5%
Vas188 L −20%, better
BL19.7 T·m +24%, better
Xmax6.9 mm +6%
Sensitivity97 dB –
FaitalPRO15PR450
£165.79Fs35 Hz −5%
Qts0.35 −10%, better
Vas235.6 L –
BL16.6 T·m +4%
Xmax6 mm −8%
Sensitivity96.4 dB –
CelestionFTR15-3070C
£166.00Fs41 Hz +12%, worse
Qts0.38 –
Vas187.6 L −21%, better
BL17.3 T·m +9%
Xmax5.5 mm −15%, worse
Sensitivity96.9 dB –
Dayton AudioDCS385-4
£167.38Fs18 Hz −53%, better
Qts0.39 –
Vas311 L +32%, worse
BL15.4 T·m −3%
Xmax9.3 mm +43%, better
Sensitivity88 dB −8.6, worse
CIAREPW396
£186.72Fs43 Hz +16%, worse
Qts0.41 +5%
Vas129 L −45%, better
BL20.5 T·m +29%, better
Xmax6.5 mm –
Sensitivity96 dB −0.6
Eighteen Sound15ND830
£240.31Fs42 Hz +14%, worse
Qts0.34 −13%, better
Vas157 L −33%, better
BL14 T·m −12%, worse
Xmax6.5 mm –
Sensitivity97.1 dB +0.5
B&C15FHX76
£249.00Fs40 Hz +8%
Qts0.43 +11%, worse
Vas186 L −21%, better
BL15.5 T·m –
Xmax7 mm +8%
Sensitivity96.1 dB −0.5
B&C15FCX76
£301.96Fs40 Hz +8%
Qts0.44 +13%, worse
Vas187 L −21%, better
BL15.6 T·m –
Xmax7.5 mm +15%, better
Sensitivity96.1 dB −0.5
Beyma15CXA400ND
£401.87Fs40 Hz +8%
Qts0.36 −7%
Vas196 L −17%, better
BL19 T·m +19%, better
Xmax6 mm −8%
Sensitivity97.1 dB +0.5
Supravox380-2000 LC
£949.24Fs27 Hz −26%, better
Qts0.38 –
Vas461.0 L +95%, worse
BL14.4 T·m −10%
Xmax7 mm +8%
Sensitivity95.7 dB −0.9
Sica15 S 3 PL
No current priceFs33 Hz −11%, better
Qts0.38 –
Vas230 L –
BL17.1 T·m +8%
Xmax8 mm +23%, better
Sensitivity95.3 dB −1.3
No current price
Fs38 Hz –
Qts0.35 −10%
Vas201 L −15%, better
BL17.5 T·m +10%, better
Xmax6 mm −8%
Sensitivity96.5 dB –
EminenceCANNABASS CB3015N-8
No current priceFs41 Hz +10%
Qts0.39 –
Vas162.9 L −31%, better
BL17.8 T·m +12%, better
Xmax7.2 mm +11%, better
Sensitivity96.1 dB −0.5
CelestionTF1530E
No current priceFs44 Hz +18%, worse
Qts0.33 −16%, better
Vas191.6 L −19%, better
BL17.0 T·m +7%
Xmax6.5 mm –
Sensitivity98.3 dB +1.7
Beyma15CXA400FE
No current priceFs40 Hz +8%
Qts0.42 +8%
Vas191 L −19%, better
BL18.2 T·m +14%, better
Xmax6 mm −8%
Sensitivity96.6 dB –
Sica15 CX 3 PL P
No current priceFs45 Hz +20%, worse
Qts0.40 –
Vas152.4 L −35%, better
BL17.3 T·m +9%
Xmax5.5 mm −15%, worse
Sensitivity97.1 dB +0.5
Sica15 CX 3 PL T
No current priceFs45 Hz +20%, worse
Qts0.40 –
Vas152.4 L −35%, better
BL17.3 T·m +9%
Xmax5.5 mm −15%, worse
Sensitivity97.1 dB +0.5
Supravox380-2000 EXC LC
No current priceFs31 Hz −16%, better
Qts0.34 −12%, better
Vas300.8 L +27%, worse
BL17.3 T·m +9%
Xmax7 mm +8%
Sensitivity96 dB −0.6
P.Audio15BM-500B-V3
No current priceFs41 Hz +11%, worse
Qts0.37 −5%
Vas183.4 L −22%, better
BL17.8 T·m +12%, better
Xmax4.8 mm −26%, worse
Sensitivity96.9 dB –
LavoceNBASS15-30
No current priceFs42 Hz +14%, worse
Qts0.36 −7%
Vas143.1 L −39%, better
BL19.2 T·m +21%, better
Xmax6.6 mm –
Sensitivity96.5 dB –
CelestionFTR15-3070E
No current priceFs46 Hz +24%, worse
Qts0.38 –
Vas145.8 L −38%, better
BL17.9 T·m +12%, better
Xmax7.8 mm +19%, better
Sensitivity97.2 dB +0.6
RCFM15P550
No current priceFs45 Hz +22%, worse
Qts0.37 −5%
Vas140 L −41%, better
BL19.8 T·m +25%, better
Xmax7 mm +8%
Sensitivity97 dB –
Oberton15CX
No current priceFs38 Hz +3%
Qts0.35 −10%, better
Vas163.8 L −31%, better
BL18.4 T·m +16%, better
Xmax7 mm +8%
Sensitivity95.9 dB −0.7
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
