Overview
LF DriverDELTA PRO series
Eminence

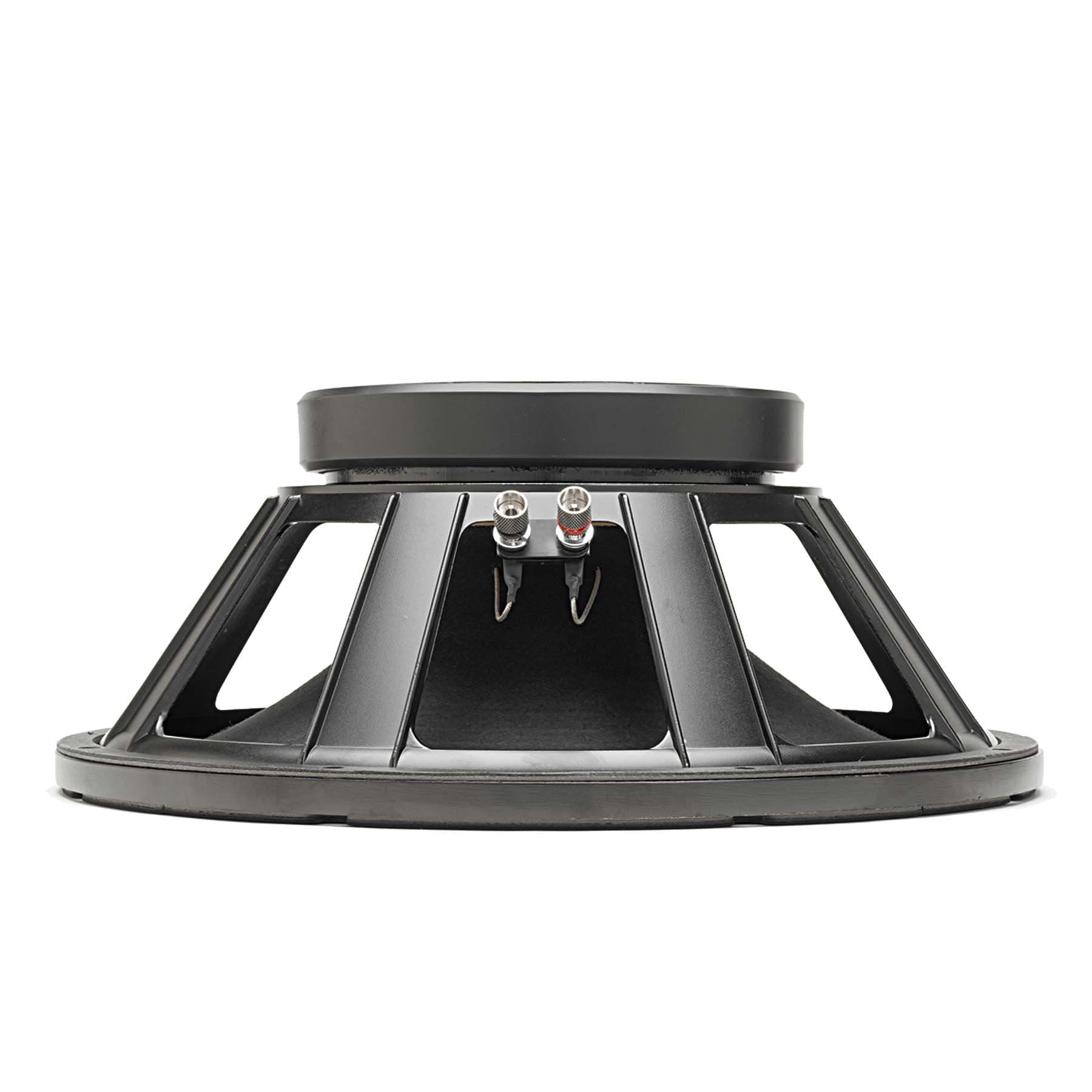

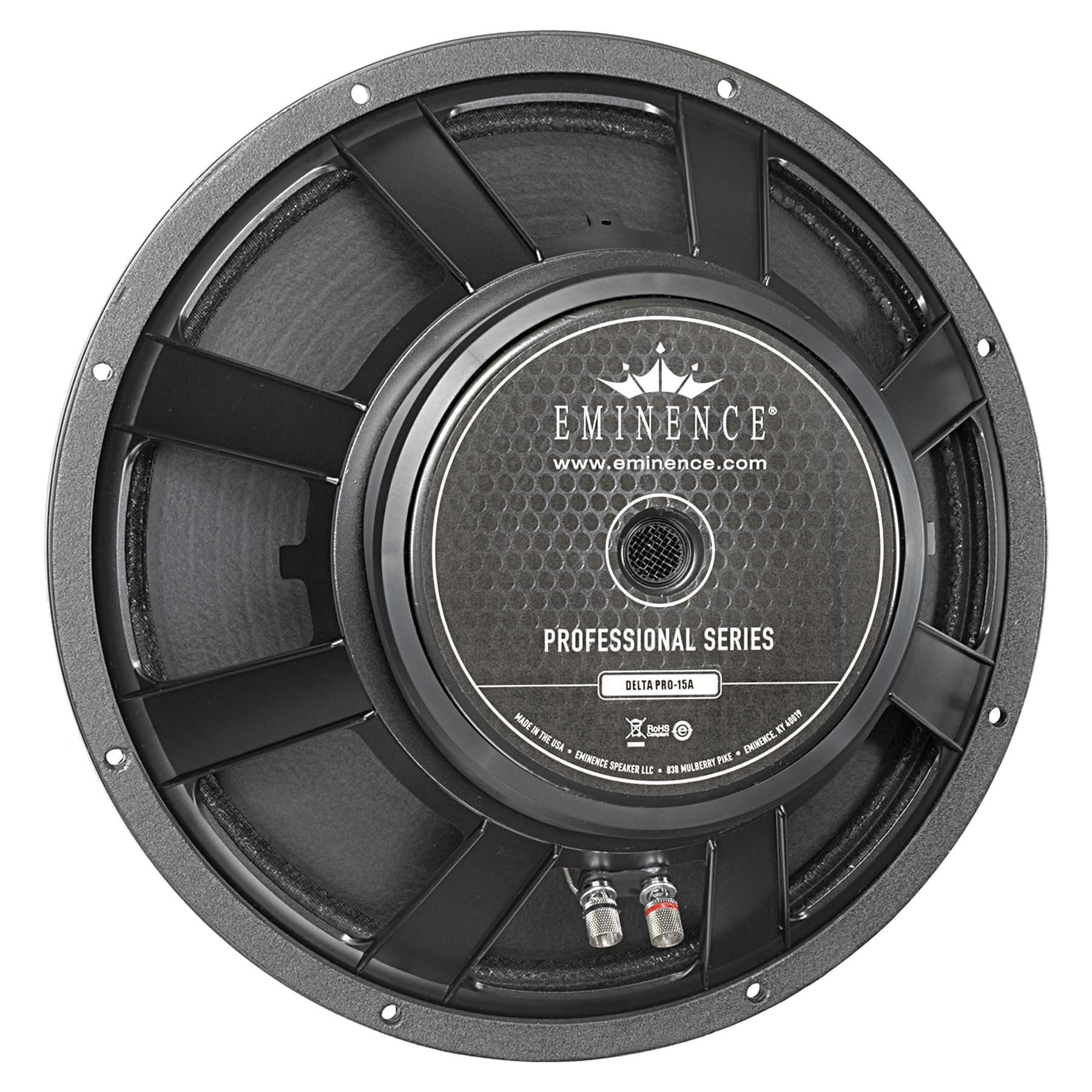

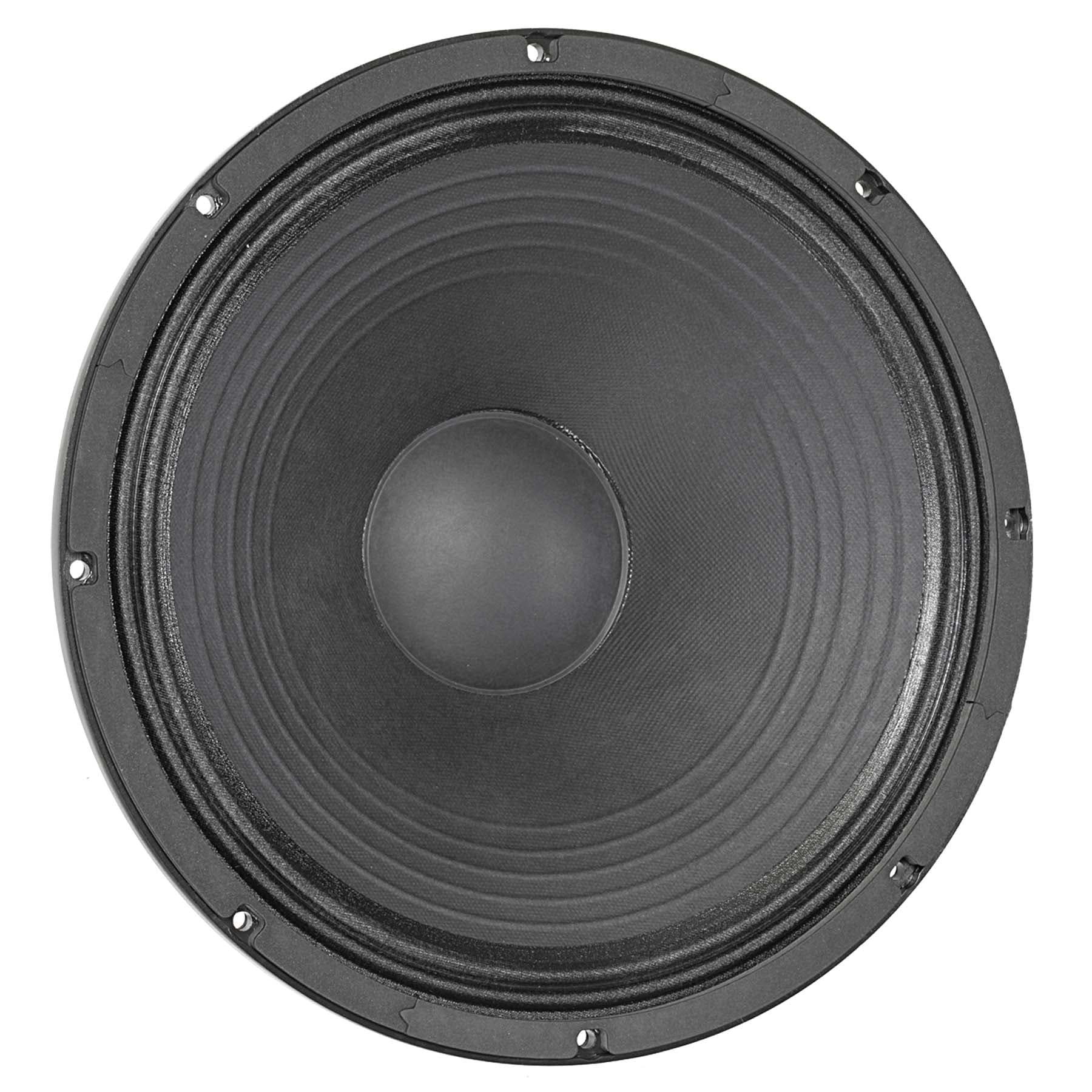

Eminence DELTA PRO 15A
Eminence DELTA PRO 15A is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 42Hz, Qts 0.40, Vas 243.5L, Xmax 4.3mm, sensitivity 98.2dB, plus 368cm³ Vd and 95 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £139.05.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
98.2dB
101.6dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
95
Either alignment
Vd
368cm³
T/S Parameters
Valid
Fs42Hz
Qts0.40
Qes0.44
Qms4.7
Vas243.5L
Re5.7Ω
Le0.83mH
BL14.5Tm
Sd856cm²
Mms61g
Xmax4.3mm
SPL98dB
Power400W
Impedance8Ω
F Low54Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£153.34
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
partsexpress
£139.05
inc VAT·8 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.7kg
Diameter389.1mm
Overall Depth153.9mm
Cutout Diameter355.6mm
Bolt Circle Diameter369.8mm
