- Net volume
- 100L
- Tuning
- 45Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
15-inch LF driver · 400 W
Eighteen Sound 15MB606 8Ω
8 Ω · 45–4800 Hz
No price for delivery to the UK
- Fs
- 43Hz
- Xmax
- 4.5mm
- SPL
- 99dB
- Pe
- 400W
- BL
- 15.1T·m
- Vd
- 383cm³
- Qts
- 0.35
- Vas
- 223L

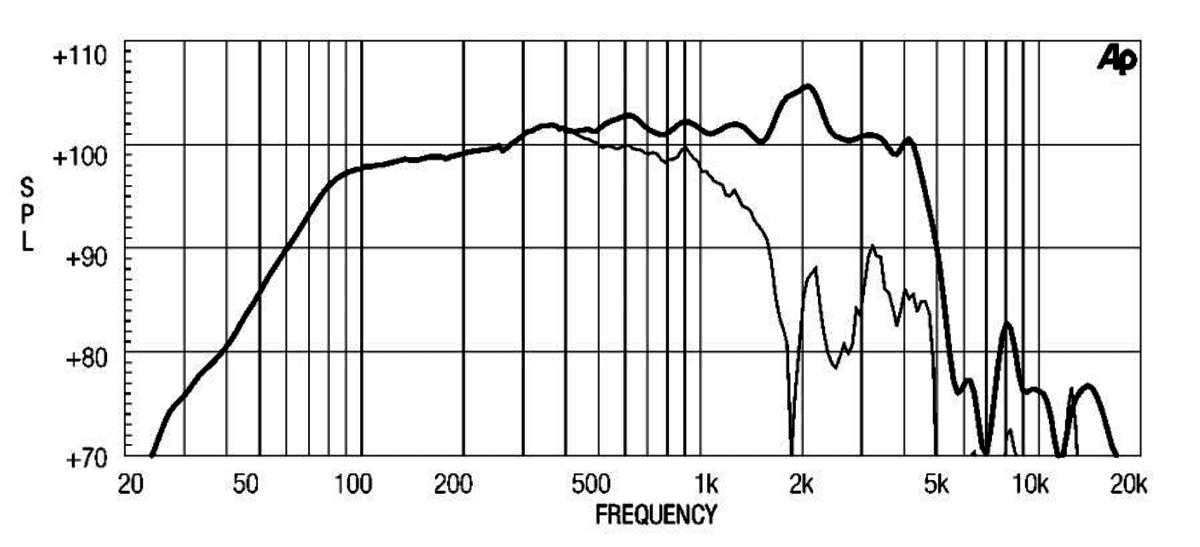

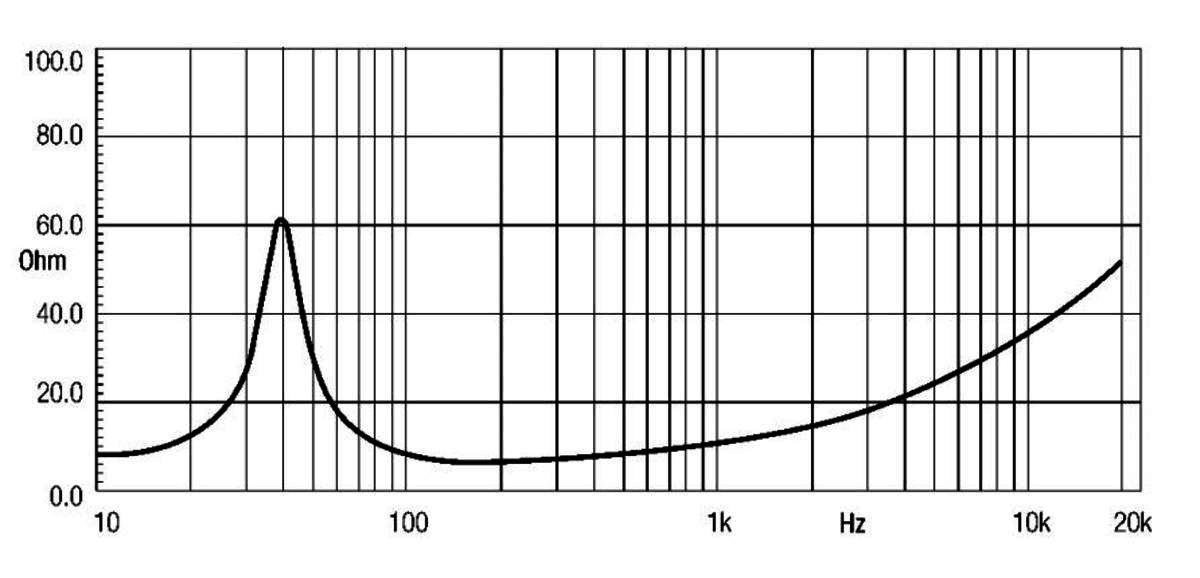

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,138 selected pixels of 1,138
Published graphs
Eighteen Sound 15MB606 is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.35, Vas 223 L, Xmax 4.5 mm, sensitivity 98.8 dB, plus 383 cm³ Vd and 116 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £216.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 43Hz
- Qts
- 0.35
- Qes
- 0.37
- Qms
- 6.2
- Vas
- 223L
- Re
- 5Ω
- Le
- 1.30mH
Motor and cone
- BL
- 15.1T·m
- Sd
- 850cm²
- Mms
- 63g
- Xmax
- 4.5mm
- Vd †
- 383cm³
Power and response
- Sensitivity †
- 98.8dB
- Manufacturer sensitivity
- 101dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Range
- 45–4800Hz
- EBP †
- 116 · Leans vented
Size and mounting
- Diameter
- 387mm
- Cutout
- 353mm
- Bolt circle
- 370mm
- Depth
- 171mm
- Weight
- 6.7kg
Other published values
- Power Program
- 600
Sensitivity shows 98.8 dB, calculated from the T/S values. Eighteen Sound publishes 101.0 dB, 2.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 15″
- BL
- 15.1T·m
- Fs
- 43Hz
- Le
- 1.30mH
- Re
- 5Ω
- Sd
- 850cm²
- Mms
- 63g
- Qes
- 0.37
- Qms
- 6.2
- Qts
- 0.35
- SPL
- 98.8dB
- Vas
- 223L
- Xmax
- 4.5mm
- Power
- 400W
- Impedance
- 8Ω
- Sensitivity
- 101dB
- Low limit
- 45Hz
- Nominal power
- 400W
- Power Program
- 600
- Calculated sensitivity †
- 98.8dB
- High limit
- 4800Hz
- Manufacturer sensitivity
- 101dB
- Weight
- 6.7kg
- Diameter
- 387mm
- Depth
- 171mm
- Cutout
- 353mm
- Bolt circle
- 370mm
02
Designs
What Eighteen Sound suggests for the 15MB606. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 15MB606 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 15MB606. Clear differences are green when better and red when worse.
This driver15MB606
Best price
£216.00
Fs
43 Hz
Qts
0.35
Vas
223 L
BL
15.1 T·m
Xmax
4.5 mm
Sensitivity
98.8 dB
Power
400 W
REDCATT154FIND
£82.98 · 62% less, betterFs38 Hz −12%, better
Qts0.40 +14%, worse
Vas187.2 L −16%, better
BL18.1 T·m +20%, better
Xmax4.5 mm –
Sensitivity95.8 dB −3, worse
EminenceKAPPA-15A
£125.35 · 42% less, betterFs33 Hz −23%, better
Qts0.32 −9%
Vas321.3 L +44%, worse
BL15.7 T·m +4%
Xmax4 mm −11%, worse
Sensitivity97.5 dB −1.3
EminenceKAPPA PRO-15A
£138.03 · 36% less, betterFs47 Hz +9%
Qts0.38 +9%
Vas167.7 L −25%, better
BL16.6 T·m +10%
Xmax3.2 mm −29%, worse
Sensitivity98.4 dB –
EminenceDELTA PRO 15A
£140.27 · 35% less, betterFs42 Hz –
Qts0.40 +14%, worse
Vas243.5 L +9%
BL14.5 T·m −4%
Xmax4.3 mm −4%
Sensitivity98.2 dB −0.6
Beyma15WRS400
£151.05 · 30% less, betterFs36 Hz −16%, better
Qts0.33 −6%
Vas236 L +6%
BL18.2 T·m +21%, better
Xmax6.3 mm +40%, better
Sensitivity97 dB −1.8
REDCATT152FIND-2
£159.68 · 26% less, betterFs44 Hz –
Qts0.37 +6%
Vas128.5 L −42%, better
BL18.3 T·m +21%, better
Xmax4.5 mm –
Sensitivity96.6 dB −2.2, worse
FaitalPRO15PR450
£165.97 · 23% less, betterFs35 Hz −19%, better
Qts0.35 –
Vas235.6 L +6%
BL16.6 T·m +10%
Xmax6 mm +33%, better
Sensitivity96.4 dB −2.4, worse
CelestionFTR15-3070C
£166.00 · 23% less, betterFs41 Hz −4%
Qts0.38 +9%
Vas187.6 L −16%, better
BL17.3 T·m +15%, better
Xmax5.5 mm +22%, better
Sensitivity96.9 dB −1.9
FaitalPRO15PR400
£166.81 · 23% less, betterFs35 Hz −19%, better
Qts0.32 −9%
Vas248.9 L +12%, worse
BL16.7 T·m +11%, better
Xmax5.8 mm +28%, better
Sensitivity97 dB −1.8
EminenceOMEGA PRO-15A
£167.88 · 22% less, betterFs33 Hz −23%, better
Qts0.32 −9%
Vas258.5 L +16%, worse
BL17.5 T·m +16%, better
Xmax4.8 mm +7%
Sensitivity96.5 dB −2.3, worse
REDCATT15FPM
£184.37 · 15% less, betterFs41 Hz −5%
Qts0.36 –
Vas134.9 L −40%, better
BL21.3 T·m +41%, better
Xmax4.5 mm –
Sensitivity95.9 dB −2.9, worse
Eighteen Sound15W750
£186.09 · 14% less, betterFs39 Hz −9%
Qts0.37 +6%
Vas218 L –
BL17.6 T·m +17%, better
Xmax8 mm +78%, better
Sensitivity97.2 dB −1.6
BMS15N620
£216.43 · Same priceFs41 Hz −5%
Qts0.35 –
Vas154 L −31%, better
BL20.6 T·m +36%, better
Xmax5.5 mm +22%, better
Sensitivity96.6 dB −2.2, worse
Eighteen Sound15ND830
£239.90 · 11% more, worseFs39 Hz −9%
Qts0.32 −9%
Vas213 L −4%
BL18 T·m +19%, better
Xmax6.5 mm +44%, better
Sensitivity97.6 dB −1.2
Beyma15CXA400ND
£402.31 · 86% more, worseFs40 Hz −7%
Qts0.36 –
Vas196 L −12%, better
BL19 T·m +26%, better
Xmax6 mm +33%, better
Sensitivity97.1 dB −1.7
P.Audio15BM-500B-V3
No current priceFs41 Hz −5%
Qts0.37 +6%
Vas183.4 L −18%, better
BL17.8 T·m +18%, better
Xmax4.8 mm +7%
Sensitivity96.9 dB −1.9
Oberton15H4CX72
No current priceFs56 Hz +31%, worse
Qts0.37 +5%
Vas113.1 L −49%, better
BL18.2 T·m +21%, better
Xmax4.5 mm –
Sensitivity99.3 dB +0.5
P.Audio15FT-76MB
No current priceFs42 Hz –
Qts0.35 –
Vas150.9 L −32%, better
BL20.4 T·m +35%, better
Xmax4.7 mm +4%
Sensitivity96.8 dB −2, worse
No current price
Fs38 Hz −12%, better
Qts0.35 –
Vas201 L −10%
BL17.5 T·m +16%, better
Xmax6 mm +33%, better
Sensitivity96.5 dB −2.3, worse
P.AudioE15-300S-V2
No current priceFs44 Hz –
Qts0.36 –
Vas156.2 L −30%, better
BL20.1 T·m +33%, better
Xmax4.3 mm −6%
Sensitivity97.5 dB −1.3
CelestionTF1530E
No current priceFs44 Hz –
Qts0.33 −6%
Vas191.6 L −14%, better
BL17.0 T·m +13%, better
Xmax6.5 mm +44%, better
Sensitivity98.3 dB −0.5
Sica15 S 3 PL
No current priceFs33 Hz −23%, better
Qts0.38 +9%
Vas230 L +3%
BL17.1 T·m +13%, better
Xmax8 mm +78%, better
Sensitivity95.3 dB −3.5, worse
No current price
Fs37 Hz −14%, better
Qts0.39 +11%, worse
Vas236 L +6%
BL15.9 T·m +5%
Xmax6.5 mm +44%, better
Sensitivity96.6 dB −2.2, worse
MonacorSP-15A/402PA
No current priceFs36 Hz −16%, better
Qts0.31 −11%, better
Vas235 L +5%
BL19.9 T·m +32%, better
Xmax5 mm +11%, better
Sensitivity97.2 dB −1.6
Oberton15CX
No current priceFs38 Hz −11%, better
Qts0.35 –
Vas163.8 L −27%, better
BL18.4 T·m +22%, better
Xmax7 mm +56%, better
Sensitivity95.9 dB −2.9, worse
Supravox380-2000 EXC LC
No current priceFs31 Hz −28%, better
Qts0.34 –
Vas300.8 L +35%, worse
BL17.3 T·m +14%, better
Xmax7 mm +56%, better
Sensitivity96 dB −2.8, worse
Oberton15XL400
No current priceFs49 Hz +13%, worse
Qts0.34 −4%
Vas140 L −37%, better
BL18.9 T·m +25%, better
Xmax5.3 mm +17%, better
Sensitivity98.7 dB –
P.Audio15NX-76MB
No current priceFs40 Hz −7%
Qts0.34 –
Vas115.6 L −48%, better
BL21.4 T·m +42%, better
Xmax4.8 mm +6%
Sensitivity95.3 dB −3.5, worse
CelestionTF1530SL
No current priceFs46 Hz +7%
Qts0.39 +11%, worse
Vas140.1 L −37%, better
BL17.0 T·m +13%, better
Xmax4 mm −11%, worse
Sensitivity96.9 dB −1.9
Oberton15NMB35
No current priceFs39 Hz −9%
Qts0.34 −4%
Vas177.5 L −20%, better
BL18.5 T·m +23%, better
Xmax6.8 mm +50%, better
Sensitivity96.8 dB −2, worse
