Overview
LF DriverSP series
Monacor
Monacor SP-15A/402PA
Monacor SP-15A/402PA is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 36Hz, Qts 0.31, Vas 235L, Xmax 5mm, sensitivity 97.2dB, plus 441cm³ Vd and 109 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
97.2dB
100.0dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
109
Vented alignment
Vd
441cm³
T/S Parameters
Valid
Fs36Hz
Qts0.31
Qes0.33
Qms7.5
Vas235.0L
Re6.5Ω
Le0.90mH
BL19.9Tm
Sd881cm²
Mms87g
Xmax5.0mm
SPL97dB
Power400W
Impedance8Ω
F Low3Hz
F High3000Hz
Voice Coil100mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

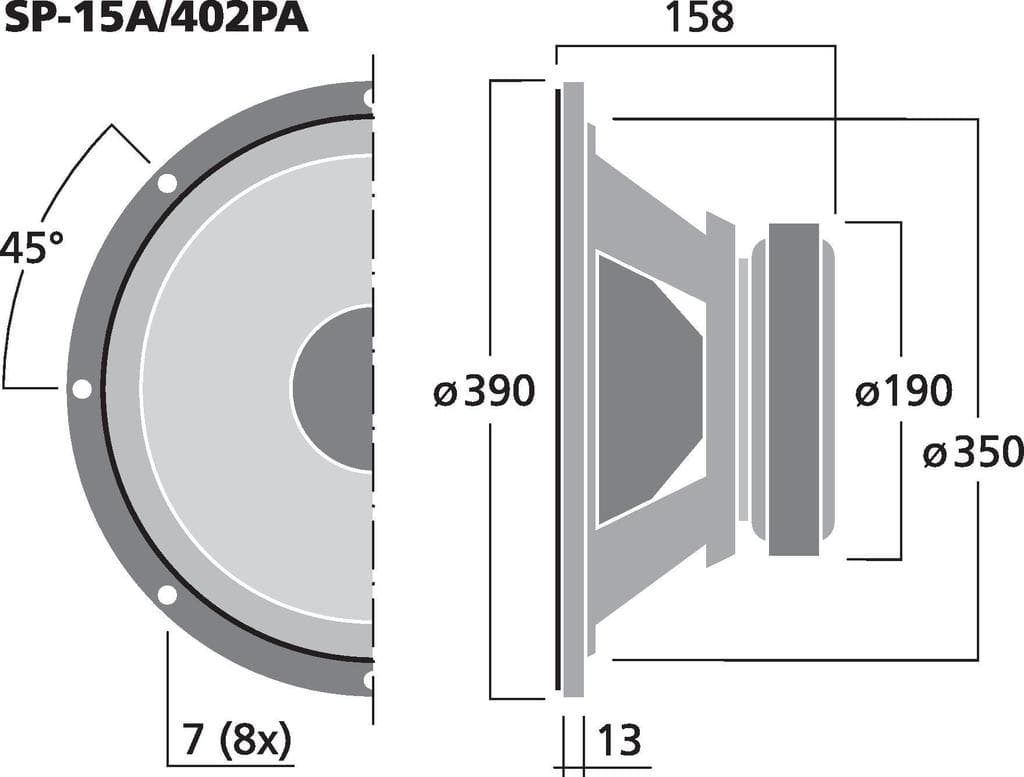

Dimensions & Physical
Weight7.7kg
Diameter390.0mm
Overall Depth158.0mm
Cutout Diameter350.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SP-15A/402PA
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
£166.41
Eminence
OMEGA PRO-15A
15"
Xmax4.8mm-4%
Qts0.32+3%
BL17.5Tm-12%
Vas258.5L+10%
Qes0.330%
85%
Similarity
£210.00
Celestion
NTR15-3018E
15"
Xmax5mm0%
Qts0.28-9%
BL21.1Tm+6%
Vas207.3L-12%
Qes0.3-9%
83%
Similarity
Beyma
115XA38ND8
15"
Xmax6mm+20%
Qts0.3-3%
BL20.4Tm+3%
Vas238L+1%
Qes0.31-6%
83%
Similarity
£170.21
B&C
15CLA76
15"
Xmax5.5mm+10%
Qts0.3-3%
BL19.8Tm-1%
Vas176L-25%
Qes0.31-6%
79%
Similarity
Sica
15 FE 3 CP
15"
Xmax5.5mm+10%
Qts0.33+6%
BL19.1Tm-4%
Vas170.4L-27%
Qes0.34+3%
79%
Similarity
Beyma
115WR408
15"
Xmax6.3mm+26%
Qts0.3-3%
BL19.2Tm-4%
Vas236L0%
Qes0.31-6%
79%
Similarity
£191.00
FaitalPRO
15PR400
15"
Xmax5.8mm+15%
Qts0.32+3%
BL16.7Tm-16%
Vas248.9L+6%
Qes0.34+3%
78%
Similarity
£173.41
Eighteen Sound
15MB700
15"
Xmax5.5mm+10%
Qts0.29-6%
BL17.6Tm-12%
Vas202L-14%
Qes0.31-6%
76%
Similarity
£181.89
Eighteen Sound
15W700
15"
Xmax6.5mm+30%
Qts0.3-3%
BL18.4Tm-8%
Vas217L-8%
Qes0.330%
75%
Similarity

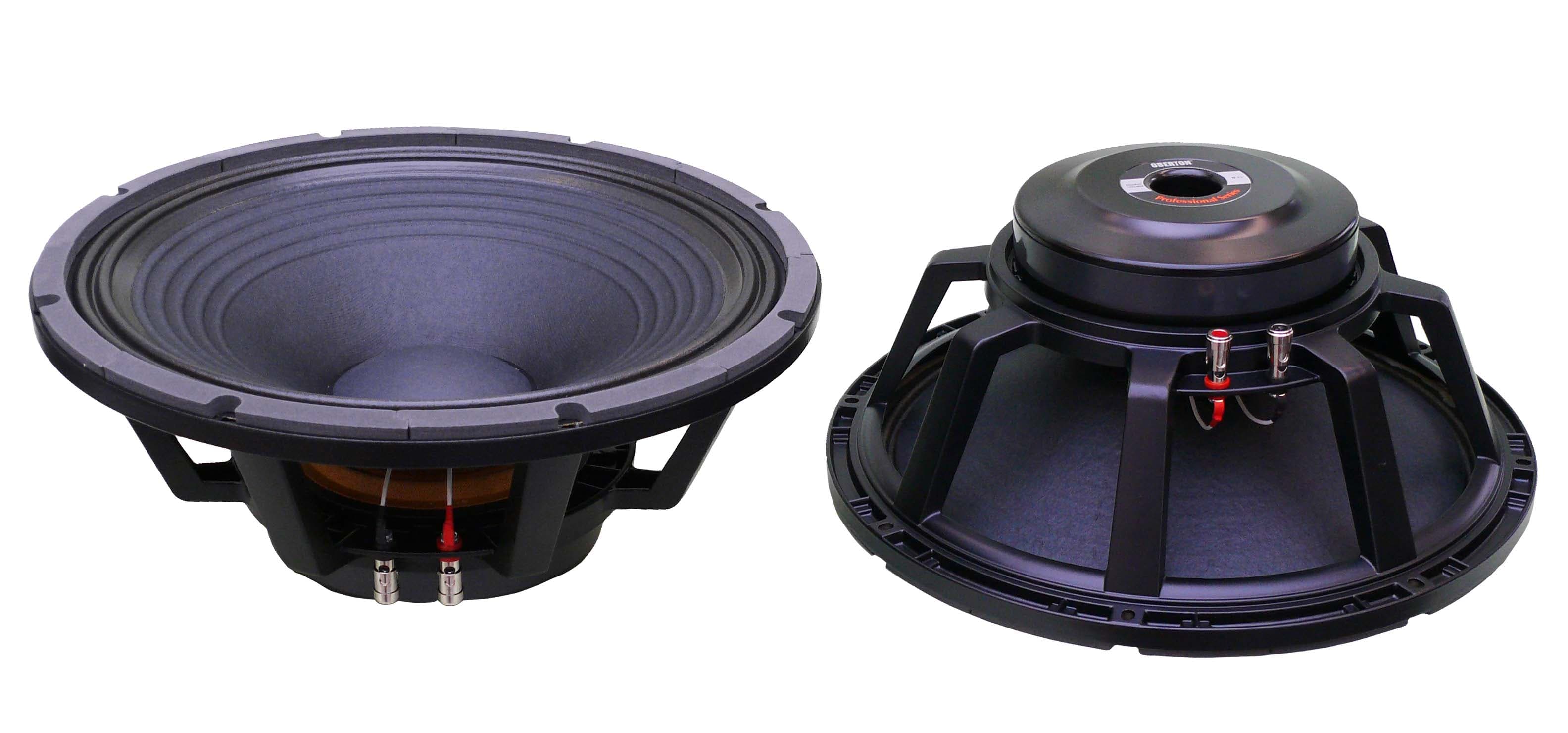

Oberton
