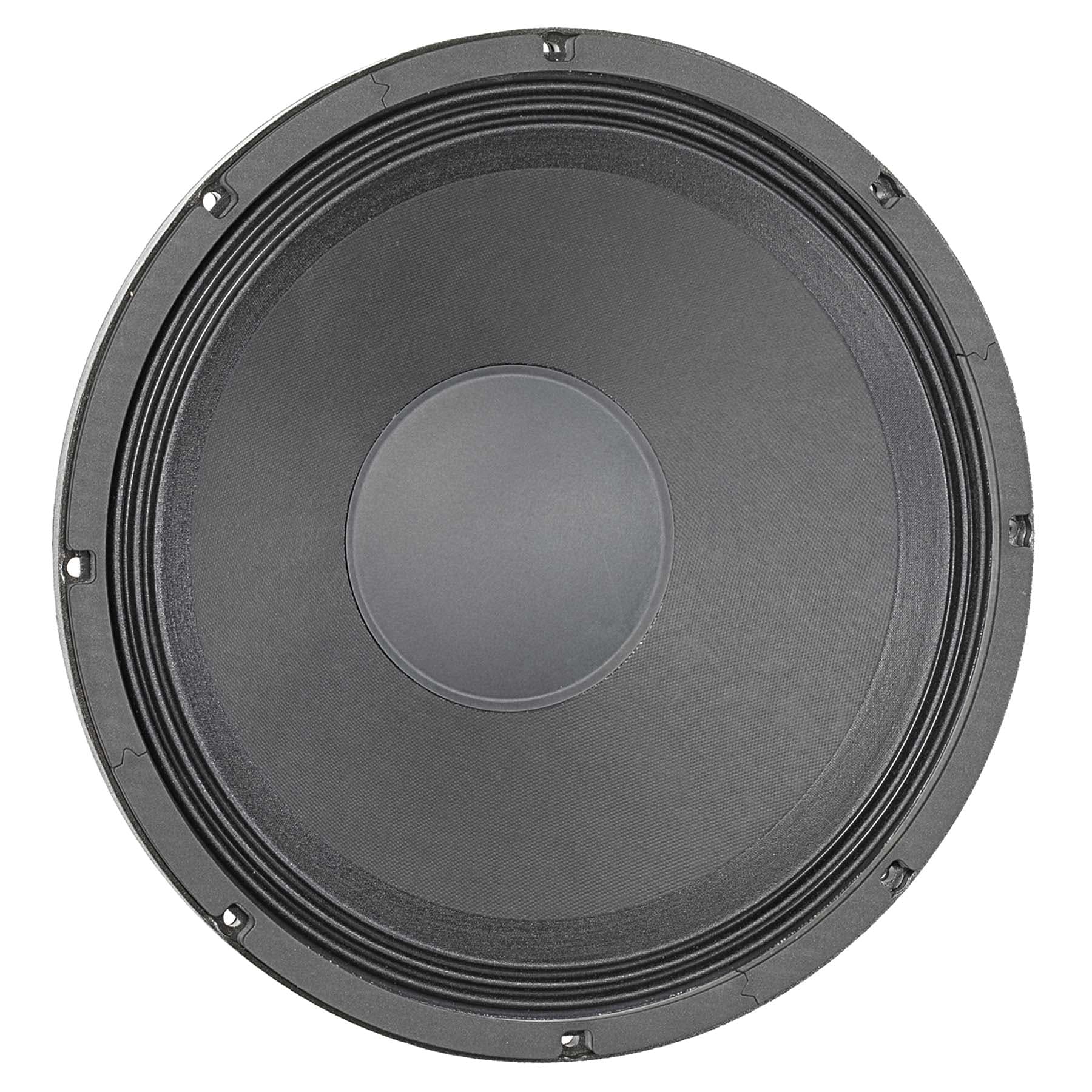

Eminence KAPPA PRO-15LF 8Ω
8 Ω · 38–1800 Hz
£166.34
SteadyBlue Aran · 1 in stock · All 4 offers
- Fs
- 35Hz
- Xmax
- 6.7mm
- SPL
- 96dB
- Pe
- 600W
- BL
- 21.6T·m
- Vd
- 574cm³
- Qts
- 0.30
- Vas
- 199L
Eminence KAPPA PRO-15LF is a 15-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.30, Vas 198.8 L, Xmax 6.7 mm, sensitivity 96.3 dB, plus 574 cm³ Vd and 109 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £166.34.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.30
- Qes
- 0.32
- Qms
- 7.3
- Vas
- 198.8L
- Re
- 6.5Ω
- Le
- 1.40mH
Motor and cone
- BL
- 21.6T·m
- Sd
- 856cm²
- Mms
- 102g
- Xmax
- 6.7mm
- Vd †
- 574cm³
Power and response
- Sensitivity †
- 96.3dB
- Manufacturer sensitivity
- 97.8dB
- Power
- 600W
- Impedance
- 8Ω
- Range
- 38–1800Hz
- EBP †
- 109 · Leans vented
Size and mounting
- Diameter
- 386.3mm
- Cutout
- 355.6mm
- Bolt circle
- 369.8mm
- Depth
- 166.9mm
- Weight
- 10.1kg
Other published values
- Cms
- 0.20mm/N
- Xmech
- 18
- Power Program
- 1200
Sensitivity shows 96.3 dB, calculated from the T/S values. Eminence publishes 97.8 dB, 1.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 15″
- BL
- 21.6T·m
- Fs
- 35Hz
- Le
- 1.40mH
- Re
- 6.5Ω
- Sd
- 856cm²
- Cms
- 0.20mm/N
- Mms
- 102g
- Qes
- 0.32
- Qms
- 7.3
- Qts
- 0.30
- SPL
- 96.3dB
- Vas
- 198.8L
- Xmax
- 6.7mm
- Xmech
- 18
- Power
- 600W
- Impedance
- 8Ω
- Sensitivity
- 97.8dB
- Low limit
- 38Hz
- Power Program
- 1200
- Calculated sensitivity †
- 96.3dB
- High limit
- 1800Hz
- Manufacturer sensitivity
- 97.8dB
- Weight
- 10.1kg
- Diameter
- 386.3mm
- Depth
- 166.9mm
- Cutout
- 355.6mm
- Bolt circle
- 369.8mm
02
Compare
Same-size drivers, compared with the KAPPA PRO-15LF. Clear differences are green when better and red when worse.
This driverKAPPA PRO-15LF
Best price
£166.34
Fs
35 Hz
Qts
0.30
Vas
198.8 L
BL
21.6 T·m
Xmax
6.7 mm
Sensitivity
96.3 dB
Power
600 W
Beyma15WR400
£165.43 · Same priceFs36 Hz –
Qts0.30 –
Vas236 L +19%, worse
BL19.2 T·m −11%, worse
Xmax6.3 mm −6%
Sensitivity97.5 dB +1.2
B&C15CLA76
£170.21 · 2% moreFs40 Hz +14%, worse
Qts0.30 –
Vas176 L −11%, better
BL19.8 T·m −8%
Xmax5.5 mm −18%, worse
Sensitivity97.6 dB +1.3
Eighteen Sound15MB700
£174.30 · 5% moreFs42 Hz +20%, worse
Qts0.29 −3%
Vas202 L –
BL17.6 T·m −19%, worse
Xmax5.5 mm −18%, worse
Sensitivity98.9 dB +2.6, better
Eighteen Sound15W700
£177.51 · 7% more, worseFs38 Hz +9%
Qts0.30 –
Vas217 L +9%
BL18.4 T·m −15%, worse
Xmax6.5 mm –
Sensitivity97.6 dB +1.3
FaitalPRO15FH500
£208.49 · 25% more, worseFs35 Hz –
Qts0.31 +3%
Vas199.2 L –
BL19.2 T·m −11%, worse
Xmax9.3 mm +38%, better
Sensitivity96.3 dB –
Beyma15MC700ND
£226.76 · 36% more, worseFs49 Hz +40%, worse
Qts0.31 +3%
Vas105 L −47%, better
BL22.6 T·m +5%
Xmax7 mm +4%
Sensitivity97.6 dB +1.3
Eighteen Sound15ND830
£239.90 · 44% more, worseFs39 Hz +11%, worse
Qts0.32 +7%
Vas213 L +7%
BL18 T·m −17%, worse
Xmax6.5 mm –
Sensitivity97.6 dB +1.3
Eighteen Sound15NW530
£243.16 · 46% more, worseFs43 Hz +23%, worse
Qts0.33 +10%, worse
Vas154 L −23%, better
BL22 T·m –
Xmax7.5 mm +12%, better
Sensitivity97.5 dB +1.2
FaitalPRO15FX560
£245.00 · 47% more, worseFs38 Hz +9%
Qts0.30 –
Vas159 L −20%, better
BL21.5 T·m –
Xmax9.4 mm +41%, better
Sensitivity96.5 dB –
Eighteen Sound15MB1000
£259.50 · 56% more, worseFs48 Hz +37%, worse
Qts0.31 +3%
Vas132.5 L −33%, better
BL21 T·m –
Xmax6 mm −10%, worse
Sensitivity98.6 dB +2.3, better
Sica15 K 3 PL
£272.13 · 64% more, worseFs40 Hz +14%, worse
Qts0.27 −10%
Vas166.1 L −16%, better
BL21.4 T·m –
Xmax6.5 mm –
Sensitivity97.8 dB +1.5
Eighteen Sound15NCX910
£497.18 · 199% more, worseFs55 Hz +57%, worse
Qts0.33 +10%, worse
Vas107 L −46%, better
BL21 T·m –
Xmax7 mm +4%
Sensitivity99.2 dB +2.9, better
Eighteen Sound15W600
No current priceFs38 Hz +9%
Qts0.29 −3%
Vas183 L −8%
BL20.5 T·m −5%
Xmax6.5 mm –
Sensitivity97.3 dB +1
No photo
PHL Audio5021M
No current priceFs32 Hz −9%
Qts0.30 –
Vas169 L −15%, better
BL24 T·m +11%, better
Xmax7 mm +4%
Sensitivity94.4 dB −1.9
Eighteen Sound15ND730
No current priceFs44 Hz +26%, worse
Qts0.29 −3%
Vas156 L −22%, better
BL21 T·m –
Xmax6.5 mm –
Sensitivity98.5 dB +2.2, better
FaneCOLOSSUS 15SB
No current priceFs41 Hz +17%, worse
Qts0.29 −3%
Vas151 L −24%, better
BL22.5 T·m +4%
Xmax6.5 mm –
Sensitivity97.4 dB +1.1
Beyma15XA38ND
No current priceFs38 Hz +9%
Qts0.30 –
Vas238 L +20%, worse
BL20.4 T·m −6%
Xmax6 mm −10%, worse
Sensitivity98.3 dB +2, better
Eighteen Sound15NMB420
No current priceFs42 Hz +20%, worse
Qts0.29 −3%
Vas225 L +13%, worse
BL19 T·m −12%, worse
Xmax6.5 mm –
Sensitivity99.5 dB +3.2, better
Oberton15B450 / 15B450A / 15B450A2
No current priceFs45 Hz +29%, worse
Qts0.29 −5%
Vas146.8 L −26%, better
BL20.4 T·m −5%
Xmax6.8 mm –
Sensitivity98.6 dB +2.3, better
FaneCOLOSSUS 15XB
No current priceFs38 Hz +9%
Qts0.32 +7%
Vas168 L −15%, better
BL22.1 T·m –
Xmax7.5 mm +12%, better
Sensitivity96.4 dB –
Oberton15HCX
No current priceFs41 Hz +16%, worse
Qts0.30 –
Vas205.5 L +3%
BL17.1 T·m −21%, worse
Xmax7.8 mm +16%, better
Sensitivity98.5 dB +2.2, better
RCFMB15X351
No current priceFs46 Hz +31%, worse
Qts0.31 +3%
Vas114 L −43%, better
BL22.8 T·m +6%
Xmax7 mm +4%
Sensitivity97.3 dB +1
Eighteen Sound15NTLW2500
No current priceFs45 Hz +29%, worse
Qts0.30 –
Vas143 L −28%, better
BL21.2 T·m –
Xmax8 mm +19%, better
Sensitivity98.3 dB +2, better
CelestionFTX1530
No current priceFs43 Hz +21%, worse
Qts0.28 −8%
Vas172.1 L −13%, better
BL20.2 T·m −7%
Xmax6 mm −10%, worse
Sensitivity98.5 dB +2.2, better
Oberton15NMB35
No current priceFs39 Hz +11%, worse
Qts0.34 +12%, worse
Vas177.5 L −11%, better
BL18.5 T·m −14%, worse
Xmax6.8 mm –
Sensitivity96.8 dB +0.5
CelestionNTR15-3018E
No current priceFs35 Hz –
Qts0.28 −6%
Vas207.3 L +4%
BL21.1 T·m –
Xmax5 mm −25%, worse
Sensitivity96.7 dB –
Oberton15NMB500
No current priceFs45 Hz +28%, worse
Qts0.29 –
Vas128.0 L −36%, better
BL21.3 T·m –
Xmax7.8 mm +16%, better
Sensitivity97.9 dB +1.6
CelestionTF1530E
No current priceFs44 Hz +25%, worse
Qts0.33 +9%
Vas191.6 L −4%
BL17.0 T·m −21%, worse
Xmax6.5 mm –
Sensitivity98.3 dB +2, better
Eighteen Sound15NCX910BE
No current priceFs55 Hz +57%, worse
Qts0.33 +10%, worse
Vas107 L −46%, better
BL21 T·m –
Xmax7 mm +4%
Sensitivity99.2 dB +2.9, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £166.34, the lowest price | 1 in stock | Visit shop at Blue Aran | |
Lean Audio | £182.00 | 9.4% above the lowest price | Out of stock | Visit shop at Lean Audio |
Lean Business | £182.11 | 9.5% above the lowest price | Out of stock | Visit shop at Lean Business |
Best price over time
Tracked since 1 Apr
Recent changes
- 7 AugBlue Aran£176.65 → £166.34Down 5.8% from £176.65
