LF DriverTF1530 series
Celestion

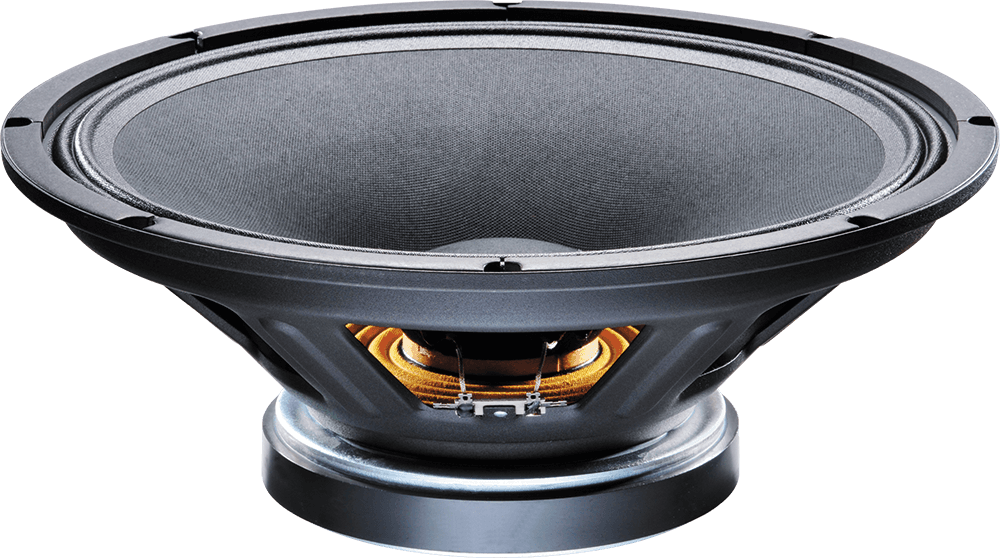

Celestion TF1530E
Celestion TF1530E is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 44Hz, Qts 0.33, Vas 191.6L, Xmax 6.5mm, sensitivity 98.3dB, plus 556cm³ Vd and 117 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £125.00.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
98.3dB
EBP
117
Vented alignment
Vd
556cm³

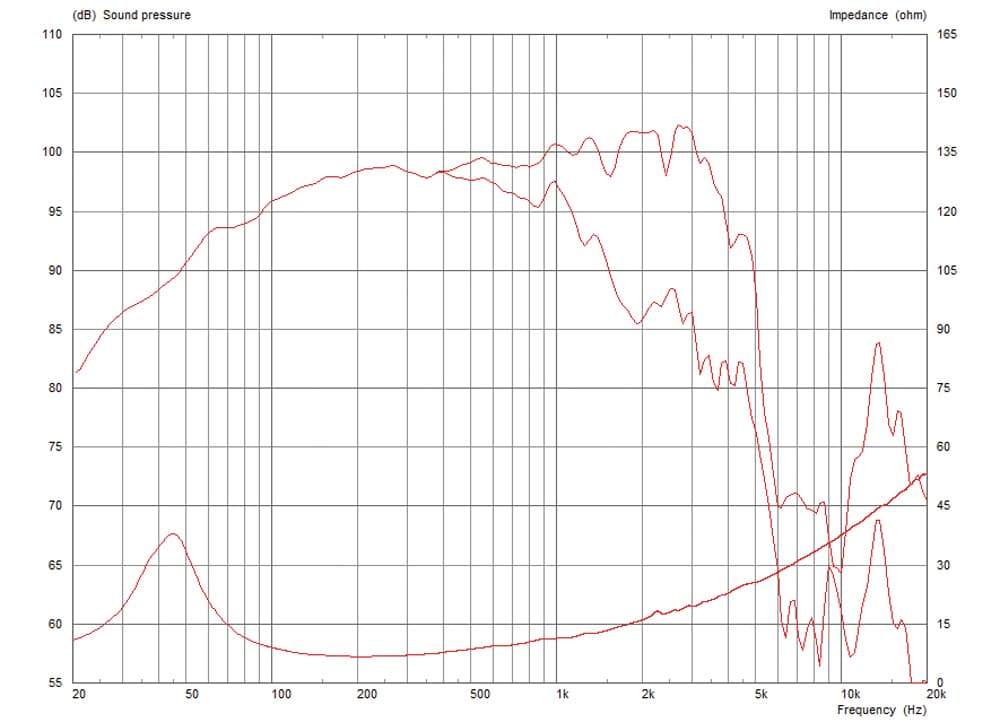

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence207 selected pixels of 380
T/S Parameters
Valid
Fs44Hz
Qts0.33
Qes0.37
Qms2.8
Vas191.6L
Re5.5Ω
Le0.79mH
BL17.0Tm
Sd855cm²
Mms72g
Xmax6.5mm
SPL98dB
Power400W
Impedance8Ω
Voice Coil75mm
Pricing & availability
Price definitionsPrice movement
Best current price
£125.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.5kg
Diameter385.0mm
Overall Depth161.0mm
Cutout Diameter352.0mm
Bolt Circle Diameter369.0mm
