LF Driver
Eighteen Sound
Eighteen Sound 15MB700
Eighteen Sound 15MB700 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 42Hz, Qts 0.29, Vas 202L, Xmax 5.5mm, sensitivity 98.9dB, plus 468cm³ Vd and 135 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £173.41.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
98.9dB
103.0dBmanufacturer; using T/S-derived value (4.1dB delta).
EBP
135
Vented alignment
Vd
468cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response189 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

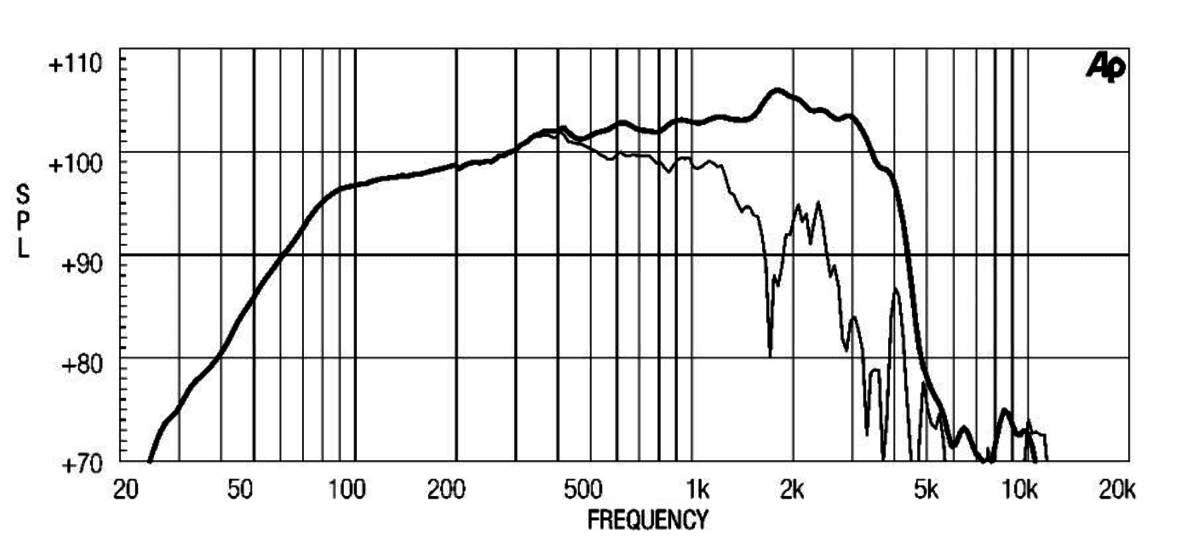

frequency response
Frequency response
189 plotted pointsMedium confidence2,506 selected pixels of 2,970 - Trace datasheet-response-trace-poc/v1

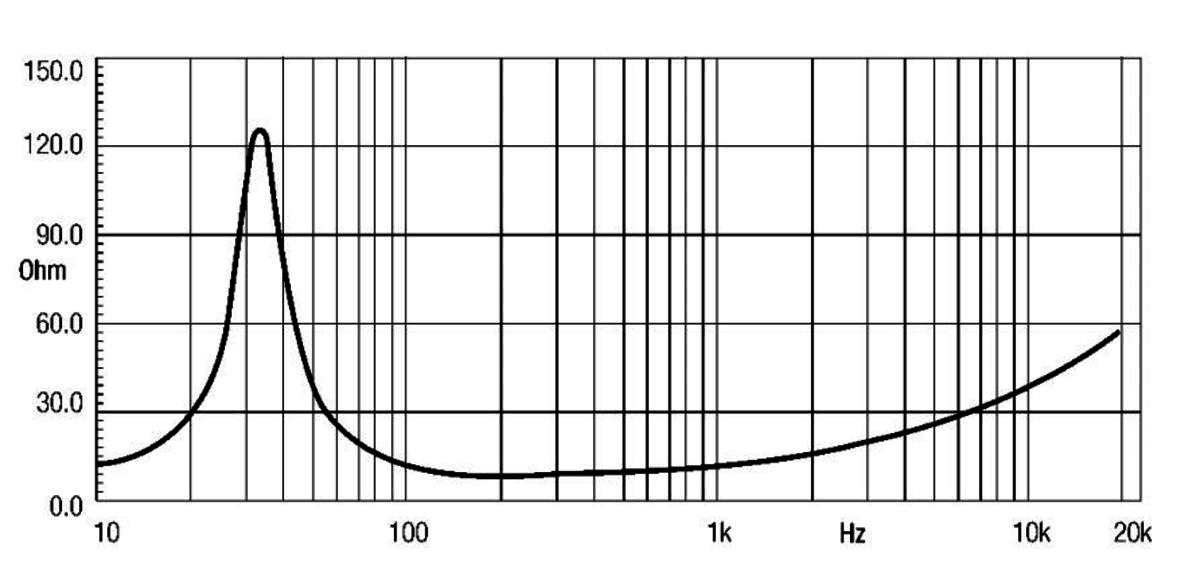

impedance
Impedance response
240 plotted pointsMedium confidence7,648 selected pixels of 8,197
T/S Parameters
Valid
Fs42Hz
Qts0.29
Qes0.31
Qms4.6
Vas202.0L
Re5.0Ω
Le1.20mH
BL17.6Tm
Sd850cm²
Mms73g
Xmax5.5mm
SPL99dB
Power400W
Power Nominal400W
Impedance8Ω
F Low45Hz
F High4300Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£173.41
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.3kg
Diameter387.0mm
Overall Depth167.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
