Overview
LF Driver15L series
Oberton
Oberton 15L400
Oberton 15L400 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 43Hz, Qts 0.29, Vas 229.9L, Xmax 3.3mm, sensitivity 100dB, plus 270cm³ Vd and 147 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
100.0dB
200.0dBmanufacturer; using T/S-derived value (100.0dB delta).
EBP
147
Vented alignment
Vd
270cm³
T/S Parameters
Valid
Fs43Hz
Qts0.29
Qes0.29
Qms11.6
Vas229.9L
Re5.5Ω
Le0.62mH
BL16.9Tm
Sd830cm²
Mms57g
Xmax3.3mm
SPL100dB
Power400W
Impedance8Ω
Min Impedance6.2Ω
F Low45Hz
F High4000Hz
Voice Coil64mm
Flux Density1.35T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

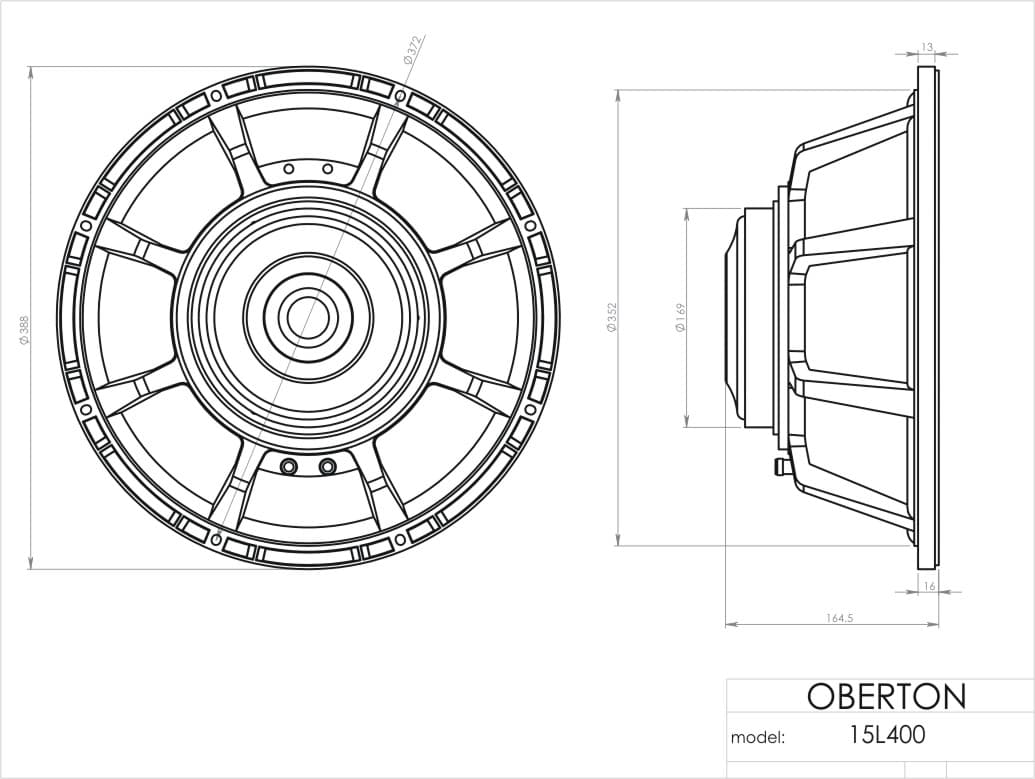

Dimensions & Physical
Weight7.3kg
Diameter388.0mm
Overall Depth164.5mm
Cutout Diameter352.0mm
Bolt Circle Diameter372.0mm
