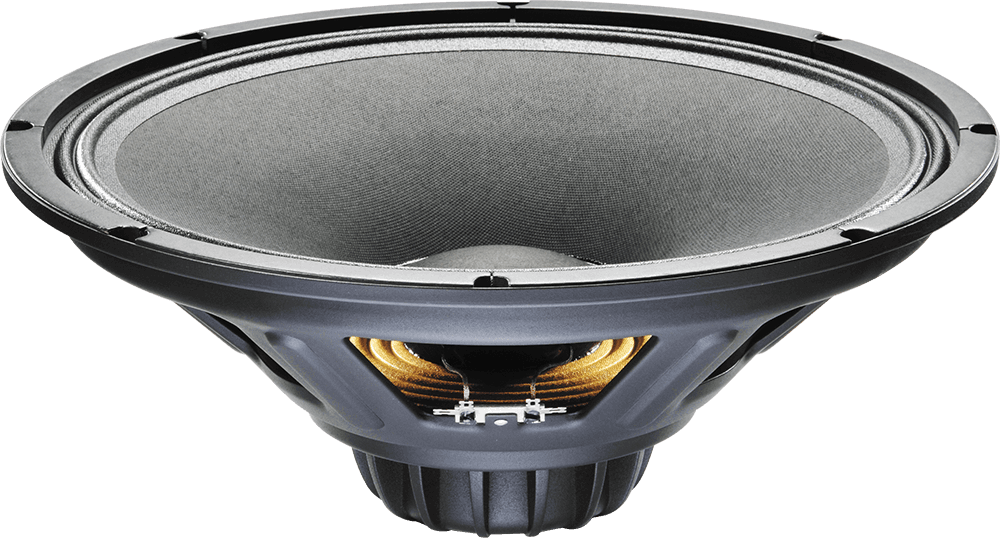

15-inch LF driver · TN1530 series · 75 mm voice coil · 300 W
Celestion TN1530 8Ω
8 Ω · 40–3000 Hz
No current price
- Fs
- 43Hz
- Xmax
- 3.8mm
- SPL
- 97dB
- Pe
- 300W
- BL
- 19.3T·m
- Vd
- 321cm³
- Qts
- 0.32
- Vas
- 157L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

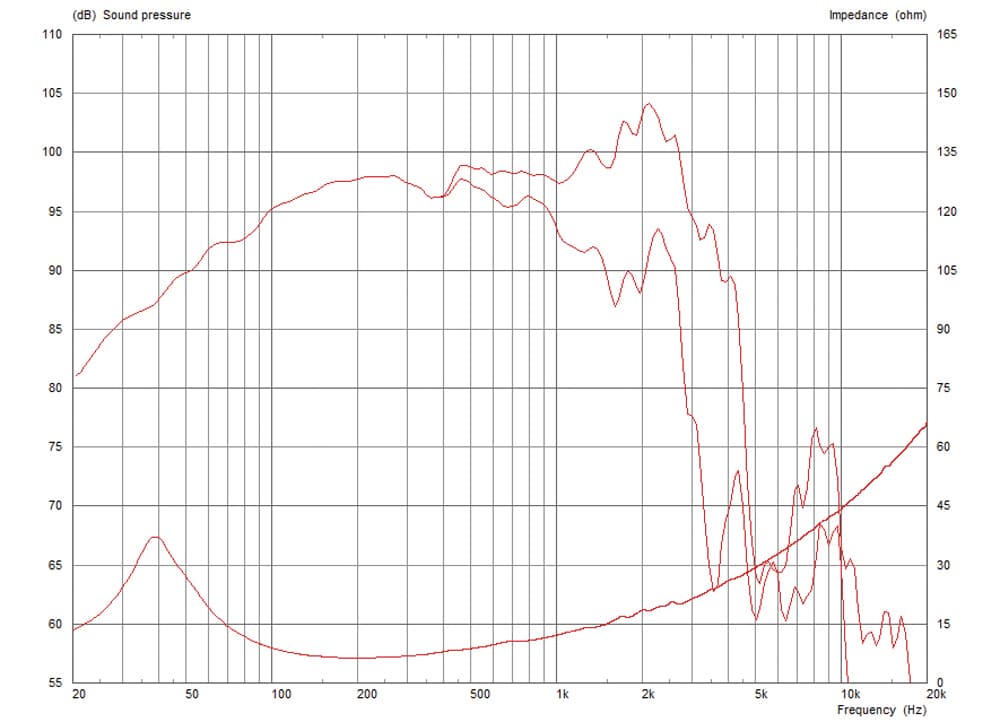

LF frequency response
Frequency response
137 plotted pointsMedium confidence212 selected pixels of 378
Published graphs
Celestion TN1530 is a 15-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.32, Vas 156.6 L, Xmax 3.8 mm, sensitivity 97.3 dB, plus 321 cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 43Hz
- Qts
- 0.32
- Qes
- 0.36
- Qms
- 2.6
- Vas
- 156.6L
- Re
- 5.4Ω
- Le
- 1.11mH
Motor and cone
- BL
- 19.3T·m
- Sd
- 855cm²
- Mms
- 93g
- Xmax
- 3.8mm
- Vd †
- 321cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 97.3dB
- Manufacturer sensitivity
- 98dB
- Power
- 300W
- Impedance
- 8Ω
- Range
- 40–3000Hz
- EBP †
- 119 · Leans vented
Size and mounting
- Diameter
- 385mm
- Cutout
- 352mm
- Bolt circle
- 369mm
- Depth
- 160mm
- Weight
- 2.8kg
Other published values
- Cms
- 0.15mm/N
- Rms
- 9.45kg/s
- Power Program
- 600
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 15″
- BL
- 19.3T·m
- Fs
- 43Hz
- Le
- 1.11mH
- Re
- 5.4Ω
- Sd
- 855cm²
- Cms
- 0.15mm/N
- Mms
- 93g
- Qes
- 0.36
- Qms
- 2.6
- Qts
- 0.32
- Rms
- 9.45kg/s
- SPL
- 97.3dB
- Vas
- 156.6L
- Xmax
- 3.8mm
- Power
- 300W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 40Hz
- Power Program
- 600
- Calculated sensitivity †
- 97.3dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 75mm
- Weight
- 2.8kg
- Diameter
- 385mm
- Depth
- 160mm
- Cutout
- 352mm
- Bolt circle
- 369mm
