15-inch LF driver · FX series · 700 W

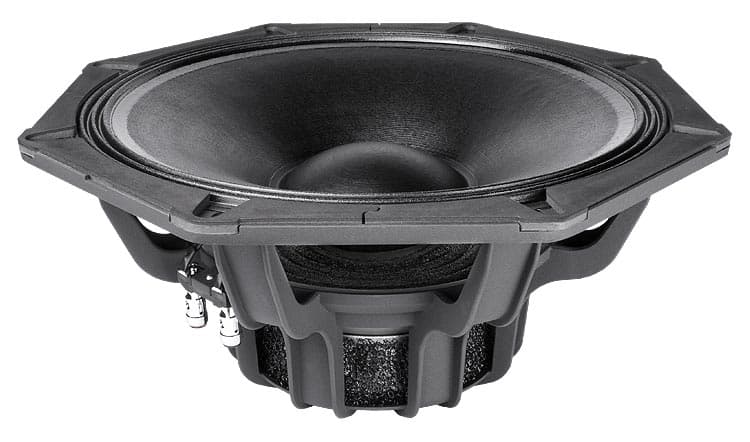

FaitalPRO 15FX560 8Ω
8 Ω · 40–4000 Hz
- Fs
- 38Hz
- Xmax
- 9.4mm
- SPL
- 97dB
- Pe
- 700W
- BL
- 21.5T·m
- Vd
- 814cm³
- Qts
- 0.30
- Vas
- 159L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
229 plotted pointsMedium confidence819 selected pixels of 912 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,299 selected pixels of 1,992 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,238 selected pixels of 1,510
FaitalPRO 15FX560 is a 15-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.30, Vas 159 L, Xmax 9.4 mm, sensitivity 96.5 dB, plus 814 cm³ Vd and 123 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £245.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.30
- Qes
- 0.31
- Qms
- 6.8
- Vas
- 159L
- Re
- 5.2Ω
- Le
- 0.64mH
Motor and cone
- BL
- 21.5T·m
- Sd
- 864cm²
- Mms
- 115g
- Xmax
- 9.4mm
- Vd †
- 814cm³
Power and response
- Sensitivity †
- 96.5dB
- Manufacturer sensitivity
- 99dB
- Power
- 700W
- Impedance
- 8Ω
- Range
- 40–4000Hz
- EBP †
- 123 · Leans vented
Size and mounting
- Diameter
- 418.4mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 185mm
- Weight
- 7.5kg
Other published values
- Cms
- 0.15mm/N
- Rms
- 4kg/s
- Power Program
- 1400
Sensitivity shows 96.5 dB, calculated from the T/S values. FaitalPRO publishes 99.0 dB, 2.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 15″
- BL
- 21.5T·m
- Fs
- 38Hz
- Le
- 0.64mH
- Re
- 5.2Ω
- Sd
- 864cm²
- Cms
- 0.15mm/N
- Mms
- 115g
- Qes
- 0.31
- Qms
- 6.8
- Qts
- 0.30
- Rms
- 4kg/s
- SPL
- 96.5dB
- Vas
- 159L
- Xmax
- 9.4mm
- Power
- 700W
- Impedance
- 8Ω
- Sensitivity
- 99dB
- Low limit
- 40Hz
- Power Program
- 1400
- Calculated sensitivity †
- 96.5dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 99dB
- Weight
- 7.5kg
- Diameter
- 418.4mm
- Depth
- 185mm
- Cutout
- 354mm
- Bolt circle
- 374mm
02
Compare
Same-size drivers, compared with the 15FX560. Clear differences are green when better and red when worse.
This driver15FX560
Best price
£245.00
Fs
38 Hz
Qts
0.30
Vas
159 L
BL
21.5 T·m
Xmax
9.4 mm
Sensitivity
96.5 dB
Power
700 W
SB AudienceROSSO-15W400
£134.56 · 45% less, betterFs44 Hz +16%, worse
Qts0.33 +10%, worse
Vas140.1 L −12%, better
BL21.5 T·m –
Xmax8.3 mm −12%, worse
Sensitivity97.5 dB +1
B&C15CLA76
£170.21 · 31% less, betterFs40 Hz +5%
Qts0.30 –
Vas176 L +11%, worse
BL19.8 T·m −8%
Xmax5.5 mm −42%, worse
Sensitivity97.6 dB +1.1
BMS15S330
£194.97 · 20% less, betterFs39 Hz –
Qts0.32 +7%
Vas152 L −4%
BL23 T·m +7%
Xmax8 mm −15%, worse
Sensitivity96.3 dB –
FaitalPRO15FH510
£199.28 · 19% less, betterFs35 Hz −8%
Qts0.26 −13%, better
Vas191.8 L +21%, worse
BL21 T·m –
Xmax9.3 mm –
Sensitivity96.9 dB –
FaitalPRO15FH530
£200.12 · 18% less, betterFs39 Hz –
Qts0.35 +17%, worse
Vas140.6 L −12%, better
BL20.7 T·m −4%
Xmax9.3 mm –
Sensitivity95.7 dB −0.8
FaitalPRO15FH500
£208.49 · 15% less, betterFs35 Hz −8%
Qts0.31 +3%
Vas199.2 L +25%, worse
BL19.2 T·m −11%, worse
Xmax9.3 mm –
Sensitivity96.3 dB –
Sica15 PF 3
£234.41 · 4% lessFs45 Hz +18%, worse
Qts0.31 +3%
Vas117.6 L −26%, better
BL21.9 T·m –
Xmax8 mm −15%, worse
Sensitivity97.1 dB +0.6
Eighteen Sound15LW2400
£262.08 · 7% more, worseFs40 Hz +5%
Qts0.30 –
Vas131 L −18%, better
BL24 T·m +12%, better
Xmax10 mm +6%
Sensitivity96.2 dB –
B&C15NBX100
£267.25 · 9% more, worseFs36 Hz −5%
Qts0.29 −3%
Vas125 L −21%, better
BL25 T·m +16%, better
Xmax10 mm +6%
Sensitivity94.8 dB −1.7
Sica15 S 4 PL
£300.59 · 23% more, worseFs40 Hz +4%
Qts0.32 +7%
Vas127.6 L −20%, better
BL22.5 T·m +5%
Xmax10 mm +6%
Sensitivity95.8 dB −0.7
Sica15 K 4 PL
£305.62 · 25% more, worseFs47 Hz +22%, worse
Qts0.30 –
Vas102.3 L −36%, better
BL23.9 T·m +11%, better
Xmax8 mm −15%, worse
Sensitivity97.2 dB +0.7
Eighteen Sound15LW1500
£315.00 · 29% more, worseFs34 Hz −11%, better
Qts0.28 −7%
Vas195 L +23%, worse
BL22.1 T·m –
Xmax9 mm −4%
Sensitivity96.2 dB –
BMS15N840
£360.08 · 47% more, worseFs36 Hz −6%
Qts0.30 –
Vas145.7 L −8%
BL24.6 T·m +14%, better
Xmax11 mm +17%, better
Sensitivity95.2 dB −1.3
Eighteen Sound15NLW9500
£376.79 · 54% more, worseFs35 Hz −8%
Qts0.32 +7%
Vas163 L –
BL21.6 T·m –
Xmax9 mm −4%
Sensitivity95.2 dB −1.3
FaitalPRO15HX500
£426.19 · 74% more, worseFs40 Hz +5%
Qts0.28 −7%
Vas150.1 L −6%
BL22.2 T·m +3%
Xmax9.4 mm –
Sensitivity97.2 dB +0.7
B&C15CXN88
£494.86 · 102% more, worseFs47 Hz +24%, worse
Qts0.30 –
Vas124 L −22%, better
BL20.1 T·m −6%
Xmax9.5 mm –
Sensitivity98.2 dB +1.7
Oberton15NXL701
No current priceFs43 Hz +14%, worse
Qts0.30 –
Vas127.1 L −20%, better
BL21.7 T·m –
Xmax9.3 mm –
Sensitivity97.3 dB +0.8
Eighteen Sound15ND940
No current priceFs38 Hz –
Qts0.28 −7%
Vas174 L +9%
BL21.9 T·m –
Xmax9.5 mm –
Sensitivity97.2 dB +0.7
Eighteen Sound15NTLW2500
No current priceFs45 Hz +18%, worse
Qts0.30 –
Vas143 L −10%, better
BL21.2 T·m –
Xmax8 mm −15%, worse
Sensitivity98.3 dB +1.8
CelestionFTR15-4080FD
No current priceFs35 Hz −7%
Qts0.28 −8%
Vas164.3 L +3%
BL23.1 T·m +7%
Xmax8.5 mm −10%
Sensitivity95.9 dB −0.6
Oberton15NMB500
No current priceFs45 Hz +18%, worse
Qts0.29 –
Vas128.0 L −20%, better
BL21.3 T·m –
Xmax7.8 mm −18%, worse
Sensitivity97.9 dB +1.4
BMS15N830V2
No current priceFs37 Hz –
Qts0.27 −10%
Vas159 L –
BL22.4 T·m +4%
Xmax8 mm −15%, worse
Sensitivity96.5 dB –
BMS15N850V2
No current priceFs36 Hz −6%
Qts0.30 –
Vas145.7 L −8%
BL24.6 T·m +14%, better
Xmax11 mm +17%, better
Sensitivity95.2 dB −1.3
Eighteen Sound15ND730
No current priceFs44 Hz +16%, worse
Qts0.29 −3%
Vas156 L –
BL21 T·m –
Xmax6.5 mm −31%, worse
Sensitivity98.5 dB +2, better
FaneCOLOSSUS 15XB
No current priceFs38 Hz –
Qts0.32 +7%
Vas168 L +6%
BL22.1 T·m –
Xmax7.5 mm −20%, worse
Sensitivity96.4 dB –
Oberton15XL700
No current priceFs45 Hz +19%, worse
Qts0.28 −7%
Vas117.0 L −26%, better
BL23.1 T·m +7%
Xmax8.8 mm −7%
Sensitivity97.8 dB +1.3
Oberton15XL701
No current priceFs45 Hz +19%, worse
Qts0.28 −7%
Vas117.0 L −26%, better
BL23.1 T·m +7%
Xmax8.8 mm −7%
Sensitivity97.8 dB +1.3
No photo
PHL Audio5021M
No current priceFs32 Hz −16%, better
Qts0.30 –
Vas169 L +6%
BL24 T·m +12%, better
Xmax7 mm −26%, worse
Sensitivity94.4 dB −2.1, worse
FaneCOLOSSUS 15SB
No current priceFs41 Hz +8%
Qts0.29 −3%
Vas151 L −5%
BL22.5 T·m +5%
Xmax6.5 mm −31%, worse
Sensitivity97.4 dB +0.9
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £245.00, the lowest price | 4+ in stock | Visit shop at Blue Aran | |
Lean Audio | £284.00 | 16% above the lowest price | 2 in stock | Visit shop at Lean Audio |
Lean Business | £286.86 | 17% above the lowest price | Stock not listed | Visit shop at Lean Business |
Thomann | £306.00 | 25% above the lowest price | In stock | Visit shop at Thomann |
Audio Video Parts Import VAT and duty may apply | £304.72 | 24% above the lowest price | Special order | Visit shop at Audio Video Parts |
SoundImports Import VAT and duty may apply | £368.37 | 50% above the lowest price | 2 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
Recent changes
- 23 OctThomann£308.00 → £306.00Down 0.6% from £308.00
- 15 OctThomann£309.00 → £308.00Down 0.3% from £309.00
- 7 OctThomann£314.00 → £309.00Down 1.6% from £314.00
