LF Driver15CXN series
B&C

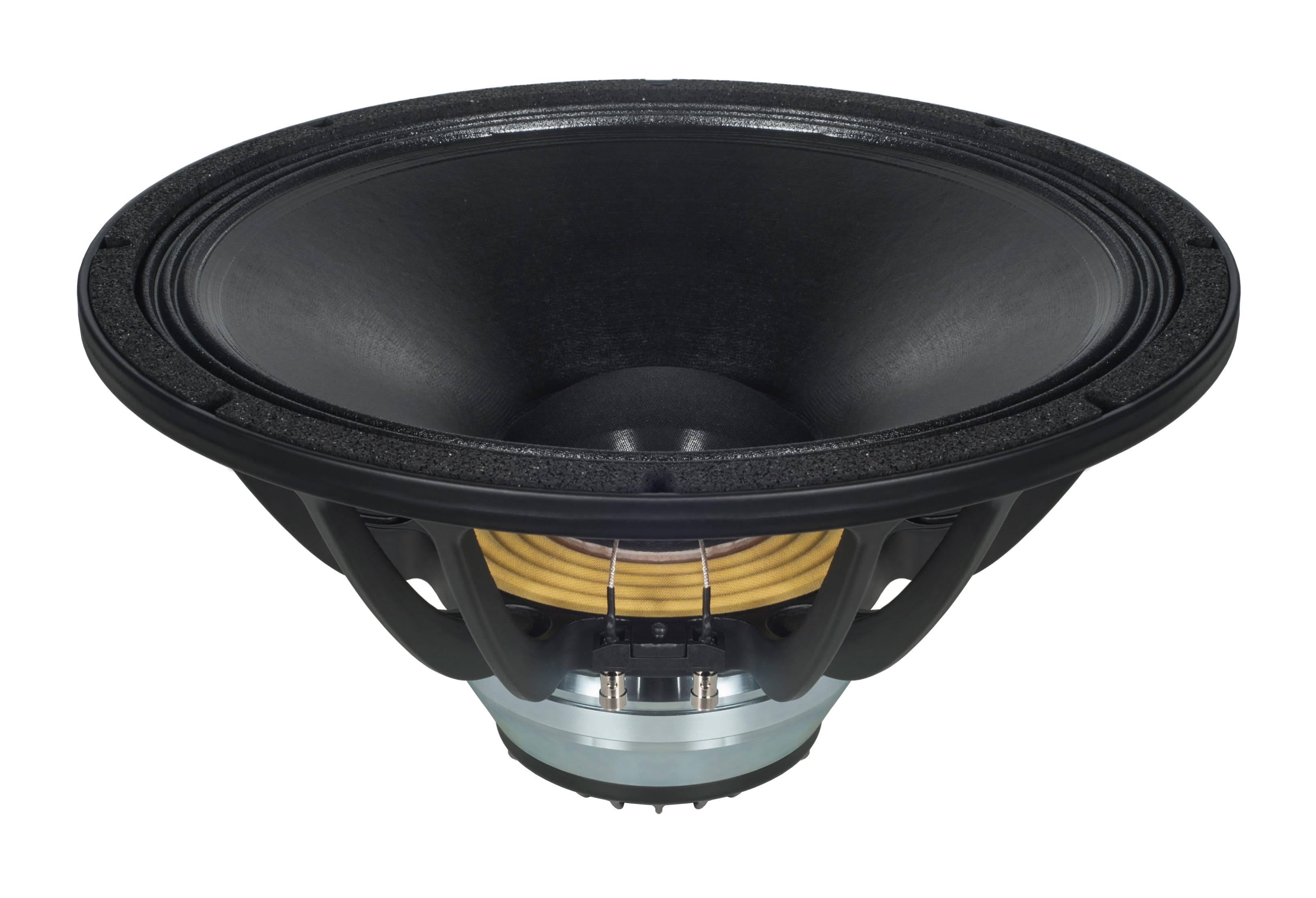

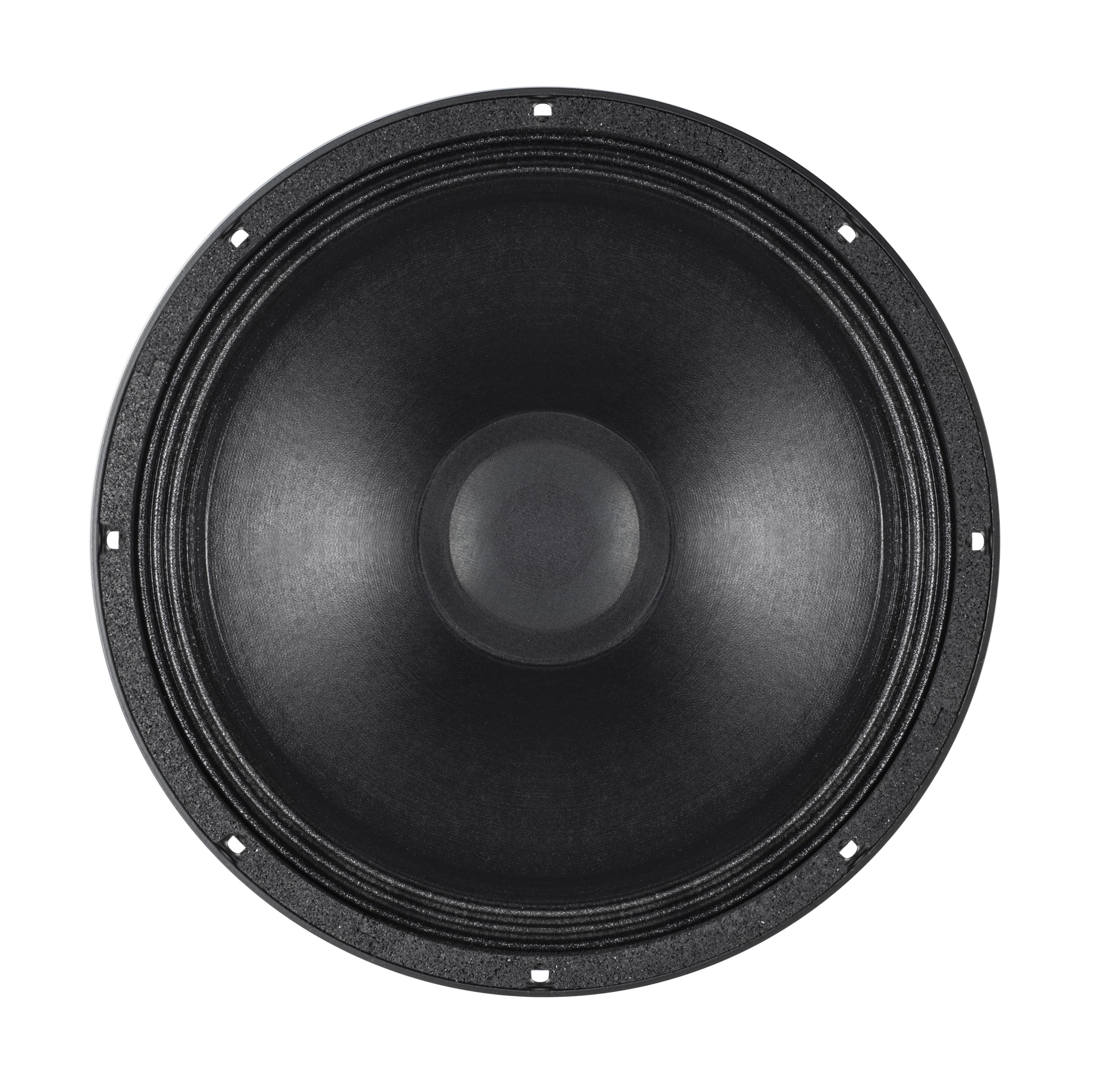

B&C 15CXN88
B&C 15CXN88 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 47Hz, Qts 0.30, Vas 124L, Xmax 9.5mm, sensitivity 98.2dB, plus 812cm³ Vd and 152 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £494.86.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
98.2dB
100.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
152
Vented alignment
Vd
812cm³

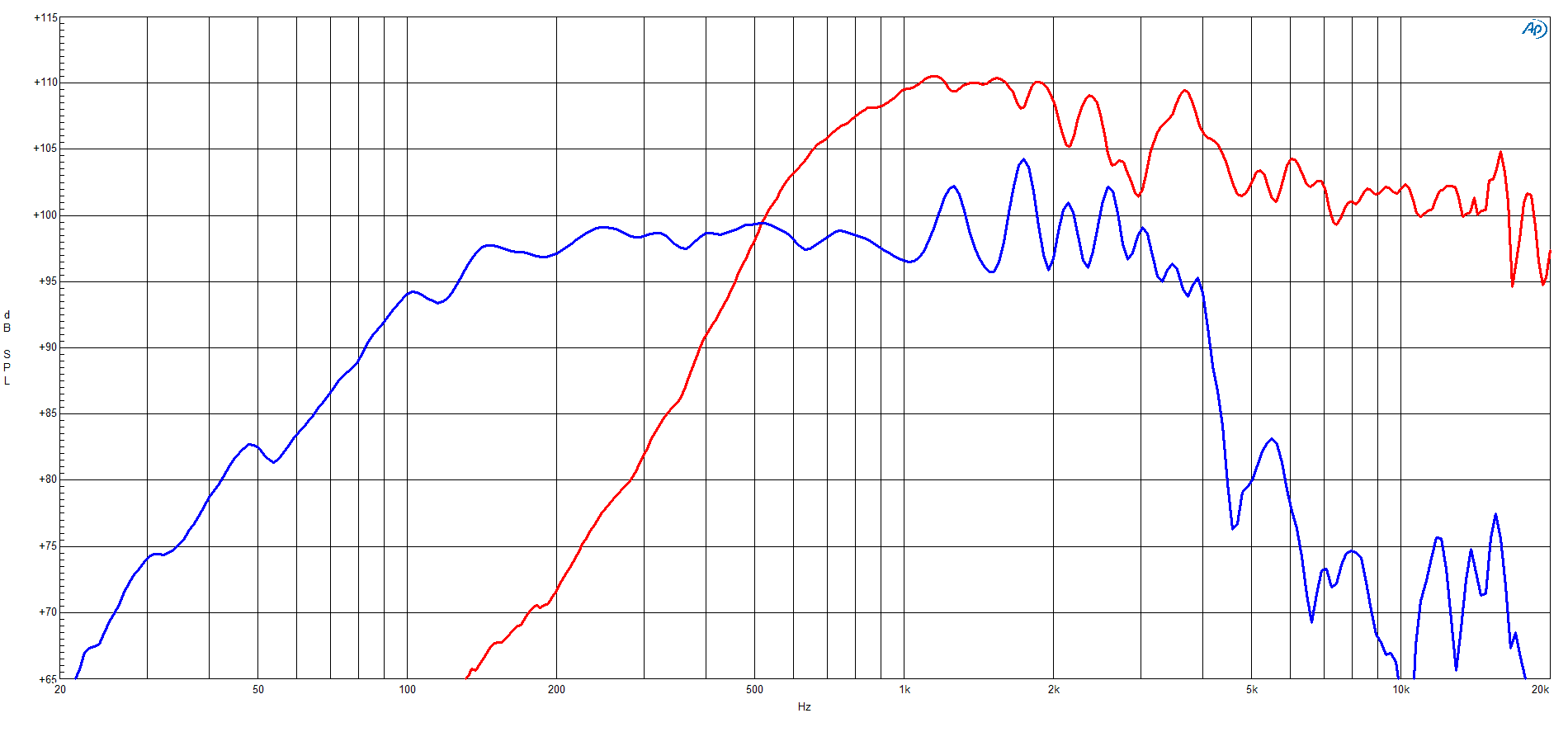

Frequency response

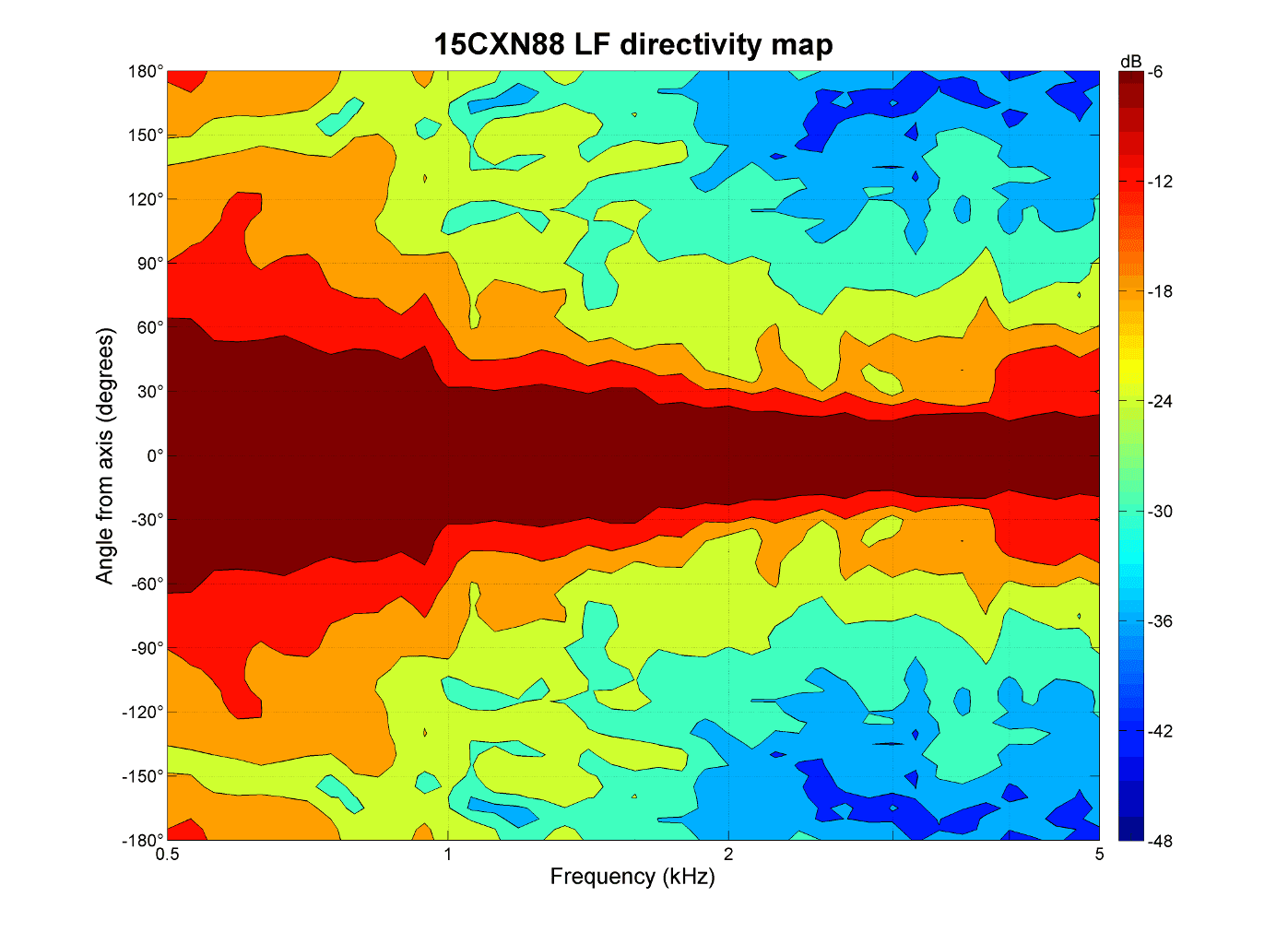

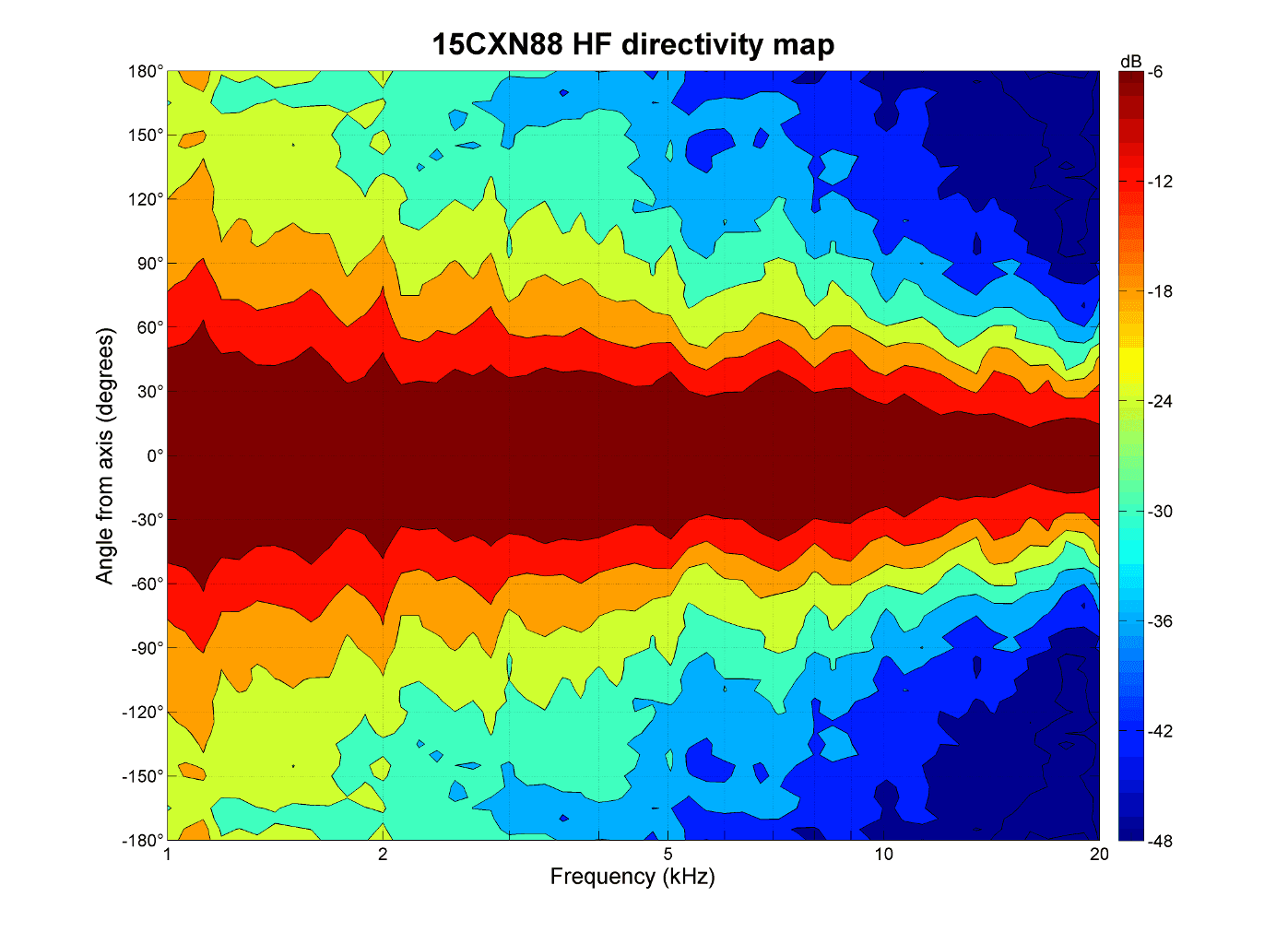

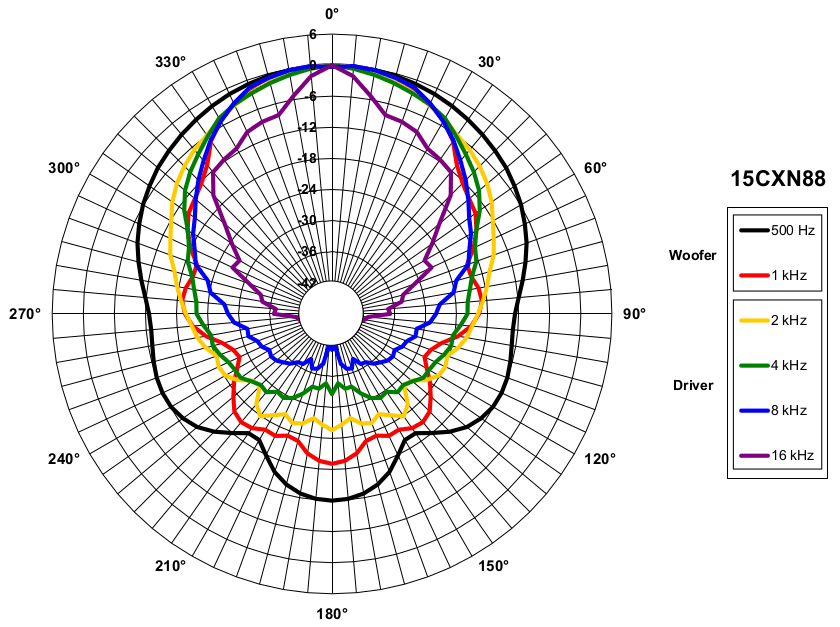

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs47Hz
Qts0.30
Qes0.31
Qms12.6
Vas124.0L
Re4.6Ω
Le0.95mH
BL20.1Tm
Sd855cm²
Mms94g
Xmax9.5mm
SPL98dB
Power500W
Power Nominal500W
Impedance8Ω
Min Impedance5.8Ω
Voice Coil88mm
Flux Density1.20T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£494.86
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs47 Hz
Qts0.30
Qes0.31
Qms12.6
Vas124.0 L
Re4.6 Ω
Le0.95 mH
BL20.1 Tm
Sd855 cm²
Mms94 g
Xmax9.5 mm
SPL98 dB
Power500 W
Power Nominal500 W
Impedance8 Ω
Min Impedance5.8 Ω
Voice Coil88 mm
Flux Density1.20 T
HFSpecifications HF unit
Le0.14 mH
SPL106 dB
Power80 W
Power Nominal80 W
Impedance8 Ω
Min Impedance8.5 Ω
Xover1200 Hz
Voice Coil75 mm
Flux Density1.75 T
Additional Manufacturer Specs
Bl20.15 Tm
Fs47 Hz
Le0.95 mH
Re4.6 Ω
Sd855 cm² (132.53 in²)
Ebp152 Hz
Mms94 g
Qes0.31
Qms12.6
Qts0.3
Vas124 dm³ (4.38 ft³)
η04 %
Xvar9.5 mm
Winding Depth22 mm (0.87 in)
Former MaterialGlass Fibre
Nominal Diameter380 mm (15 in)
Winding MaterialAluminium
Magnetic Gap Depth11 mm (0.43 in)
Woofer Cone TreatmentWP Waterproof Front Side
