Oberton 15XB1000 8Ω
8 Ω · 37–2000 Hz
£250.00
SteadyBlue Aran · 8+ in stock · All 1 offer
- Fs
- 37Hz
- Xmax
- 9mm
- SPL
- 95dB
- Pe
- 1000W
- BL
- 25.6T·m
- Vd
- 747cm³
- Qts
- 0.28
- Vas
- 111L

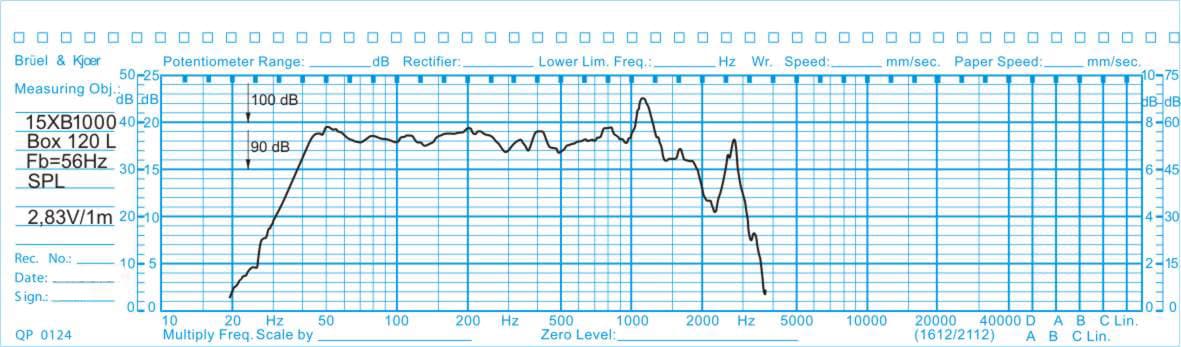

Published graphs
Oberton 15XB1000 is a 15-inch 8 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.28, Vas 111.0 L, Xmax 9 mm, sensitivity 94.9 dB, plus 747 cm³ Vd and 127 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £250.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 37Hz
- Qts
- 0.28
- Qes
- 0.29
- Qms
- 9.2
- Vas
- 111.0L
- Re
- 5.2Ω
- Le
- 1.90mH
Motor and cone
- BL
- 25.6T·m
- Sd
- 830cm²
- Mms
- 158g
- Xmax
- 9mm
- Vd †
- 747cm³
- Voice coil
- 100mm
- Flux density
- 0.98T
Power and response
- Sensitivity †
- 94.9dB
- Manufacturer sensitivity
- 100dB
- Power
- 1000W
- Impedance
- 8Ω
- Min. impedance
- 7.0Ω
- Range
- 37–2000Hz
- EBP †
- 127 · Leans vented

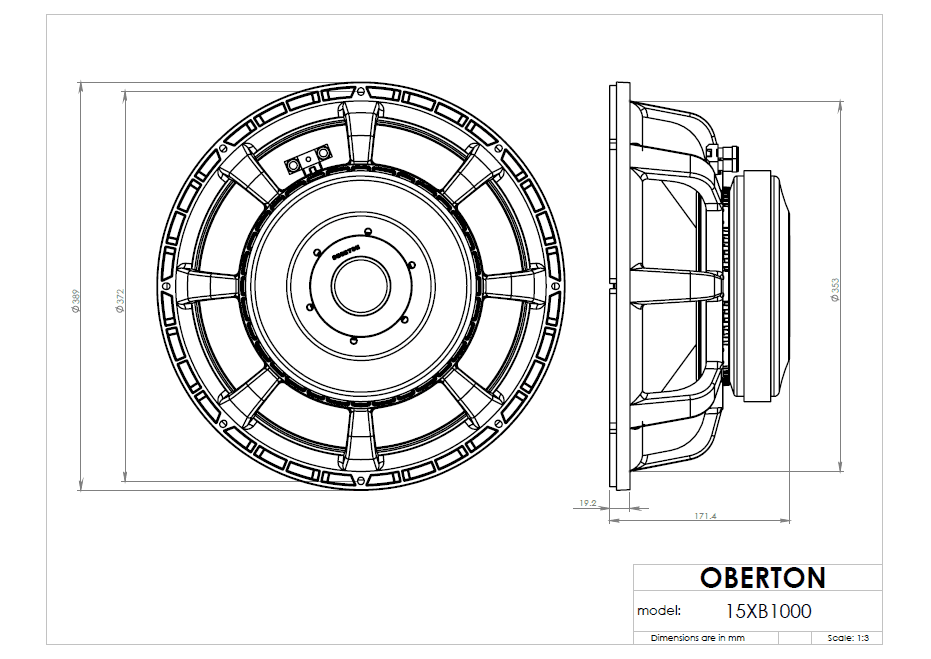

Size and mounting
- Diameter
- 389mm
- Cutout
- 353mm
- Bolt circle
- 372mm
- Depth
- 171.4mm
- Weight
- 13.2kg
Other published values
- Cms
- 0.12mm/N
- Power Program
- 2000
Sensitivity shows 94.9 dB, calculated from the T/S values. Oberton publishes 100.0 dB, 5.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 15″
- BL
- 25.6T·m
- Fs
- 37Hz
- Le
- 1.90mH
- Re
- 5.2Ω
- Sd
- 830cm²
- Cms
- 0.12mm/N
- Mms
- 158g
- Qes
- 0.29
- Qms
- 9.2
- Qts
- 0.28
- SPL
- 94.9dB
- Vas
- 111.0L
- Xmax
- 9mm
- Power
- 1000W
- Impedance
- 8Ω
- Flux density
- 0.98T
- Sensitivity
- 100dB
- Low limit
- 37Hz
- Power Program
- 2000
- Calculated sensitivity †
- 94.9dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 7.0Ω
- Voice coil
- 100mm
- Weight
- 13.2kg
- Diameter
- 389mm
- Depth
- 171.4mm
- Cutout
- 353mm
- Bolt circle
- 372mm
