Overview
LF Driver
Sica

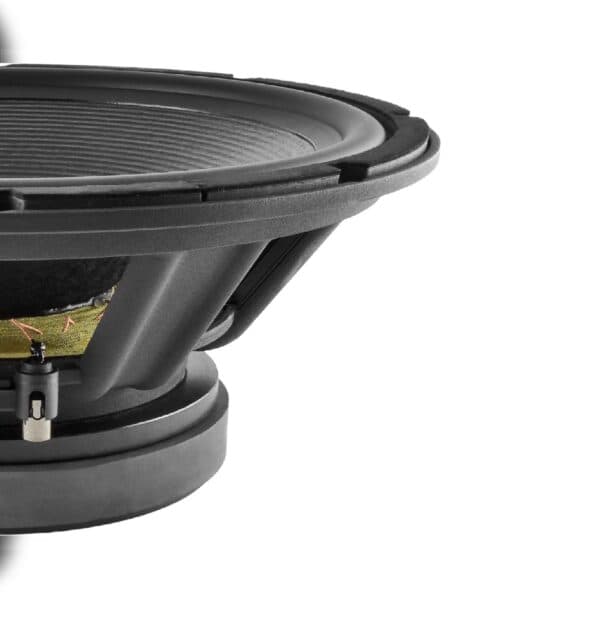

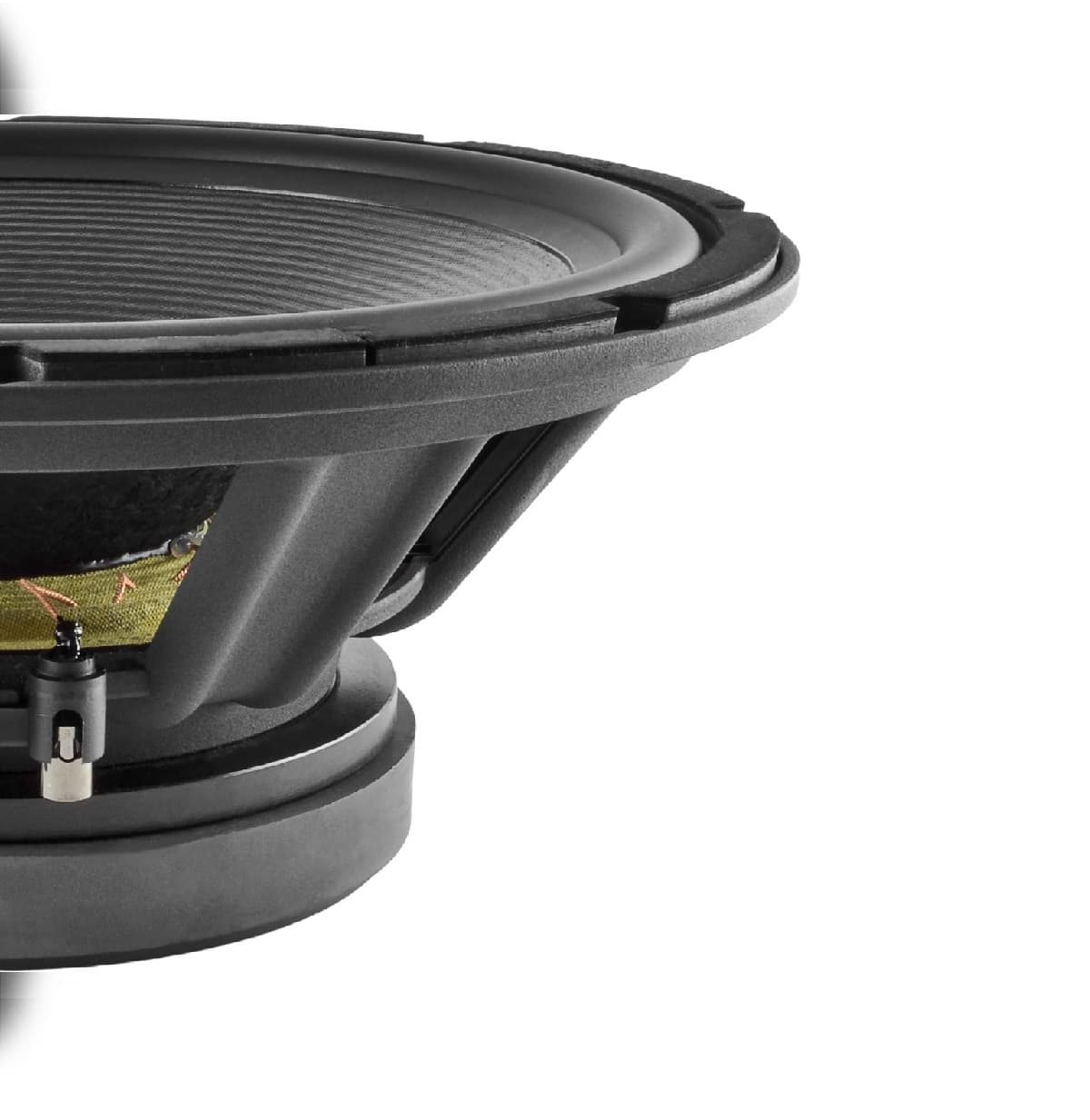

Sica 15 SR 4 CP
Sica 15 SR 4 CP is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 34Hz, Qts 0.29, Vas 101.2L, Xmax 8mm, sensitivity 93.3dB, plus 604cm³ Vd and 113 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
93.3dB
95.1dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
113
Vented alignment
Vd
604cm³
T/S Parameters
Valid
Fs34Hz
Qts0.29
Qes0.30
Qms5.5
Vas101.2L
Re5.1Ω
Le1.83mH
BL25.0Tm
Sd755cm²
Mms175g
Xmax8.0mm
SPL93dB
Power1200W
Impedance8Ω
Voice Coil100mm
Flux Density1.12T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.3kg
Diameter388.0mm
Overall Depth175.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
