LF Driver
Beyma
Beyma 14MC700ND
Beyma 14MC700ND is a 14" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 51Hz, Qts 0.28, Vas 78L, Xmax 7mm, sensitivity 97.4dB, plus 490cm³ Vd and 170 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £229.73.
Size
14"
Impedance
8Ω
RMS Power
700W
Sensitivity
97.4dB
99.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
170
Vented alignment
Vd
490cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,999 selected pixels of 4,638 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,642 selected pixels of 3,642
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs51Hz
Qts0.28
Qes0.30
Qms3.3
Vas78.0L
Re5.3Ω
Le1.00mH
BL22.0Tm
Sd700cm²
Mms86g
Xmax7.0mm
SPL97dB
Power700W
Impedance8Ω
F Low55Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£229.73
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
14MC700ND
14"
Best current price
£229.73
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
36%
Similarity
24% cheaper£173.91
SB Audience
ROSSO-15MW500
15"
Lower price
Xmax8.4mm+20%
Qts0.33+18%
BL23.2Tm+5%
Vas121.3L+56%
Qes0.35+17%
53%
Similarity
13% cheaper£199.99
B&C
15PZB100
15"
Lower price
Xmax8mm+14%
Qts0.29+4%
BL25.8Tm+17%
Vas110L+41%
Qes0.30%
59%
Similarity
5% cheaper£219.28
RCF
MB15N405
15"
Lower price
Xmax7mm0%
Qts0.27-4%
BL23.5Tm+7%
Vas124L+59%
Qes0.28-7%
47%
Similarity
£228.26
B&C
15TBX100
15"
Xmax9mm+29%
Qts0.280%
BL25.5Tm+16%
Vas113L+45%
Qes0.30%
57%
Similarity
4% more£238.26
RCF
MB15X351
15"
Higher price
Xmax7mm0%
Qts0.31+11%
BL22.8Tm+4%
Vas114L+46%
Qes0.33+10%
46%
Similarity
9% more£250.00
Oberton
15XB1000
15"
Higher price
Xmax9mm+29%
Qts0.28+1%
BL25.6Tm+17%
Vas111L+42%
Qes0.29-3%
46%
Similarity
22% more£279.65

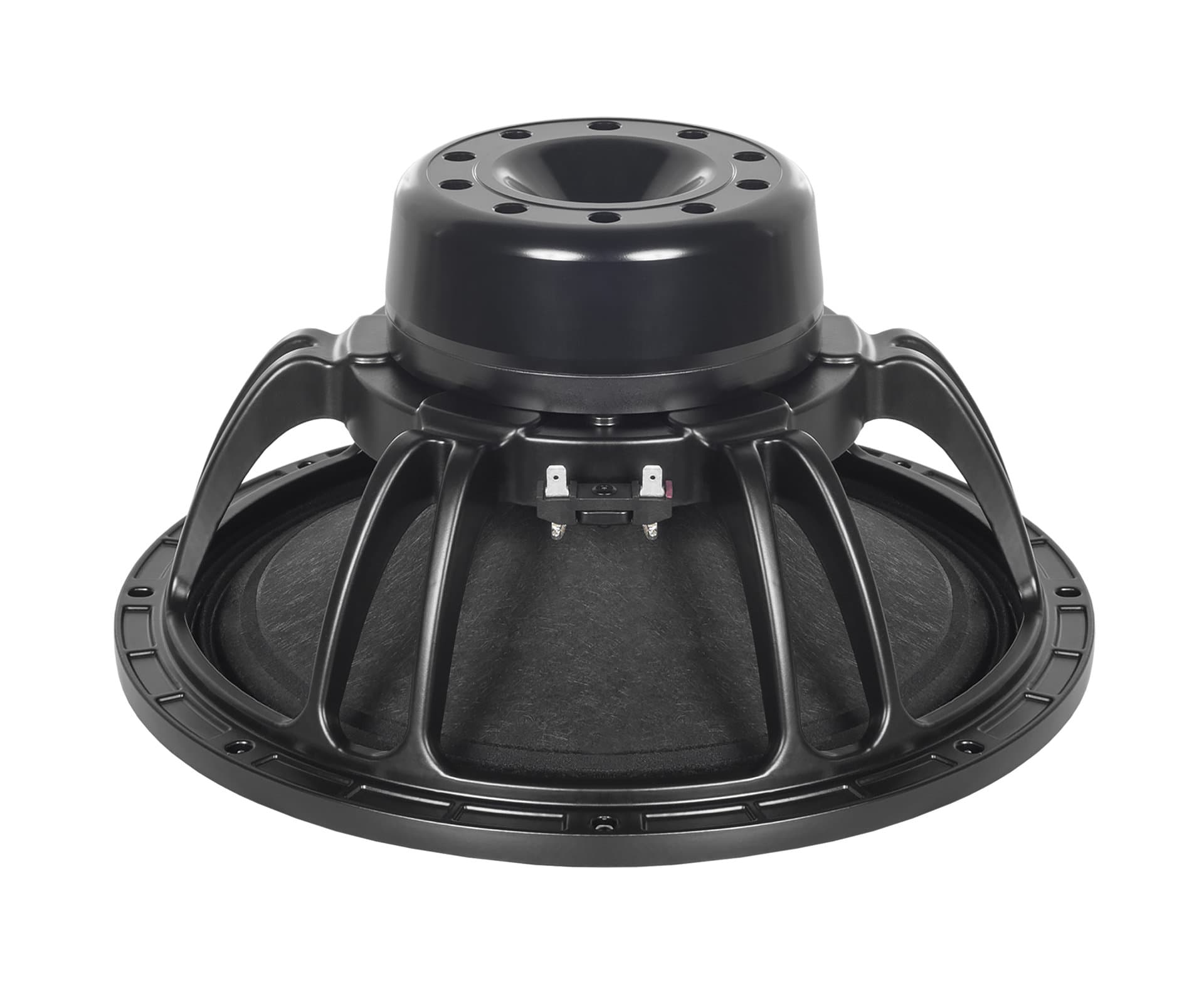

B&C
14NA100
13.5"
Higher price
Xmax8.8mm+26%
Qts0.23-18%
BL23.5Tm+7%
Vas99.5L+28%
Qes0.24-20%
38%
Similarity
24% more£285.89

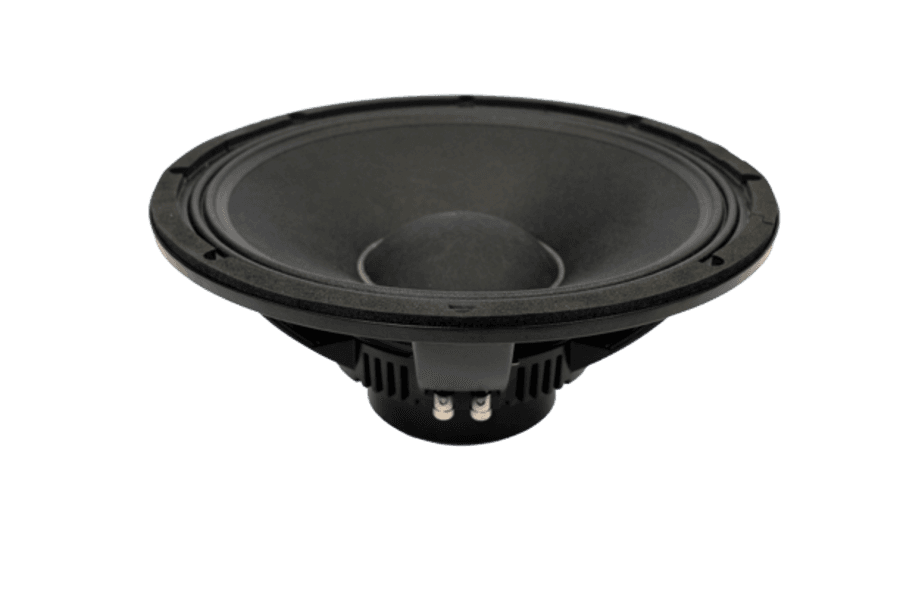

Eighteen Sound
15NMB1000
15"
Higher price
Xmax6.5mm-7%
Qts0.24-14%
BL25.2Tm+15%
Vas124L+59%
Qes0.24-20%
52%
Similarity
98% more£453.72
RCF
CX15N351
15"
Higher price
Xmax6mm-14%
Qts0.26-7%
BL23.5Tm+7%
Vas110L+41%
Qes0.27-10%
53%
Similarity
116% more£497.18

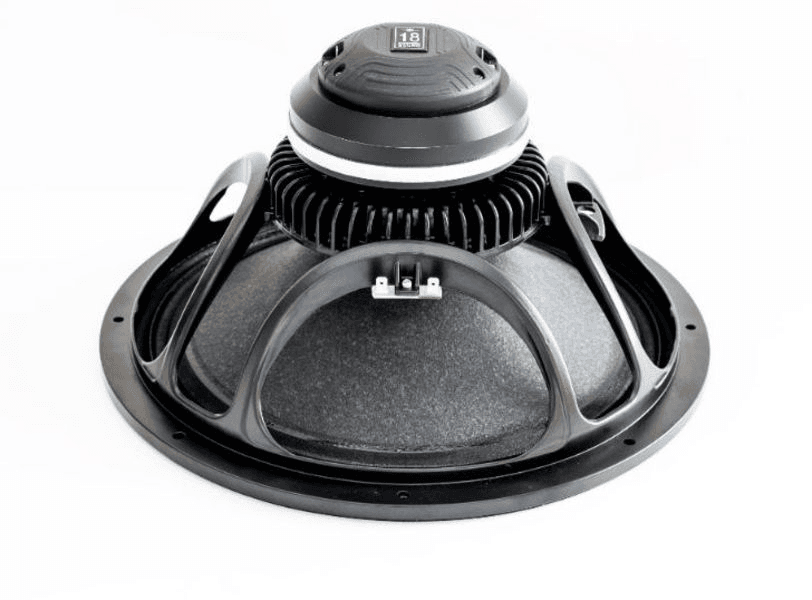

Eighteen Sound
15NCX910
15"
Higher price
Xmax7mm0%
Qts0.33+18%
BL21Tm-5%
Vas107L+37%
Qes0.34+13%
56%
Similarity
248% more£799.87
Eighteen Sound
15NCX1000
15"
Higher price
Xmax7.5mm+7%
Qts0.31+11%
BL27.5Tm+25%
Vas75L-4%
Qes0.32+7%
64%
Similarity

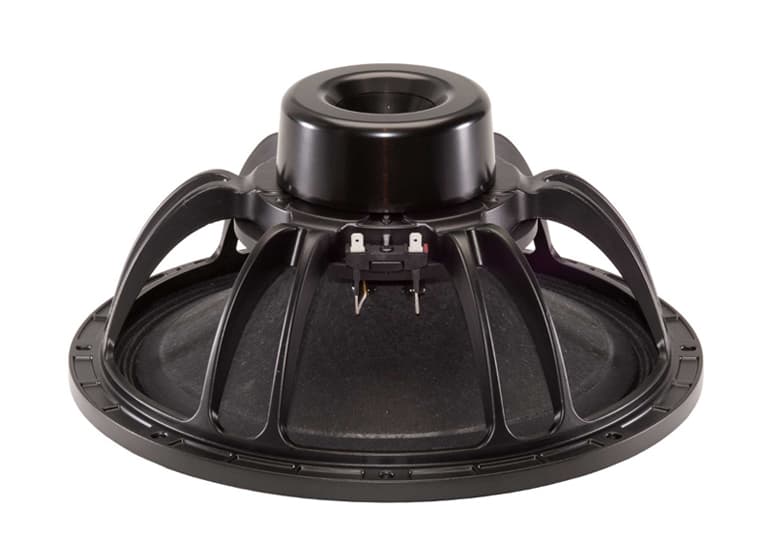

B&C
