Oberton 15B450 / 15B450A / 15B450A2 8Ω
8 Ω · 45–2500 Hz
No current price
- Fs
- 45Hz
- Xmax
- 6.8mm
- SPL
- 99dB
- Pe
- 450W
- BL
- 20.4T·m
- Vd
- 560cm³
- Qts
- 0.29
- Vas
- 147L

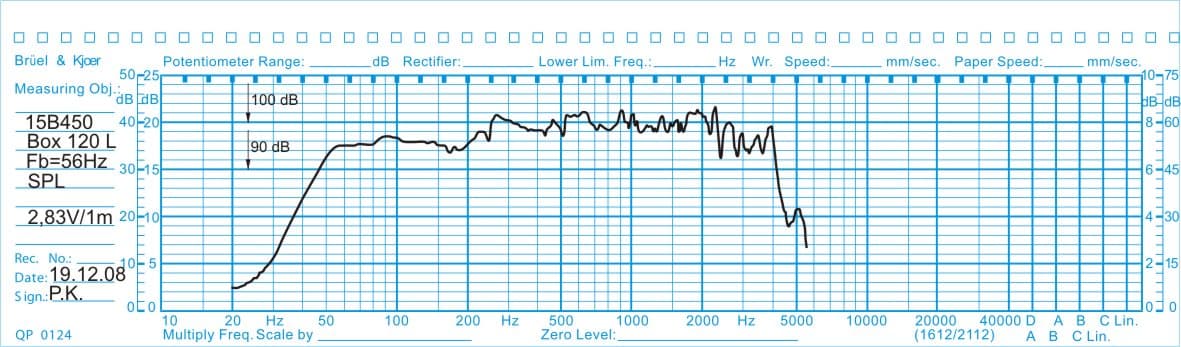

Published graphs
Oberton 15B450 / 15B450A / 15B450A2 is a 15-inch 8 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.29, Vas 146.8 L, Xmax 6.8 mm, sensitivity 98.6 dB, plus 560 cm³ Vd and 153 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.29
- Qes
- 0.29
- Qms
- 9.6
- Vas
- 146.8L
- Re
- 5.3Ω
- Le
- 1.08mH
Motor and cone
- BL
- 20.4T·m
- Sd
- 830cm²
- Mms
- 82g
- Xmax
- 6.8mm
- Vd †
- 560cm³
- Voice coil
- 77mm
- Flux density
- 1.33T
Power and response
- Sensitivity †
- 98.6dB
- Manufacturer sensitivity
- 200dB
- Power
- 450W
- Impedance
- 8Ω
- Min. impedance
- 6.3Ω
- Range
- 45–2500Hz
- EBP †
- 153 · Leans vented

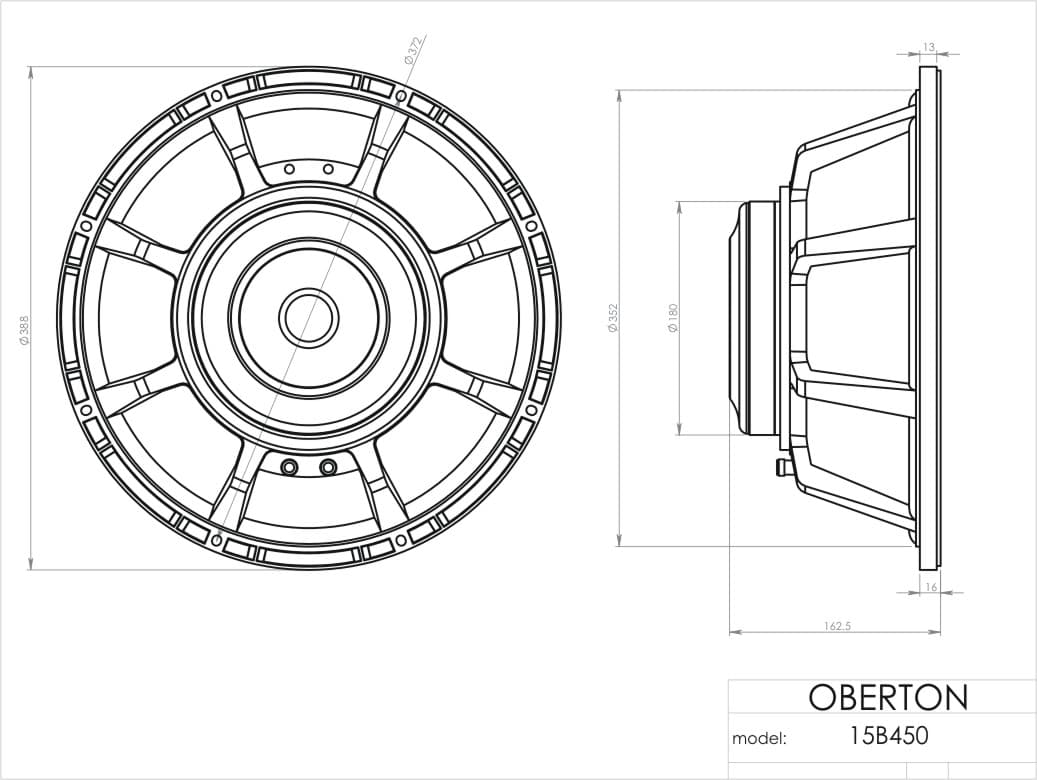

Size and mounting
- Diameter
- 388mm
- Cutout
- 352mm
- Bolt circle
- 372mm
- Depth
- 162.5mm
- Weight
- 7.5kg
Other published values
- Cms
- 0.15mm/N
- Power Program
- 900
Sensitivity shows 98.6 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 101.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 15″
- BL
- 20.4T·m
- Fs
- 45Hz
- Le
- 1.08mH
- Re
- 5.3Ω
- Sd
- 830cm²
- Cms
- 0.15mm/N
- Mms
- 82g
- Qes
- 0.29
- Qms
- 9.6
- Qts
- 0.29
- SPL
- 98.6dB
- Vas
- 146.8L
- Xmax
- 6.8mm
- Power
- 450W
- Impedance
- 8Ω
- Flux density
- 1.33T
- Sensitivity
- 200dB
- Low limit
- 45Hz
- Power Program
- 900
- Calculated sensitivity †
- 98.6dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.3Ω
- Voice coil
- 77mm
- Weight
- 7.5kg
- Diameter
- 388mm
- Depth
- 162.5mm
- Cutout
- 352mm
- Bolt circle
- 372mm
