15-inch LF driver · 15NSW series · 600 W

Oberton 15NSW600 8Ω

Name: Oberton 15NSW600 8 Ohm
Brand: Oberton
SKU: 15NSW600

8 Ω · 35–1000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 37Hz
Xmax: 14.3mm
SPL: 96dB
Pe: 600W
BL: 23.4T·m
Vd: 1182cm³
Qts: 0.29
Vas: 148L

See all 27 specs

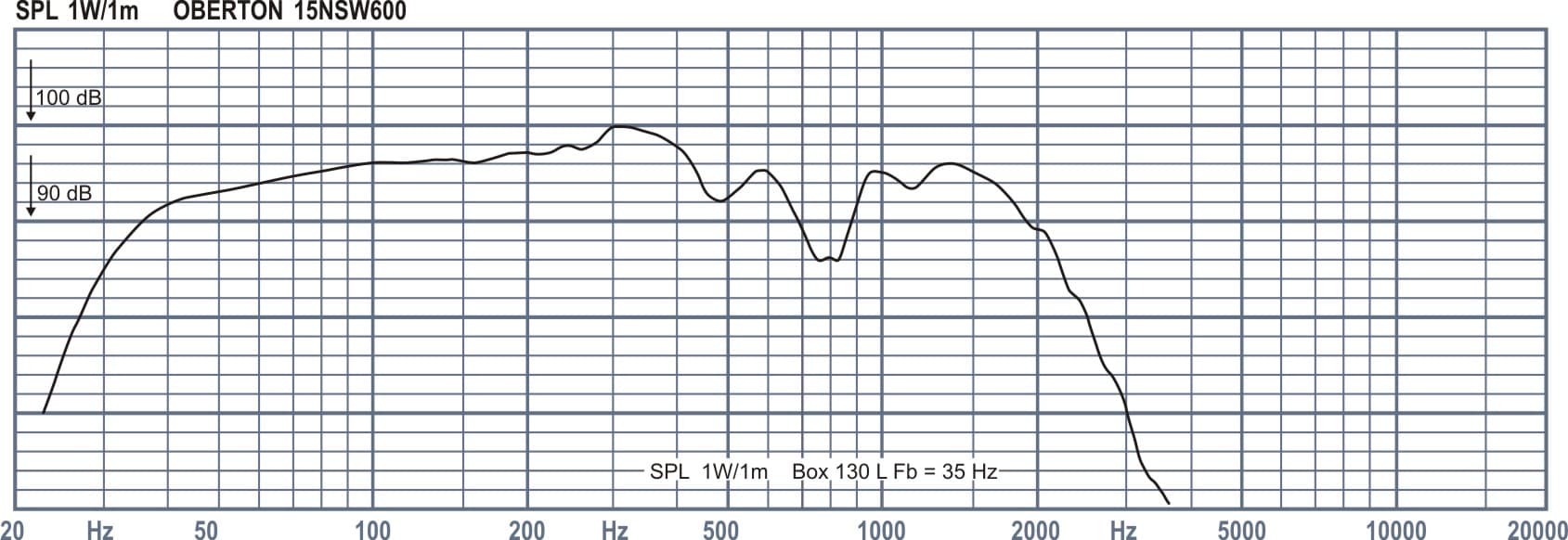

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 15NSW600 is a 15-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.29, Vas 148.4 L, Xmax 14.3 mm, sensitivity 95.8 dB, plus 1182 cm³ Vd and 120 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 37Hz
Qts: 0.29
Qes: 0.30
Qms: 8.4
Vas: 148.4L
Re: 5.9Ω
Le: 0.80mH

Motor and cone

BL: 23.4T·m
Sd: 830cm²
Mms: 123g
Xmax: 14.3mm
Vd †: 1182cm³
Flux density: 1.23T

Power and response

Sensitivity †: 95.8dB
Manufacturer sensitivity: 50dB
Power: 600W
Impedance: 8Ω
Min. impedance: 7.8Ω
Range: 35–1000Hz
EBP †: 120 · Leans vented

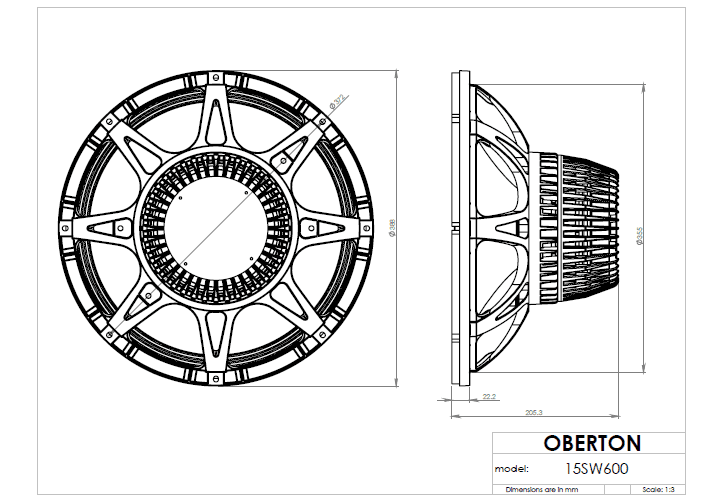

Size and mounting

Diameter: 388mm
Cutout: 355mm
Bolt circle: 372mm
Depth: 205.3mm
Weight: 7.2kg

Other published values

Cms: 0.15mm/N
Power Program: 1200

Sensitivity shows 95.8 dB, calculated from the T/S values. Oberton publishes 50.0 dB, 45.8 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 15″

BL: 23.4T·m
Fs: 37Hz
Le: 0.80mH
Re: 5.9Ω
Sd: 830cm²
Cms: 0.15mm/N
Mms: 123g
Qes: 0.30
Qms: 8.4
Qts: 0.29
SPL: 95.8dB
Vas: 148.4L
Xmax: 14.3mm
Power: 600W
Impedance: 8Ω
Flux density: 1.23T
Sensitivity: 50dB
Low limit: 35Hz
Power Program: 1200
Calculated sensitivity †: 95.8dB
High limit: 1000Hz
Manufacturer sensitivity: 50dB
Min. impedance: 7.8Ω
Weight: 7.2kg
Diameter: 388mm
Depth: 205.3mm
Cutout: 355mm
Bolt circle: 372mm

Compare

Same-size drivers, compared with the 15NSW600. Clear differences are green when better and red when worse.

This driver15NSW600

Best price

–

37 Hz

Qts

0.29

Vas

148.4 L

23.4 T·m

Xmax

14.3 mm

Sensitivity

95.8 dB

Power

600 W

CelestionTF1530

£118.90

Fs42 Hz +15%

Qts0.28 −4%

Vas162.2 L +9%

BL21.2 T·m −9%

Xmax4 mm −72%

Sensitivity97.9 dB +2.1

BMS15S320

£208.72

Fs41 Hz +12%

Qts0.28 −4%

Vas154 L +4%

BL23.3 T·m –

Xmax4.5 mm −68%

Sensitivity97.7 dB +1.9

RCFLF15X401

£240.00

Fs34 Hz −7%

Qts0.29 –

Vas146 L –

BL26.5 T·m +13%

Xmax12 mm −16%

Sensitivity94.8 dB −1

FaitalPRO15FX560

£245.00

Fs38 Hz +4%

Qts0.30 –

Vas159 L +7%

BL21.5 T·m −8%

Xmax9.4 mm −34%

Sensitivity96.5 dB +0.7

B&C15TBW100

£248.68

Fs39 Hz +7%

Qts0.28 −4%

Vas88 L −41%

BL22.6 T·m −4%

Xmax12 mm −16%

Sensitivity94.4 dB −1.4

Eighteen Sound15LW2400

£262.08

Fs40 Hz +10%

Qts0.30 –

Vas131 L −12%

BL24 T·m –

Xmax10 mm −30%

Sensitivity96.2 dB –

B&C15NBX100

£267.25

Fs36 Hz –

Qts0.29 –

Vas125 L −16%

BL25 T·m +7%

Xmax10 mm −30%

Sensitivity94.8 dB −1

Eighteen Sound15ND730

£272.47

Fs44 Hz +21%

Qts0.29 –

Vas156 L +5%

BL21 T·m −10%

Xmax6.5 mm −54%

Sensitivity98.5 dB +2.7

FaitalPRO15FX600

£283.85

Fs38 Hz +4%

Qts0.27 −8%

Vas128.3 L −14%

BL23.2 T·m –

Xmax11.3 mm −21%

Sensitivity96 dB –

FaitalPRO15HP1060

£287.20

Fs40 Hz +10%

Qts0.31 +6%

Vas100.3 L −32%

BL24.8 T·m +6%

Xmax12.4 mm −13%

Sensitivity95.1 dB −0.7

SB AudienceNERO-15SW800

£309.76

Fs31 Hz −15%

Qts0.34 +16%

Vas137 L −8%

BL24.4 T·m +4%

Xmax14.3 mm –

Sensitivity92.6 dB −3.2

BMS15S435

£317.34

Fs38 Hz +4%

Qts0.28 −4%

Vas129 L −13%

BL24.4 T·m +4%

Xmax8 mm −44%

Sensitivity95.9 dB –

B&C15SW100

£317.34

Fs37 Hz –

Qts0.31 +6%

Vas110 L −26%

BL25.6 T·m +9%

Xmax12.5 mm −12%

Sensitivity94.2 dB −1.6

Beyma15LEX1200ND

£320.84

Fs36 Hz –

Qts0.30 –

Vas127 L −14%

BL26.4 T·m +13%

Xmax11 mm −23%

Sensitivity94.7 dB −1.1

BMS15N840

£360.08

Fs36 Hz –

Qts0.30 –

Vas145.7 L –

BL24.6 T·m +5%

Xmax11 mm −23%

Sensitivity95.2 dB −0.6

FaitalPRO15XL1400

£367.58

Fs38 Hz +4%

Qts0.30 –

Vas84.3 L −43%

BL21.7 T·m −7%

Xmax12.9 mm −9%

Sensitivity93.8 dB −2

FaitalPRO15HX500

£426.19

Fs40 Hz +10%

Qts0.28 −4%

Vas150.1 L –

BL22.2 T·m −5%

Xmax9.4 mm −34%

Sensitivity97.2 dB +1.4

BMS15N850V2

No current price

Fs36 Hz –

Qts0.30 –

Vas145.7 L –

BL24.6 T·m +5%

Xmax11 mm −23%

Sensitivity95.2 dB −0.6

FaneCOLOSSUS 15SB

No current price

Fs41 Hz +12%

Qts0.29 –

Vas151 L –

BL22.5 T·m −4%

Xmax6.5 mm −54%

Sensitivity97.4 dB +1.6

Oberton15XB1200

No current price

Fs40 Hz +9%

Qts0.31 +5%

Vas108.5 L −27%

BL23.9 T·m –

Xmax12 mm −16%

Sensitivity95.3 dB −0.5

Oberton15XB1201

No current price

Fs40 Hz +9%

Qts0.31 +5%

Vas108.5 L −27%

BL23.9 T·m –

Xmax12 mm −16%

Sensitivity95.3 dB −0.5

Eighteen Sound15NTLW2500

No current price

Fs45 Hz +23%

Qts0.30 –

Vas143 L −4%

BL21.2 T·m −9%

Xmax8 mm −44%

Sensitivity98.3 dB +2.5

CelestionFTR15-4080FD

No current price

Fs35 Hz −3%

Qts0.28 −5%

Vas164.3 L +11%

BL23.1 T·m –

Xmax8.5 mm −40%

Sensitivity95.9 dB –

No photo

PHL Audio5021M

No current price

Fs32 Hz −12%

Qts0.30 –

Vas169 L +14%

BL24 T·m –

Xmax7 mm −51%

Sensitivity94.4 dB −1.4

Oberton15NMB500

No current price

Fs45 Hz +23%

Qts0.29 –

Vas128.0 L −14%

BL21.3 T·m −9%

Xmax7.8 mm −46%

Sensitivity97.9 dB +2.1

Oberton15B450 / 15B450A / 15B450A2

No current price

Fs45 Hz +23%

Qts0.29 –

Vas146.8 L –

BL20.4 T·m −13%

Xmax6.8 mm −53%

Sensitivity98.6 dB +2.8

No photo

PHL Audio6201MND

No current price

Fs36 Hz –

Qts0.27 −8%

Vas140 L −6%

BL25 T·m +7%

Xmax10.5 mm −26%

Sensitivity95.6 dB –

Oberton15NXL701

No current price

Fs43 Hz +19%

Qts0.30 –

Vas127.1 L −14%

BL21.7 T·m −7%

Xmax9.3 mm −35%

Sensitivity97.3 dB +1.5

Oberton15NXB1201

No current price

Fs38 Hz +5%

Qts0.32 +11%

Vas111.9 L −25%

BL23.6 T·m –

Xmax12 mm −16%

Sensitivity94.8 dB −1

BMS15N830V2

No current price

Fs37 Hz –

Qts0.27 −8%

Vas159 L +7%

BL22.4 T·m −4%

Xmax8 mm −44%

Sensitivity96.5 dB +0.7
