Overview
LF Driver15XB series
Oberton
Oberton 15XB1201
Oberton 15XB1201 is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 40Hz, Qts 0.31, Vas 108.5L, Xmax 12mm, sensitivity 95.3dB, plus 996cm³ Vd and 124 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
95.3dB
100.0dBmanufacturer; using T/S-derived value (4.7dB delta).
EBP
124
Vented alignment
Vd
996cm³
T/S Parameters
Valid
Fs40Hz
Qts0.31
Qes0.32
Qms7.8
Vas108.5L
Re5.2Ω
Le1.36mH
BL23.9Tm
Sd830cm²
Mms142g
Xmax12.0mm
SPL95dB
Power1200W
Impedance8Ω
Min Impedance6.5Ω
F Low39Hz
F High2000Hz
Voice Coil100mm
Flux Density1.25T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

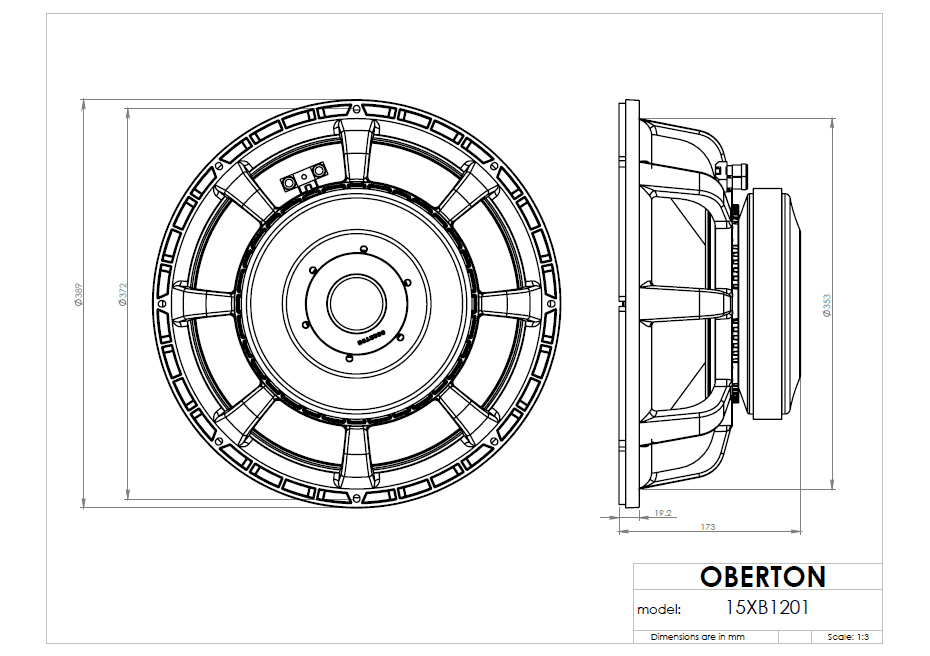

Dimensions & Physical
Weight13.8kg
Diameter389.0mm
Overall Depth173.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter372.0mm
