LF DriverXL series
FaitalPRO

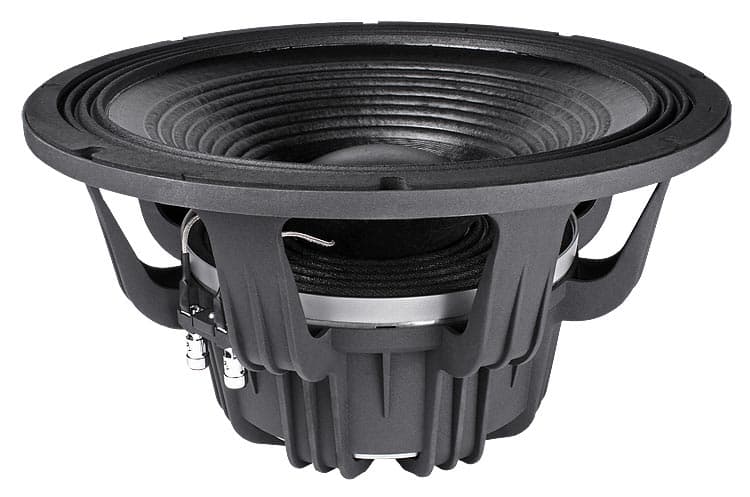

FaitalPRO 15XL1400
FaitalPRO 15XL1400 is a 15" 8 ohm LF driver rated at 1400W RMS. The validated T/S data includes Fs 38Hz, Qts 0.33, Vas 91.2L, Xmax 12.9mm, sensitivity 93.7dB, plus 1087cm³ Vd and 112 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £329.00.
Size
15"
Impedance
8Ω
RMS Power
1400W
Sensitivity
93.7dB
96.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
112
Vented alignment
Vd
1087cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees140 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
140 plotted pointsMedium confidence433 selected pixels of 1,046 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,044 selected pixels of 1,693 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,371 selected pixels of 1,756
T/S Parameters
Valid
Fs38Hz
Qts0.33
Qes0.34
Qms10.4
Vas91.2L
Re5.4Ω
Le1.60mH
BL26.7Tm
Sd841cm²
Mms190g
Xmax12.9mm
SPL94dB
Power1400W
Impedance8Ω
F Low40Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£329.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.8kg
Diameter393.0mm
Overall Depth217.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
15XL1400
15"
Best current price
£329.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
60%
Similarity
51% cheaper£161.93
FaitalPRO
15HP1010
15"
Lower price
Xmax9.8mm-25%
Qts0.37+12%
BL22Tm-18%
Vas107.5L+18%
Qes0.38+12%
52%
Similarity
37% cheaper£205.75
FaitalPRO
15FH530
15"
Lower price
Xmax9.3mm-28%
Qts0.35+6%
BL20.7Tm-22%
Vas140.6L+54%
Qes0.36+6%
72%
Similarity
34% cheaper£218.02
Beyma
15LEX1000FE
15"
Lower price
Xmax11mm-15%
Qts0.34+3%
BL23.2Tm-13%
Vas116L+27%
Qes0.37+9%
58%
Similarity
31% cheaper£226.15
CIARE
15.00SW
15"
Lower price
Xmax14mm+8%
Qts0.41+24%
BL25Tm-6%
Vas111L+22%
Qes0.44+29%
47%
Similarity
31% cheaper£226.15
CIARE
15.00SW
15"
Lower price
Xmax13.5mm+4%
Qts0.41+24%
BL18.4Tm-31%
Vas113L+24%
Qes0.44+29%
71%
Similarity
30% cheaper£229.00
Celestion
FTR15-4080HDX
15"
Lower price
Xmax10.1mm-22%
Qts0.32-3%
BL23.1Tm-14%
Vas111.2L+22%
Qes0.36+5%
89%
Similarity
25% cheaper£246.65
B&C
15TBW100
15"
Lower price
Xmax12mm-7%
Qts0.31-6%
BL26.4Tm-1%
Vas96L+5%
Qes0.33-3%
73%
Similarity
24% cheaper£249.00
B&C
15TBW100
15"
Lower price
Xmax12mm-7%
Qts0.28-15%
BL22.6Tm-16%
Vas88L-4%
Qes0.3-12%
84%
Similarity
24% cheaper£250.89
Eminence
LAB 15
15"
Lower price
Xmax11.8mm-9%
Qts0.35+6%
BL26.7Tm0%
Vas103.6L+14%
Qes0.37+9%
89%
Similarity
20% cheaper£264.30
FaitalPRO
15HP1030
15"
Lower price
Xmax12.4mm-4%
Qts0.34+3%
BL24.3Tm-9%
Vas95L+4%
Qes0.35+3%
62%
Similarity
19% cheaper£267.25
B&C
15NBX100
15"
Lower price
Xmax10mm-23%
Qts0.29-12%
BL25Tm-6%
Vas125L+37%
Qes0.31-9%
62%
Similarity
18% cheaper£270.47
Eighteen Sound
15LW2400
15"
Lower price
Xmax10mm-23%
Qts0.3-9%
BL24Tm-10%
Vas131L+44%
Qes0.32-6%
