LF DriverNERO series
SB Audience
SB Audience NERO-15SW800
SB Audience NERO-15SW800 is a 15" 1 ohm LF driver rated at 1W RMS. The validated T/S data includes Fs 31Hz, Qts 0.34, Vas 137L, Xmax 14.3mm, sensitivity 92.6dB, plus 1228cm³ Vd and 86 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
1Ω
RMS Power
1W
Sensitivity
92.6dB
EBP
86
Either alignment
Vd
1228cm³
T/S Parameters
Valid
Fs31Hz
Qts0.34
Qes0.36
Qms7.6
Vas137.0L
Re5.3Ω
Le2.08mH
BL24.4Tm
Sd861cm²
Mms207g
Xmax14.3mm
SPL93dB
Power1W
Impedance1Ω
Min Impedance2.0Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

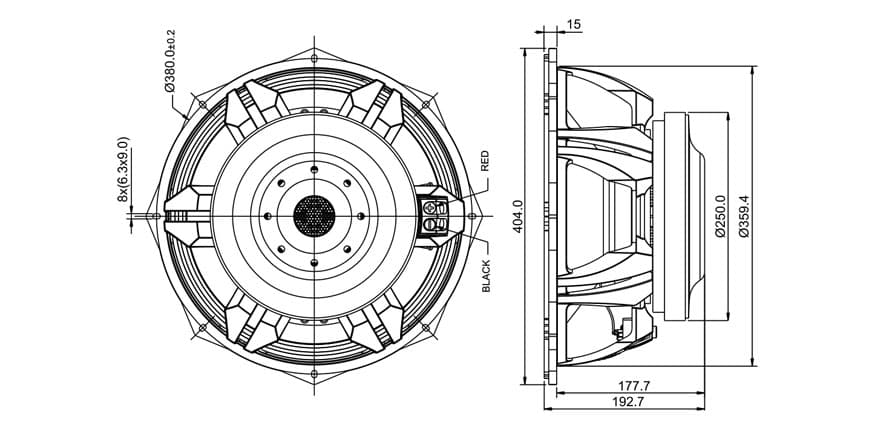

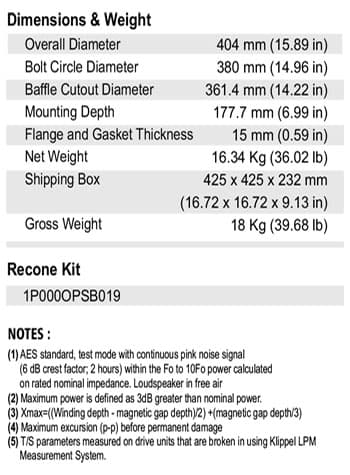

Dimensions & Physical
Weight16.3kg
Diameter404.0mm
Cutout Diameter361.4mm
Bolt Circle Diameter380.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Audience
NERO-15SW800
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
83%
Similarity
£264.30
FaitalPRO
15HP1030
15"
Xmax12.4mm-13%
Qts0.340%
BL24.3Tm0%
Vas95L-31%
Qes0.35-3%
82%
Similarity
£272.34
Beyma
15LEX1600FE
15"
Xmax13mm-9%
Qts0.33-3%
BL25.8Tm+6%
Vas106L-23%
Qes0.34-6%
81%
Similarity
£387.62
Beyma
15LEX1600ND
15"
Xmax14.5mm+2%
Qts0.36+6%
BL25.7Tm+5%
Vas91L-34%
Qes0.38+6%
79%
Similarity
£218.02
Beyma
15LEX1000FE
15"
Xmax11mm-23%
Qts0.340%
BL23.2Tm-5%
Vas116L-15%
Qes0.37+3%
79%
Similarity

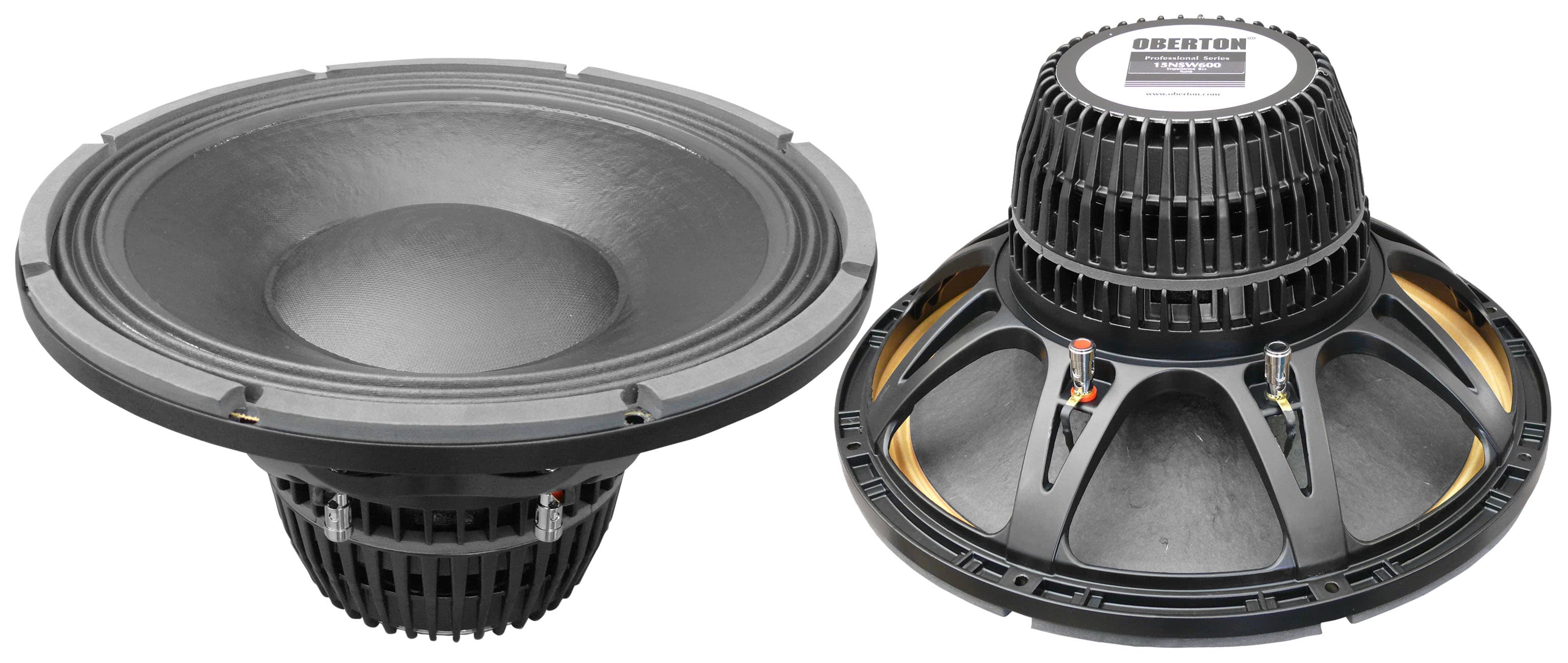

Oberton
15NSW600
15"
Xmax14.3mm0%
Qts0.29-14%
BL23.4Tm-4%
Vas148.4L+8%
Qes0.3-16%
78%
Similarity
Oberton
15NXB1201
15"
Xmax12mm-16%
Qts0.32-5%
BL23.6Tm-3%
Vas111.9L-18%
Qes0.34-6%
78%
Similarity
CIARE
CSD154-22
15"
Xmax13mm-9%
Qts0.33-3%
BL18.4Tm-25%
Vas129L-6%
Qes0.35-3%
77%
Similarity
£329.84
B&C
15SW100
15"
Xmax12.5mm-12%
Qts0.31-9%
BL25.6Tm+5%
Vas110L-20%
Qes0.34-6%
76%
Similarity
£329.00
FaitalPRO
15XL1400
15"
Xmax12.9mm-9%
Qts0.33-3%
BL26.7Tm+9%
Vas91.2L-33%
Qes0.34-6%
76%
Similarity
£250.89
Eminence
LAB 15
15"
Xmax11.8mm-17%
Qts0.35+3%
BL26.7Tm+9%
Vas103.6L-24%
Qes0.37+3%
74%
Similarity
£293.57
FaitalPRO
15HP1060
15"
Xmax12.4mm-13%
Qts0.31-9%
BL24.8Tm+2%
Vas100.3L-27%
Qes0.32-11%
73%
Similarity
Oberton
15XB1201
15"
Xmax12mm-16%
Qts0.31-9%
BL23.9Tm-2%
Vas108.5L-21%
Qes0.32-11%
