15-inch LF driver · CSD series · 102 mm voice coil · 1,000 W
CIARE CSD154-22 2Ω
2 Ω · 25–200 Hz
No current price
- Fs
- 31Hz
- Xmax
- 13mm
- SPL
- 92dB
- Pe
- 1000W
- BL
- 18.4T·m
- Vd
- 975cm³
- Qts
- 0.33
- Vas
- 129L
CIARE CSD154-22 is a 15-inch 2 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 31 Hz, Qts 0.33, Vas 129 L, Xmax 13 mm, sensitivity 92.4 dB, plus 975 cm³ Vd and 89 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 31Hz
- Qts
- 0.33
- Qes
- 0.35
- Qms
- 5.2
- Vas
- 129L
- Re
- 3.3Ω
- Le
- 0.93mH
Motor and cone
- BL
- 18.4T·m
- Sd
- 750cm²
- Mms
- 184g
- Xmax
- 13mm
- Vd †
- 975cm³
- Voice coil
- 102mm
Power and response
- Sensitivity †
- 92.4dB
- Manufacturer sensitivity
- 95.5dB
- Power
- 1000W
- Nominal power
- 1000W
- Impedance
- 2Ω
- Range
- 25–200Hz
- EBP †
- 89 · Sealed or vented
Size and mounting
- Diameter
- 388mm
- Cutout
- 350mm
- Bolt circle
- 368mm
- Depth
- 198mm
- Weight
- 16.4kg
Other published values
- Cms
- 0.14mm/N
- Power Program
- 2000
Sensitivity shows 92.4 dB, calculated from the T/S values. CIARE publishes 95.5 dB, 3.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else CIARE lists
LF · Primary · 15″
- BL
- 18.4T·m
- Fs
- 31Hz
- Le
- 0.93mH
- Re
- 3.3Ω
- Sd
- 750cm²
- Cms
- 0.14mm/N
- Mms
- 184g
- Qes
- 0.35
- Qms
- 5.2
- Qts
- 0.33
- SPL
- 92.4dB
- Vas
- 129L
- Xmax
- 13mm
- Power
- 1000W
- Impedance
- 2Ω
- Sensitivity
- 95.5dB
- Low limit
- 25Hz
- Nominal power
- 1000W
- Power Program
- 2000
- Calculated sensitivity †
- 92.4dB
- High limit
- 200Hz
- Manufacturer sensitivity
- 95.5dB
- Voice coil
- 102mm
- Weight
- 16.4kg
- Diameter
- 388mm
- Depth
- 198mm
- Cutout
- 350mm
- Bolt circle
- 368mm
02
Compare
Same-size drivers, compared with the CSD154-22. Clear differences are green when better and red when worse.
This driverCSD154-22
Best price
–
Fs
31 Hz
Qts
0.33
Vas
129 L
BL
18.4 T·m
Xmax
13 mm
Sensitivity
92.4 dB
Power
1000 W
SB AudienceROSSO-15W400
£134.56Fs44 Hz +42%, worse
Qts0.33 –
Vas140.1 L +9%
BL21.5 T·m +17%, better
Xmax8.3 mm −36%, worse
Sensitivity97.5 dB +5.1, better
REDCATT152FIND-2
£159.51Fs44 Hz +42%, worse
Qts0.37 +12%, worse
Vas128.5 L –
BL18.3 T·m –
Xmax4.5 mm −66%, worse
Sensitivity96.6 dB +4.2, better
FaitalPRO15FH530
£200.12Fs39 Hz +26%, worse
Qts0.35 +6%
Vas140.6 L +9%
BL20.7 T·m +13%, better
Xmax9.3 mm −29%, worse
Sensitivity95.7 dB +3.3, better
Beyma15MCB700
£207.83Fs44 Hz +42%, worse
Qts0.34 +3%
Vas148 L +15%, worse
BL20 T·m +9%
Xmax7 mm −46%, worse
Sensitivity97.5 dB +5.1, better
Beyma15LEX1000FE
£210.85Fs41 Hz +32%, worse
Qts0.34 +3%
Vas116 L −10%, better
BL23.2 T·m +26%, better
Xmax11 mm −15%, worse
Sensitivity95.4 dB +3, better
B&C15NDL88
£225.24Fs45 Hz +45%, worse
Qts0.34 +3%
Vas126 L –
BL20.1 T·m +9%
Xmax8 mm −38%, worse
Sensitivity97.1 dB +4.7, better
BMS15C262
£254.59Fs43 Hz +37%, worse
Qts0.34 +3%
Vas138 L +7%
BL20.6 T·m +12%, better
Xmax2.5 mm −81%, worse
Sensitivity96.7 dB +4.3, better
FaitalPRO15HP1030
£263.75Fs40 Hz +29%, worse
Qts0.34 +3%
Vas95 L −26%, better
BL24.3 T·m +32%, better
Xmax12.4 mm −4%
Sensitivity94.4 dB +2, better
Beyma15LEX1600FE
£276.10Fs38 Hz +23%, worse
Qts0.33 –
Vas106 L −18%, better
BL25.8 T·m +40%, better
Xmax13 mm –
Sensitivity94.4 dB +2, better
FaitalPRO15HP1060
£293.57Fs40 Hz +29%, worse
Qts0.34 +3%
Vas76.3 L −41%, better
BL20.7 T·m +13%, better
Xmax12.4 mm −4%
Sensitivity93.5 dB +1.1
Sica15 S 4 PL
£300.59Fs40 Hz +27%, worse
Qts0.32 −3%
Vas127.6 L –
BL22.5 T·m +22%, better
Xmax10 mm −23%, worse
Sensitivity95.8 dB +3.4, better
Dayton AudioRSS390HO-4
£301.43Fs22 Hz −31%, better
Qts0.32 −3%
Vas168 L +30%, worse
BL19.8 T·m +8%
Xmax12 mm −8%
Sensitivity88.8 dB −3.6, worse

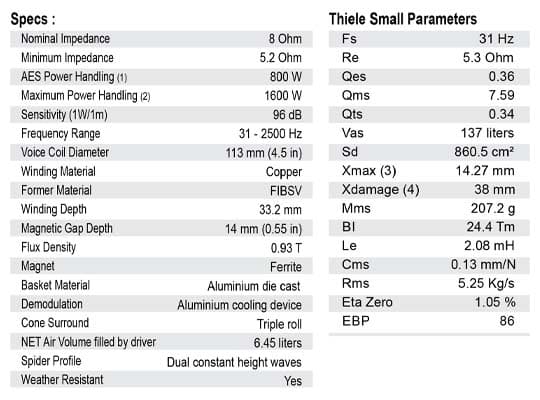

SB AudienceNERO-15SW800
