Eighteen Sound 15NCX910N 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Eighteen Sound
Eighteen Sound 15NCX910N
Eighteen Sound 15NCX910N is a 15" 8 ohm LF driver. The validated T/S data includes Fs 55Hz, Qts 0.33, Vas 107L, Xmax 7mm, sensitivity 99.2dB, plus 617cm³ Vd and 162 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
Sensitivity
99.2dB
EBP
162
Vented alignment
Vd
617cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

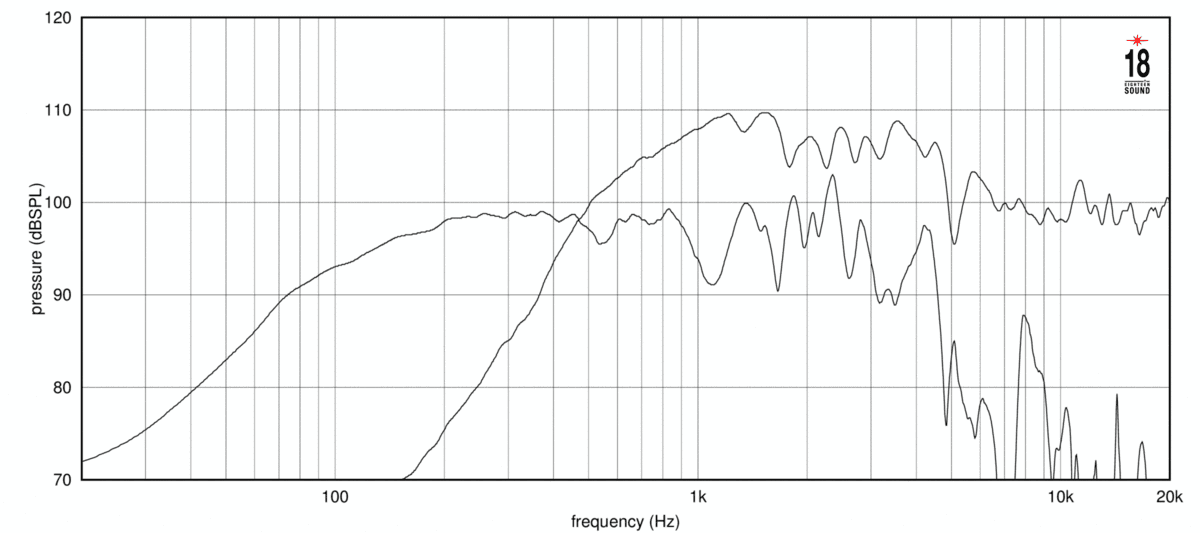

frequency response
Frequency response
240 plotted pointsMedium confidence1,875 selected pixels of 2,100 - Trace datasheet-response-trace-poc/v1

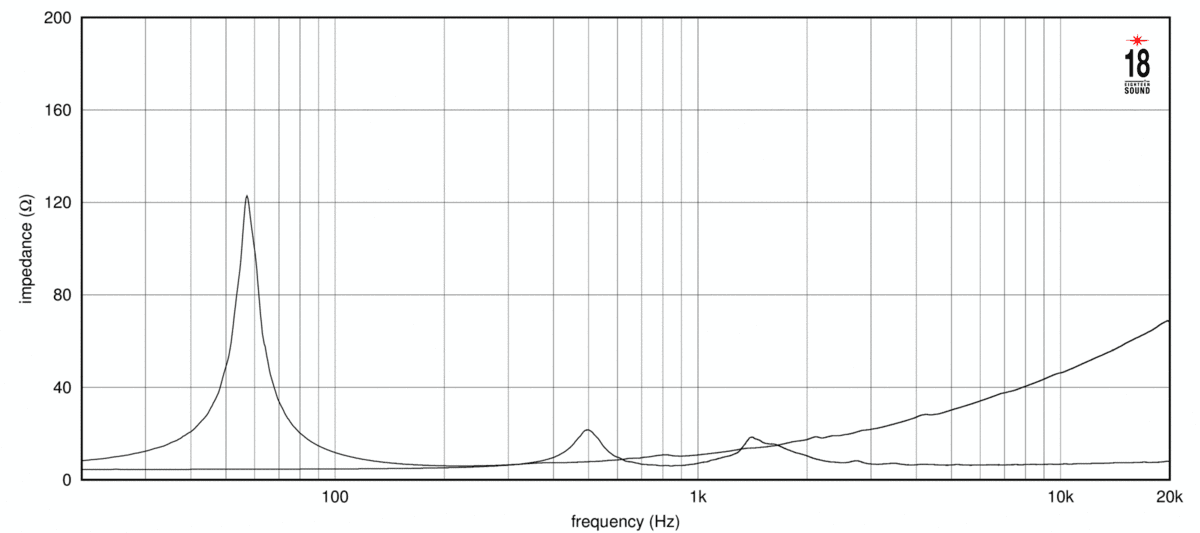

impedance
Impedance response
240 plotted pointsMedium confidence1,378 selected pixels of 1,402
T/S Parameters
Valid
Fs55Hz
Qts0.33
Qes0.34
Qms8.2
Vas107.0L
Re5.0Ω
Le1.10mH
BL21.0Tm
Sd881cm²
Mms86g
Xmax7.0mm
SPL99dB
Impedance8Ω
F Low50Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.5kg
Diameter393.0mm
Overall Depth205.0mm
Cutout Diameter360.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
15NCX910N
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
£497.18
Eighteen Sound
15NCX910
15"
Xmax7mm0%
Qts0.330%
BL21Tm0%
Vas107L0%
Qes0.340%
100%
Similarity
Eighteen Sound
15NCX910BE
15"
Xmax7mm0%
Qts0.330%
BL21Tm0%
Vas107L0%
Qes0.340%
93%
Similarity
£138.54
B&C
15CL76
15"
Xmax7mm0%
Qts0.330%
BL21Tm0%
Vas135L+26%
Qes0.340%
92%
Similarity
£280.84
Beyma
15MC700ND
15"
Xmax7mm0%
Qts0.31-6%
BL22.6Tm+8%
Vas105L-2%
Qes0.340%
91%
Similarity
Oberton
15MB35
15"
Xmax6.8mm-4%
Qts0.34+2%
BL20.1Tm-4%
Vas115.1L+8%
Qes0.35+3%
89%
Similarity
£238.26
RCF
MB15X351
15"
Xmax7mm0%
Qts0.31-6%
BL22.8Tm+9%
Vas114L+7%
Qes0.33-3%
83%
Similarity
£205.89
Beyma
15MCB700
15"
Xmax7mm0%
Qts0.34+3%
BL20Tm-5%
Vas148L+38%
Qes0.36+6%
82%
Similarity
Sica
15 PF 3
15"
Xmax8mm+14%
Qts0.31-6%
BL21.9Tm+5%
Vas117.6L+10%
Qes0.33-3%
81%
Similarity
Oberton
15HCX3572
15"
Xmax7.3mm+4%
Qts0.34+3%
BL18.8Tm-10%
Vas140.7L+31%
Qes0.35+3%
81%
Similarity
£230.60
B&C
15NDL88
15"
Xmax8mm+14%
Qts0.34+3%
BL20.1Tm-4%
Vas126L+18%
Qes0.36+6%
80%
Similarity
£243.16
Eighteen Sound
15NW530
15"
Xmax7.5mm+7%
Qts0.330%
BL22Tm+5%
Vas154L+44%
Qes0.35+3%
80%
Similarity
SB Audience
ROSSO-15W400
15"
Xmax8.3mm+18%
Qts0.330%
BL21.5Tm+2%
Vas140.1L+31%
Qes0.340%
