- Net volume
- 120L
- Tuning
- 48Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
15-inch LF driver · 1,000 W
Eighteen Sound 15LW1410 4Ω
50–2500 Hz
No current price
- Fs
- 43Hz
- Xmax
- 8.5mm
- SPL
- 96dB
- Pe
- 1000W
- BL
- 20.7T·m
- Vd
- 749cm³
- Qts
- 0.34
- Vas
- 100L

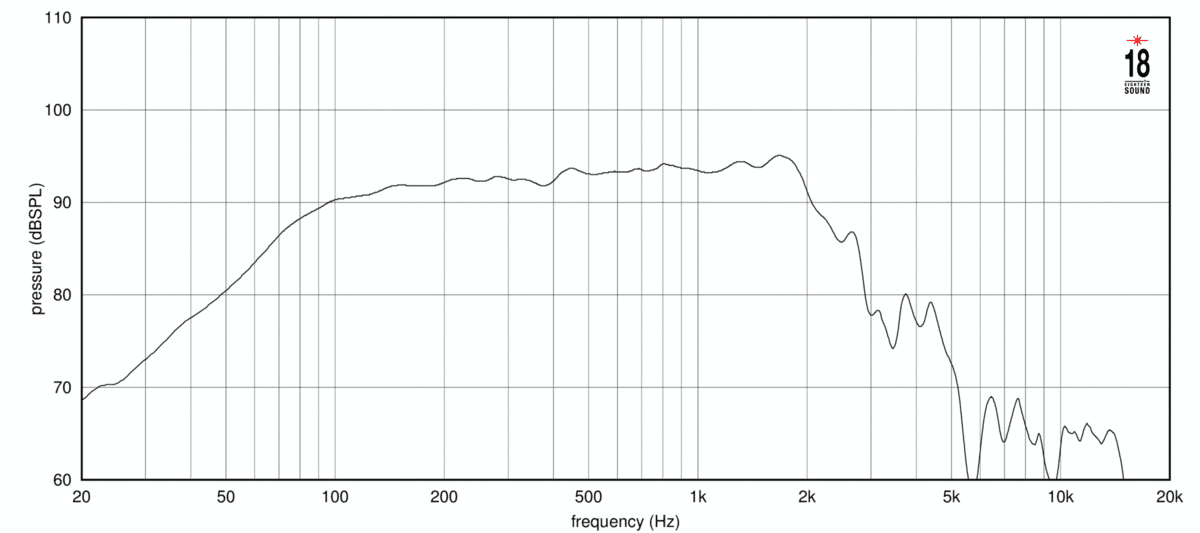

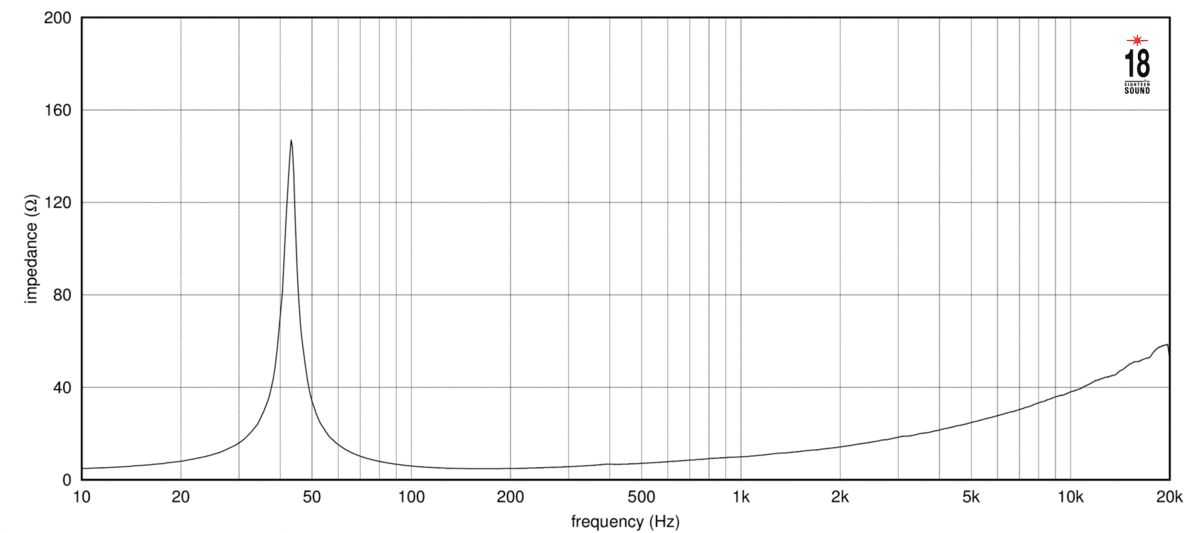

Published graphs

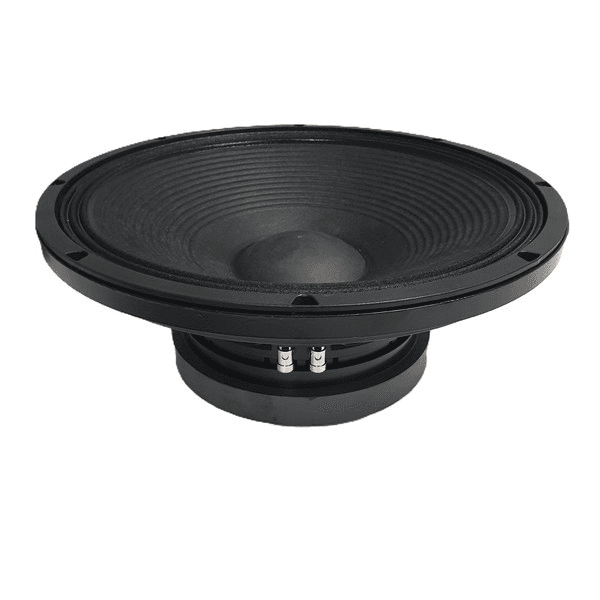

Eighteen Sound 15LW1410 is a 15-inch 4 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.34, Vas 99.8 L, Xmax 8.5 mm, sensitivity 95.6 dB, plus 749 cm³ Vd and 123 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 43Hz
- Qts
- 0.34
- Qes
- 0.35
- Qms
- 14.4
- Vas
- 99.8L
- Re
- 3.7Ω
- Le
- 0.77mH
Motor and cone
- BL
- 20.7T·m
- Sd
- 881cm²
- Mms
- 150g
- Xmax
- 8.5mm
- Vd †
- 749cm³
Power and response
- Sensitivity †
- 95.6dB
- Manufacturer sensitivity
- 96.5dB
- Power
- 1000W
- Nominal power
- 1000W
- Impedance
- 4Ω
- Range
- 50–2500Hz
- EBP †
- 123 · Leans vented
Size and mounting
- Diameter
- 387mm
- Cutout
- 353mm
- Bolt circle
- 370mm
- Depth
- 163mm
- Weight
- 12.9kg
Other published values
- Power Program
- 2000
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 15″
- BL
- 20.7T·m
- Fs
- 43Hz
- Le
- 0.77mH
- Re
- 3.7Ω
- Sd
- 881cm²
- Mms
- 150g
- Qes
- 0.35
- Qms
- 14.4
- Qts
- 0.34
- SPL
- 95.6dB
- Vas
- 99.8L
- Xmax
- 8.5mm
- Power
- 1000W
- Impedance
- 4Ω
- Sensitivity
- 96.5dB
- Low limit
- 50Hz
- Nominal power
- 1000W
- Power Program
- 2000
- Calculated sensitivity †
- 95.6dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 96.5dB
- Weight
- 12.9kg
- Diameter
- 387mm
- Depth
- 163mm
- Cutout
- 353mm
- Bolt circle
- 370mm
02
Designs
What Eighteen Sound suggests for the 15LW1410. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 15LW1410 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 15LW1410. Clear differences are green when better and red when worse.
This driver15LW1410
Best price
–
Fs
43 Hz
Qts
0.34
Vas
99.8 L
BL
20.7 T·m
Xmax
8.5 mm
Sensitivity
95.6 dB
Power
1000 W
SB AudienceROSSO-15W400
£134.56Fs44 Hz –
Qts0.33 –
Vas140.1 L +40%, worse
BL21.5 T·m +4%
Xmax8.3 mm –
Sensitivity97.5 dB +1.9
FaitalPRO15HP1010
£161.93Fs40 Hz −7%
Qts0.37 +9%
Vas107.5 L +8%
BL22 T·m +6%
Xmax9.8 mm +15%, better
Sensitivity94.6 dB −1
SB AudienceROSSO-15MW500
£173.91Fs42 Hz –
Qts0.33 –
Vas121.3 L +22%, worse
BL23.2 T·m +12%, better
Xmax8.4 mm –
Sensitivity96.1 dB +0.5
FaitalPRO15FH530
£201.69Fs39 Hz −9%
Qts0.35 –
Vas140.6 L +41%, worse
BL20.7 T·m –
Xmax9.3 mm +9%
Sensitivity95.7 dB –
Beyma15MCB700
£208.98Fs44 Hz –
Qts0.34 –
Vas148 L +48%, worse
BL20 T·m −3%
Xmax7 mm −18%, worse
Sensitivity97.5 dB +1.9
B&C15NDL88
£227.00Fs45 Hz +5%
Qts0.34 –
Vas126 L +26%, worse
BL20.1 T·m –
Xmax8 mm −6%
Sensitivity97.1 dB +1.5
Beyma15MC700ND
£228.54Fs49 Hz +14%, worse
Qts0.31 −9%
Vas105 L +5%
BL22.6 T·m +9%
Xmax7 mm −18%, worse
Sensitivity97.6 dB +2, better
Sica15 PF 3
£236.24Fs45 Hz +5%
Qts0.31 −9%
Vas117.6 L +18%, worse
BL21.9 T·m +6%
Xmax8 mm −6%
Sensitivity97.1 dB +1.5
RCFMB15X351
£238.26Fs46 Hz +7%
Qts0.31 −9%
Vas114 L +14%, worse
BL22.8 T·m +10%, better
Xmax7 mm −18%, worse
Sensitivity97.3 dB +1.7
Eighteen Sound15NW530
£243.16Fs43 Hz –
Qts0.33 –
Vas154 L +54%, worse
BL22 T·m +6%
Xmax7.5 mm −12%, worse
Sensitivity97.5 dB +1.9
Sica15 PFS 4
£269.20Fs39 Hz −9%
Qts0.34 –
Vas103.9 L +4%
BL24.2 T·m +17%, better
Xmax8 mm −6%
Sensitivity94.2 dB −1.4
FaitalPRO15HP1060
£293.57Fs40 Hz −7%
Qts0.34 –
Vas76.3 L −24%, better
BL20.7 T·m –
Xmax12.4 mm +46%, better
Sensitivity93.5 dB −2.1, worse
Sica15 K 4 PL
£308.02Fs47 Hz +8%
Qts0.30 −12%, better
Vas102.3 L –
BL23.9 T·m +16%, better
Xmax8 mm −6%
Sensitivity97.2 dB +1.6
B&C15CXN88
£494.86Fs47 Hz +9%
Qts0.30 −12%, better
Vas124 L +24%, worse
BL20.1 T·m –
Xmax9.5 mm +12%, better
Sensitivity98.2 dB +2.6, better
Eighteen Sound15NCX910
£497.18Fs55 Hz +28%, worse
Qts0.33 –
Vas107 L +7%
BL21 T·m –
Xmax7 mm −18%, worse
Sensitivity99.2 dB +3.6, better
B&C15RBX100
No current priceFs42 Hz –
Qts0.35 –
Vas105 L +5%
BL21.3 T·m –
Xmax9 mm +6%
Sensitivity95.1 dB −0.5
Eighteen Sound15NCX910BE
No current priceFs55 Hz +28%, worse
Qts0.33 –
Vas107 L +7%
BL21 T·m –
Xmax7 mm −18%, worse
Sensitivity99.2 dB +3.6, better
Eighteen Sound15NCX910N
No current priceFs55 Hz +28%, worse
Qts0.33 –
Vas107 L +7%
BL21 T·m –
Xmax7 mm −18%, worse
Sensitivity99.2 dB +3.6, better
Oberton15MB35
No current priceFs48 Hz +11%, worse
Qts0.34 –
Vas115.1 L +15%, worse
BL20.1 T·m −3%
Xmax6.8 mm −21%, worse
Sensitivity97.6 dB +2, better
Sica15 PNS 4
No current priceFs37 Hz −13%, better
Qts0.35 –
Vas116.3 L +17%, worse
BL22.7 T·m +10%
Xmax9 mm +6%
Sensitivity94 dB −1.6
PeerlessNCP-1540R01-08
No current priceFs54 Hz +26%, worse
Qts0.32 −6%
Vas86.5 L −13%, better
BL23.9 T·m +15%, better
Xmax8.2 mm −4%
Sensitivity98.2 dB +2.6, better
P.Audio15NX-76MB
No current priceFs40 Hz −7%
Qts0.34 –
Vas115.6 L +16%, worse
BL21.4 T·m +3%
Xmax4.8 mm −44%, worse
Sensitivity95.3 dB –
CelestionFTR15-4080HDX
No current priceFs40 Hz −7%
Qts0.32 −6%
Vas111.2 L +11%, worse
BL23.1 T·m +11%, better
Xmax10.1 mm +19%, better
Sensitivity95 dB −0.6
Oberton15HCX3572
No current priceFs46 Hz +8%
Qts0.34 –
Vas140.7 L +41%, worse
BL18.8 T·m −9%
Xmax7.3 mm −15%, worse
Sensitivity98 dB +2.4, better
P.Audio15FT-115XB
No current priceFs35 Hz −19%, better
Qts0.33 –
Vas103.8 L +4%
BL26.8 T·m +29%, better
Xmax9.5 mm +12%, better
Sensitivity93.2 dB −2.4, worse
P.AudioP150/2227
No current priceFs45 Hz +5%
Qts0.34 –
Vas117.9 L +18%, worse
BL22.5 T·m +9%
Xmax5.5 mm −35%, worse
Sensitivity96.9 dB +1.3
CelestionTSQ1535
No current priceFs50 Hz +16%, worse
Qts0.40 +17%, worse
Vas94.0 L −6%
BL20.6 T·m –
Xmax8 mm −6%
Sensitivity96.4 dB +0.8
Oberton15MB500
No current priceFs42 Hz −3%
Qts0.34 –
Vas161.5 L +62%, worse
BL18.5 T·m −10%, worse
Xmax7.8 mm −9%
Sensitivity97.2 dB +1.6
Oberton15NXL701
No current priceFs43 Hz –
Qts0.30 −12%, better
Vas127.1 L +27%, worse
BL21.7 T·m +5%
Xmax9.3 mm +9%
Sensitivity97.3 dB +1.7
Oberton15NCX
No current priceFs44 Hz –
Qts0.36 +6%
Vas138.4 L +39%, worse
BL18.6 T·m −10%, worse
Xmax7.8 mm −9%
Sensitivity96.9 dB +1.3
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
