Celestion TSQ1535
Celestion TSQ1535 is a 15" 8 ohm LF driver rated at 900W RMS. The validated T/S data includes Fs 50Hz, Qts 0.40, Vas 94.0L, Xmax 8mm, sensitivity 96.4dB, plus 684cm³ Vd and 116 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
900W
Sensitivity
96.4dB
98.2dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
116
Vented alignment
Vd
684cm³

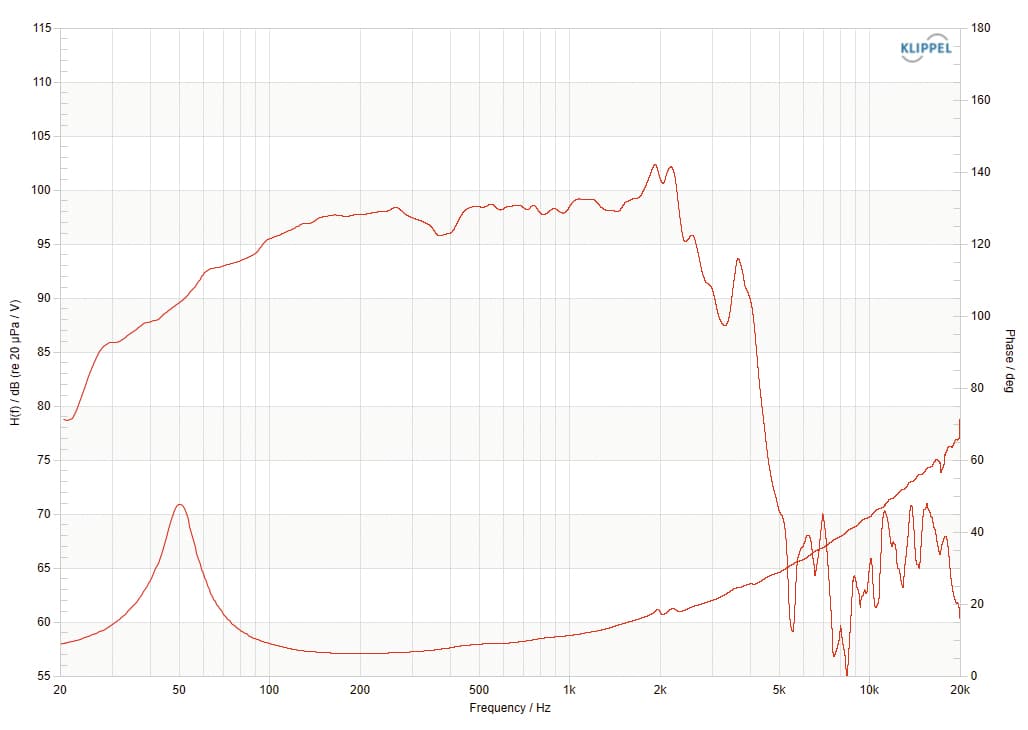

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response99 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
99 plotted pointsMedium confidence103 selected pixels of 211
T/S Parameters
Valid
Fs50Hz
Qts0.40
Qes0.43
Qms4.9
Vas94.0L
Re5.2Ω
Le0.88mH
BL20.6Tm
Sd855cm²
Mms112g
Xmax8.0mm
SPL96dB
Power900W
Impedance8Ω
Voice Coil90mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.7kg
Diameter393.0mm
Overall Depth175.2mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
TSQ1535
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
P.Audio
15FT-100SW
15"
Xmax7.5mm-6%
Qts0.4+1%
BL23.5Tm+14%
Vas90L-4%
Qes0.42-3%
87%
Similarity
£189.00
B&C
15PS100
15"
Xmax8mm0%
Qts0.43+8%
BL21.2Tm+3%
Vas103L+10%
Qes0.47+9%
87%
Similarity
£181.46
B&C
15FW88
15"
Xmax8mm0%
Qts0.43+8%
BL19.3Tm-7%
Vas103.7L+10%
Qes0.45+4%
87%
Similarity
Beyma
115LX60V28
15"
Xmax8mm0%
Qts0.44+11%
BL21.1Tm+2%
Vas105.5L+12%
Qes0.45+4%
86%
Similarity
£152.08
RCF
L15P540
15"
Xmax7mm-12%
Qts0.39-2%
BL21.4Tm+4%
Vas100L+6%
Qes0.41-5%
80%
Similarity
£327.41

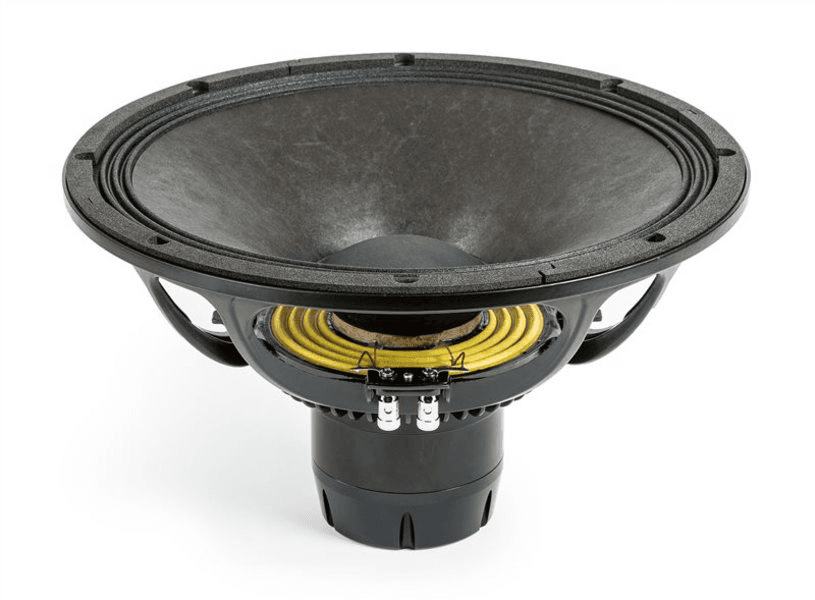

Eighteen Sound
