Eighteen Sound 15TLW3000 4Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /15TLW3000

Media

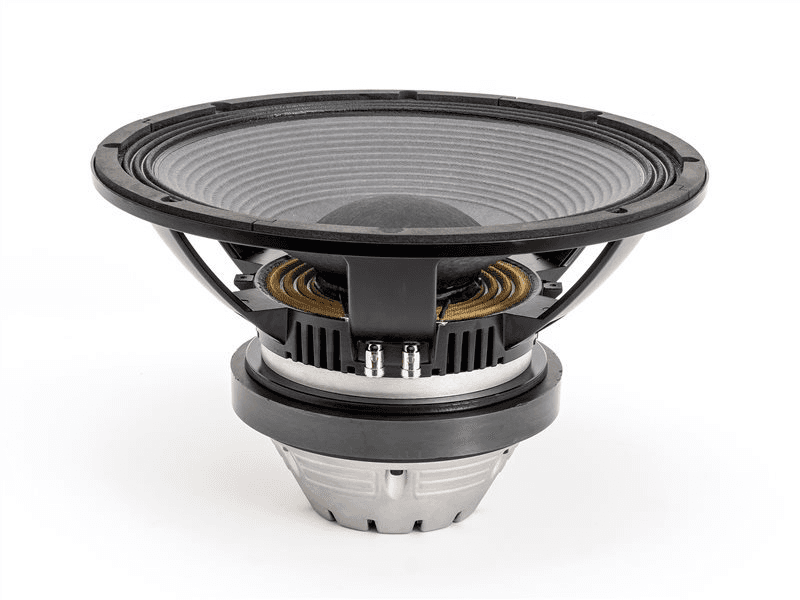

Eighteen Sound 15TLW3000 15 inch 4 ohm loudspeaker driver

Overview

LF Driver
Eighteen Sound

Eighteen Sound 15TLW3000

Eighteen Sound 15TLW3000 is a 15" 4 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 44Hz, Qts 0.39, Vas 80L, Xmax 9mm, sensitivity 94.2dB, plus 793cm³ Vd and 107 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
15"
Impedance
4Ω
RMS Power
1500W
Sensitivity
94.2dB
EBP
107
Vented alignment
Vd
793cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
96908478721k2k5k10kHzdBfrequency response
frequency response188 ptsp2medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v2
    188 plotted pointsSource file SHA-256 af1495705c10…Medium confidence2,584 selected pixels of 2,584
    Manufacturer datasheet, page 2

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 af1495705c10…Medium confidence5,457 selected pixels of 7,664
    Manufacturer datasheet, page 2

T/S Parameters

Valid
Canonical
Fs44Hz
Qts0.39
Qes0.41
Qms9.8
Vas80.0L
Re2.5Ω
Le1.00mH
BL18.0Tm
Sd881cm²
Mms177g
Xmax9.0mm
SPL94dB
Power1500W
Power Nominal1500W
Impedance4Ω
F Low48Hz
F High2200Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight12.5kg
Diameter393.0mm
Overall Depth245.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter371.0mm

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
Eighteen Sound 15TLW3000 15 inch 4 ohm loudspeaker driver similar-driver reference
Reference
Eighteen Sound
15TLW3000
15"
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

Celestion TSQ1535 15 inch 8 ohm loudspeaker driver similar driver
78%
Similarity
Celestion
TSQ1535
15"
Xmax8mm-11%
Qts0.4+2%
BL20.6Tm+15%
Vas94L+18%
Qes0.43+5%

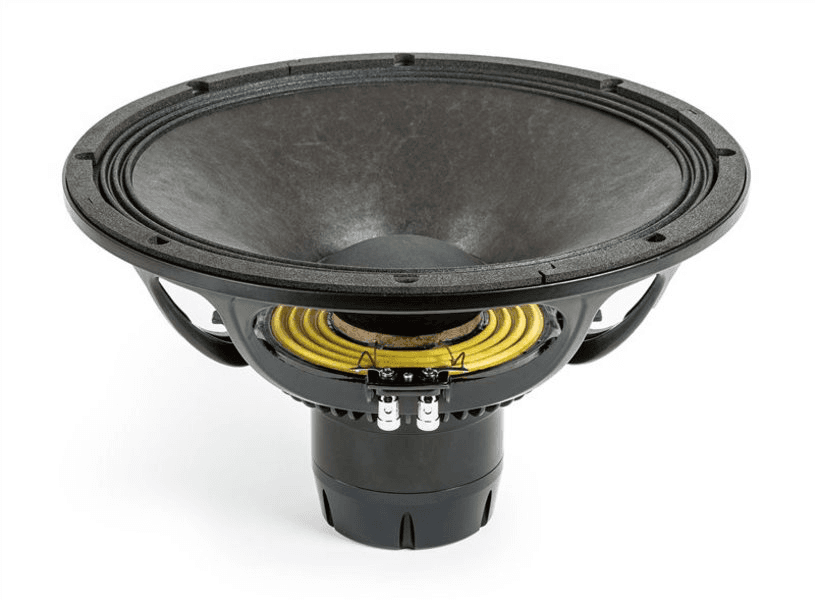

Eighteen Sound 15NTLW3500 15 inch 4 ohm loudspeaker driver similar driver
76%
Similarity
Eighteen Sound
15NTLW3500
15"
Xmax8.3mm-8%
Qts0.4+3%
BL15.8Tm-12%
Vas115L+44%
Qes0.410%
RCF L15P540 15 inch 8 ohm loudspeaker driver similar driver
72%
Similarity
£152.08
RCF
L15P540
15"
Xmax7mm-22%
Qts0.390%
BL21.4Tm+19%
Vas100L+25%
Qes0.410%
B&C 15FW88 15 inch 8 ohm loudspeaker driver similar driver
71%
Similarity
£181.46
B&C
15FW88
15"
Xmax8mm-11%
Qts0.43+10%
BL19.3Tm+7%
Vas103.7L+30%
Qes0.45+10%
P.Audio 15FT-100SW 15 inch 8 ohm loudspeaker driver similar driver
70%
Similarity
P.Audio
15FT-100SW
15"
Xmax7.5mm-17%
Qts0.4+3%
BL23.5Tm+31%
Vas90L+13%
Qes0.42+2%
PRV Audio 15W1800 15 inch 8 ohm loudspeaker driver similar driver
69%
Similarity
£236.58
PRV Audio
15W1800
15"
Xmax9.5mm+6%
Qts0.42+8%
BL23.2Tm+29%
Vas100.4L+26%
Qes0.43+5%
FaitalPRO 15HP1010 15 inch 8 ohm loudspeaker driver similar driver
69%
Similarity
£161.93
FaitalPRO
15HP1010
15"
Xmax9.8mm+8%
Qts0.37-5%
BL22Tm+22%
Vas107.5L+34%
Qes0.38-7%
Beyma 15LEX1000ND 15 inch 8 ohm loudspeaker driver similar driver
69%
Similarity
£288.24
Beyma
15LEX1000ND
15"
Xmax10mm+11%
Qts0.37-5%
BL21.9Tm+22%
Vas113L+41%
Qes0.410%
P.Audio 15NT-100SW 15 inch 8 ohm loudspeaker driver similar driver
67%
Similarity
P.Audio
15NT-100SW
15"
Xmax9mm0%
Qts0.43+10%
BL21.2Tm+18%
Vas115.7L+45%
Qes0.46+12%
Sica 15 PNS 4 15 inch 8 ohm loudspeaker driver similar driver
65%
Similarity
Sica
15 PNS 4
15"
Xmax9mm0%
Qts0.35-10%
BL22.7Tm+26%
Vas116.3L+45%
Qes0.38-7%
B&C 15PS100 15 inch 8 ohm loudspeaker driver similar driver
64%
Similarity
£189.00
B&C
15PS100
15"
Xmax8mm-11%
Qts0.43+10%
BL21.2Tm+18%
Vas103L+29%
Qes0.47+15%
Beyma 115LX60V28 15 inch 8 ohm loudspeaker driver similar driver
64%
Similarity
Beyma
115LX60V28
15"
Xmax8mm-11%
Qts0.44+13%
BL21.1Tm+17%
Vas105.5L+32%
Qes0.45+10%
