Overview
LF Driver
Eighteen Sound

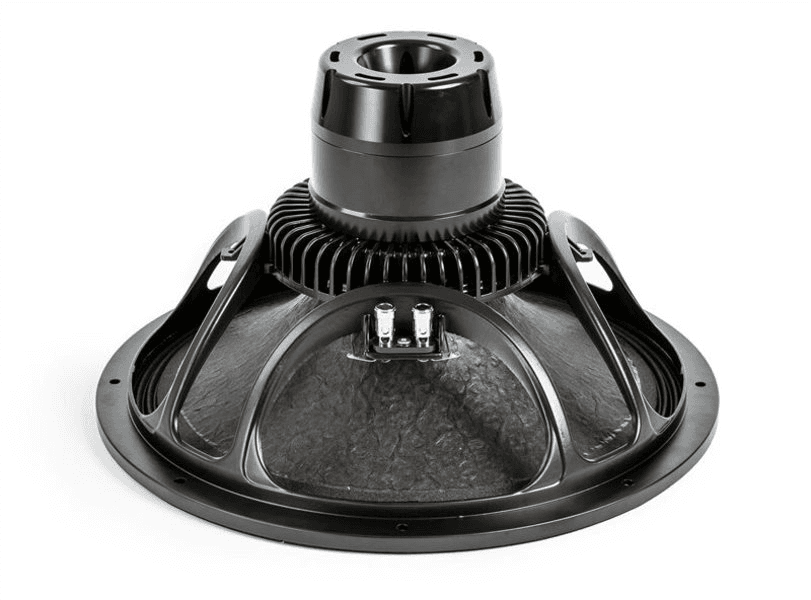

Eighteen Sound 15NTLW3500
Eighteen Sound 15NTLW3500 is a 15" 4 ohm LF driver rated at 900W RMS. The validated T/S data includes Fs 46Hz, Qts 0.40, Vas 115L, Xmax 8.3mm, sensitivity 96.4dB, plus 731cm³ Vd and 112 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
4Ω
RMS Power
900W
Sensitivity
96.4dB
98.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
112
Vented alignment
Vd
731cm³
T/S Parameters
Valid
Fs46Hz
Qts0.40
Qes0.41
Qms9.4
Vas115.0L
Re3.1Ω
Le0.29mH
BL15.8Tm
Sd881cm²
Mms115g
Xmax8.3mm
SPL96dB
Power900W
Power Nominal900W
Impedance4Ω
F Low40Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.1kg
Diameter393.0mm
Overall Depth229.0mm
Cutout Diameter357.0mm
Bolt Circle Diameter371.0mm
