Overview
LF Driver
CIARE

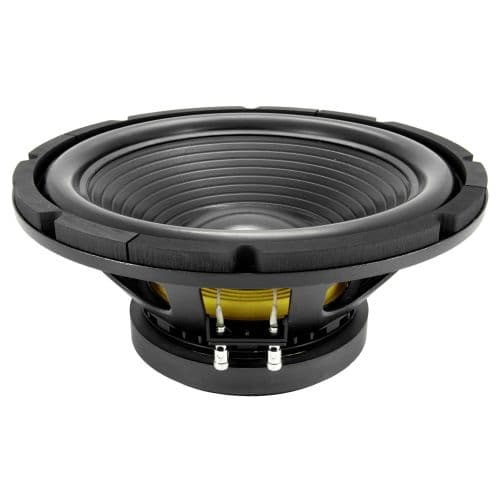

CIARE 15.00SW
CIARE 15.00SW is a 15" 4 ohm LF driver rated at 2000W RMS. The validated T/S data includes Fs 29Hz, Qts 0.41, Vas 113L, Xmax 13.5mm, sensitivity 90dB, plus 1053cm³ Vd and 66 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £226.15.
Size
15"
Impedance
4Ω
RMS Power
2000W
Sensitivity
90.0dB
94.0dBmanufacturer; using T/S-derived value (4.0dB delta).
EBP
66
Either alignment
Vd
1053cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,011 selected pixels of 2,208
T/S Parameters
Valid
Fs29Hz
Qts0.41
Qes0.44
Qms5.4
Vas113.0L
Re3.6Ω
Le2.00mH
BL18.4Tm
Sd780cm²
Mms224g
Xmax13.5mm
SPL90dB
Power2000W
Power Nominal1000W
Impedance4Ω
F Low20Hz
F High200Hz
Voice Coil100mm
Pricing & availability
Price definitionsPrice movement
Best current price
£226.15
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.1kg
Diameter388.0mm
Overall Depth178.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter370.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
15.00SW
15"
Best current price
£226.15
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
28% cheaper£161.93
FaitalPRO
15HP1010
15"
Lower price
Xmax9.8mm-28%
Qts0.37-10%
BL22Tm+20%
Vas107.5L-5%
Qes0.38-14%
83%
Similarity
23% cheaper£173.94
BishopSound
BDP15
15"
Lower price
Xmax12.2mm-10%
Qts0.42+2%
BL21.3Tm+16%
Vas103.4L-9%
Qes0.440%
66%
Similarity
22% cheaper£176.66

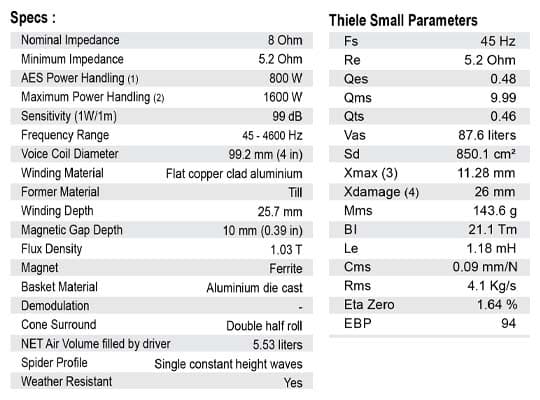

SB Audience
ROSSO-15SW800
15"
Lower price
Xmax11.3mm-16%
Qts0.46+12%
BL21.1Tm+15%
Vas87.6L-22%
Qes0.48+9%
75%
Similarity
10% cheaper£203.94
BishopSound
BWP15/4/V2
15"
Lower price
Xmax10.3mm-24%
Qts0.42+2%
BL21.3Tm+16%
Vas102.3L-9%
Qes0.440%
75%
Similarity
10% cheaper£203.94
BishopSound
BWP15/8/V2
15"
Lower price
Xmax10.3mm-24%
Qts0.42+2%
BL21.3Tm+16%
Vas102.3L-9%
Qes0.440%
58%
Similarity
4% cheaper£218.02
Beyma
15LEX1000FE
15"
Lower price
Xmax11mm-19%
Qts0.34-17%
BL23.2Tm+26%
Vas116L+3%
Qes0.37-16%
59%
Similarity
3% cheaper£220.00
Eminence
KAPPALITE 3015LF
15"
Lower price
Xmax9.6mm-29%
Qts0.46+12%
BL17Tm-8%
Vas150.9L+34%
Qes0.48+9%
51%
Similarity
1% more£229.00
Celestion
FTR15-4080HDX
15"
Higher price
Xmax10.1mm-25%
Qts0.32-22%
BL23.1Tm+25%
Vas111.2L-2%
Qes0.36-19%
56%
Similarity
17% more£264.30
FaitalPRO
15HP1030
15"
Higher price
Xmax12.4mm-8%
Qts0.34-17%
BL24.3Tm+32%
Vas95L-16%
Qes0.35-20%
67%
Similarity
27% more£288.24
Beyma
15LEX1000ND
15"
Higher price
Xmax10mm-26%
Qts0.37-10%
BL21.9Tm+19%
Vas113L0%
Qes0.41-7%
48%
Similarity
30% more£293.57
FaitalPRO
15HP1060
15"
Higher price
Xmax12.4mm-8%
Qts0.31-24%
BL24.8Tm+35%
Vas100.3L-11%
Qes0.32-27%
59%
Similarity
32% more£298.00

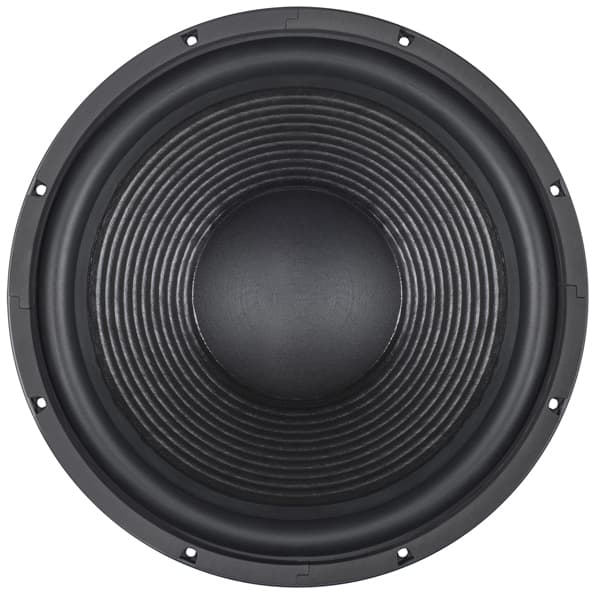

B&C
