15-inch LF driver · FTR15 series · 75 mm voice coil · 400 W

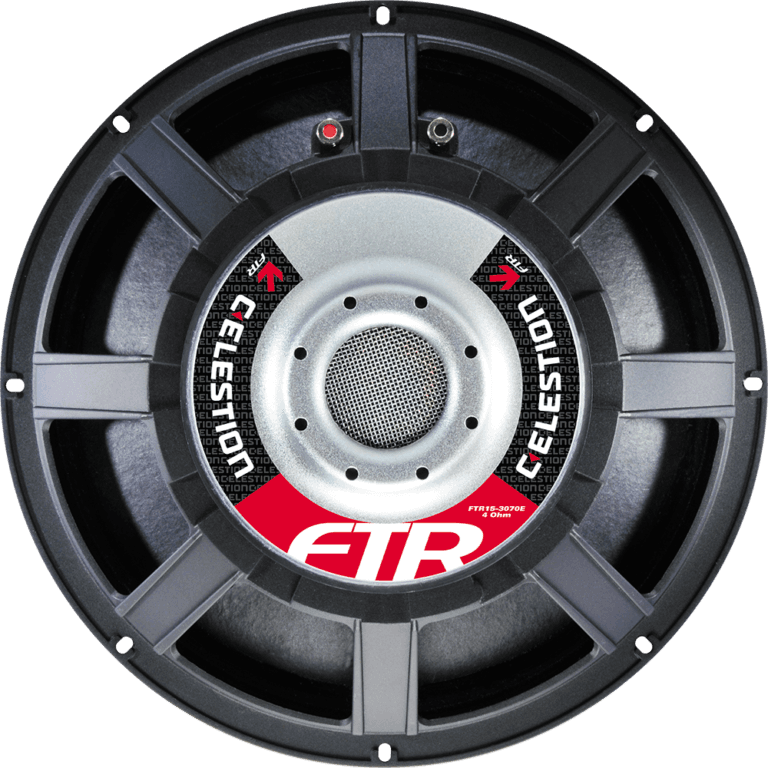

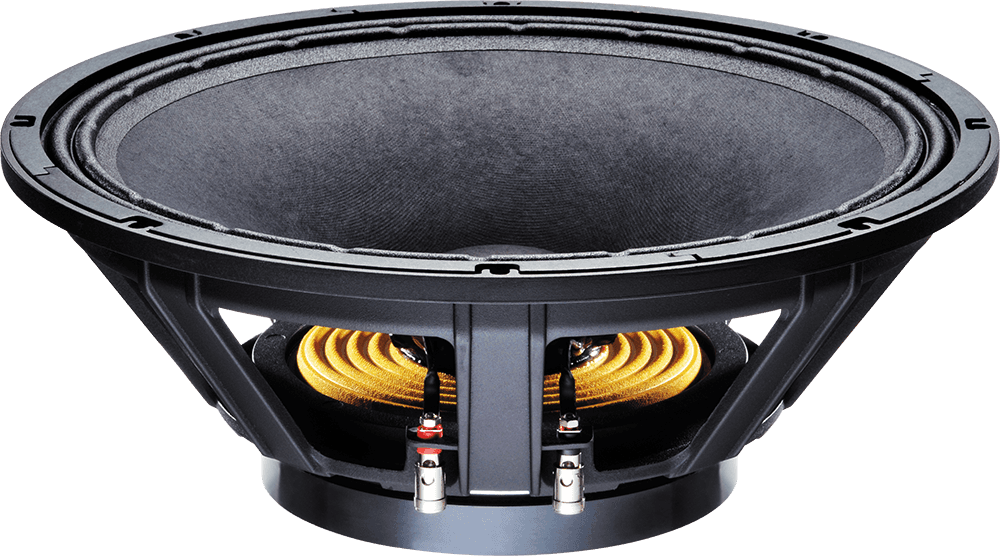

Celestion FTR15-3070E 8Ω
8 Ω · 40–4000 Hz
No price for delivery to the UK
- Fs
- 46Hz
- Xmax
- 7.8mm
- SPL
- 97dB
- Pe
- 400W
- BL
- 17.9T·m
- Vd
- 663cm³
- Qts
- 0.38
- Vas
- 146L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

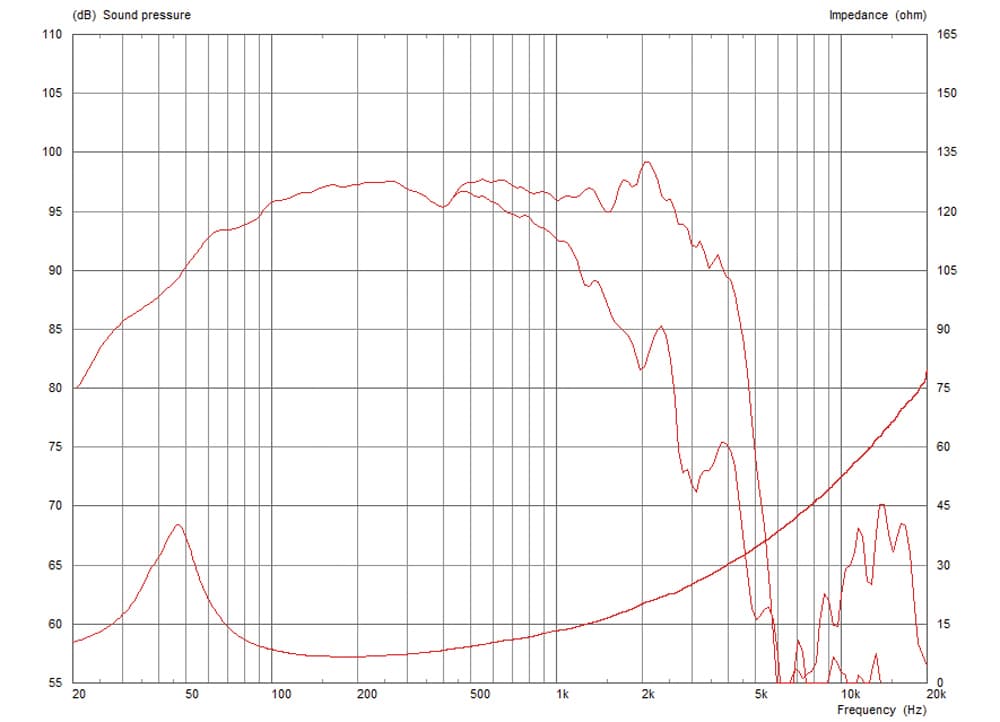

LF frequency response
Frequency response
137 plotted pointsMedium confidence191 selected pixels of 364
Published graphs
Celestion FTR15-3070E is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 46 Hz, Qts 0.38, Vas 145.8 L, Xmax 7.8 mm, sensitivity 97.2 dB, plus 663 cm³ Vd and 108 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 46Hz
- Qts
- 0.38
- Qes
- 0.43
- Qms
- 3.4
- Vas
- 145.8L
- Re
- 5.5Ω
- Le
- 1.21mH
Motor and cone
- BL
- 17.9T·m
- Sd
- 855cm²
- Mms
- 86g
- Xmax
- 7.8mm
- Vd †
- 663cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 97.2dB
- Manufacturer sensitivity
- 97dB
- Power
- 400W
- Impedance
- 8Ω
- Range
- 40–4000Hz
- EBP †
- 108 · Leans vented
Size and mounting
- Diameter
- 385mm
- Cutout
- 351mm
- Bolt circle
- 375mm
- Depth
- 161mm
- Weight
- 6.4kg
Other published values
- Cms
- 0.14mm/N
- Rms
- 7.23kg/s
- Power Program
- 800
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 15″
- BL
- 17.9T·m
- Fs
- 46Hz
- Le
- 1.21mH
- Re
- 5.5Ω
- Sd
- 855cm²
- Cms
- 0.14mm/N
- Mms
- 86g
- Qes
- 0.43
- Qms
- 3.4
- Qts
- 0.38
- Rms
- 7.23kg/s
- SPL
- 97.2dB
- Vas
- 145.8L
- Xmax
- 7.8mm
- Power
- 400W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 40Hz
- Power Program
- 800
- Calculated sensitivity †
- 97.2dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 97dB
- Voice coil
- 75mm
- Weight
- 6.4kg
- Diameter
- 385mm
- Depth
- 161mm
- Cutout
- 351mm
- Bolt circle
- 375mm
