Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverNERO series
SB Audience
SB Audience NERO-15MWN700D
SB Audience NERO-15MWN700D is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 41Hz, Qts 0.46, Vas 145.9L, Xmax 7.3mm, sensitivity 95.4dB, plus 632cm³ Vd and 86 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £205.00.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.4dB
EBP
86
Either alignment
Vd
632cm³

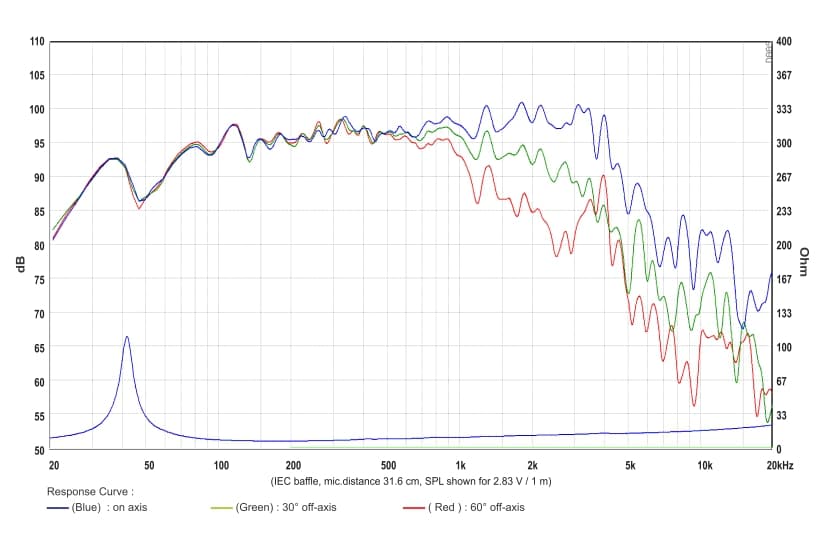

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs41Hz
Qts0.46
Qes0.48
Qms9.1
Vas145.9L
Re5.4Ω
Le0.37mH
BL17.7Tm
Sd866cm²
Mms108g
Xmax7.3mm
SPL95dB
Power700W
Impedance8Ω
Min Impedance5.3Ω
F Low41Hz
F High5800Hz
Voice Coil76mm
Flux Density1.07T
Pricing & availability
Price definitionsPrice movement
Best current price
£205.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

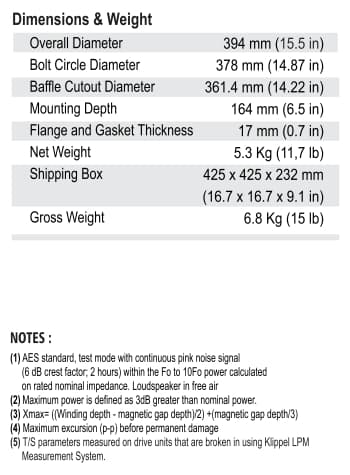

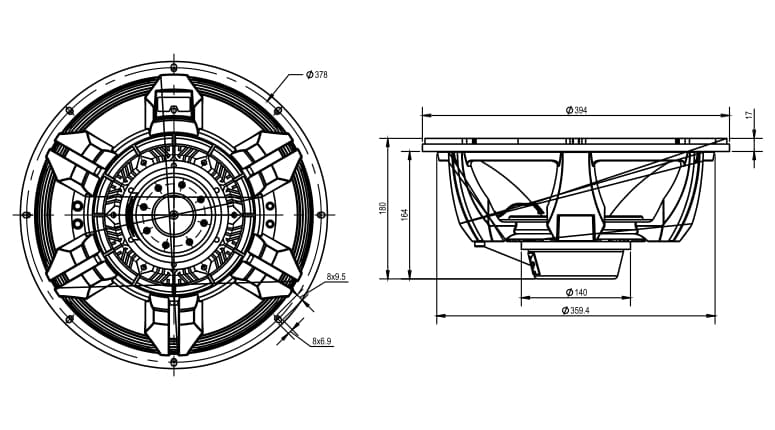

Dimensions & Physical
Weight5.3kg
Diameter394.0mm
Cutout Diameter361.4mm
Bolt Circle Diameter378.0mm
