Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 15 PFS 3 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica

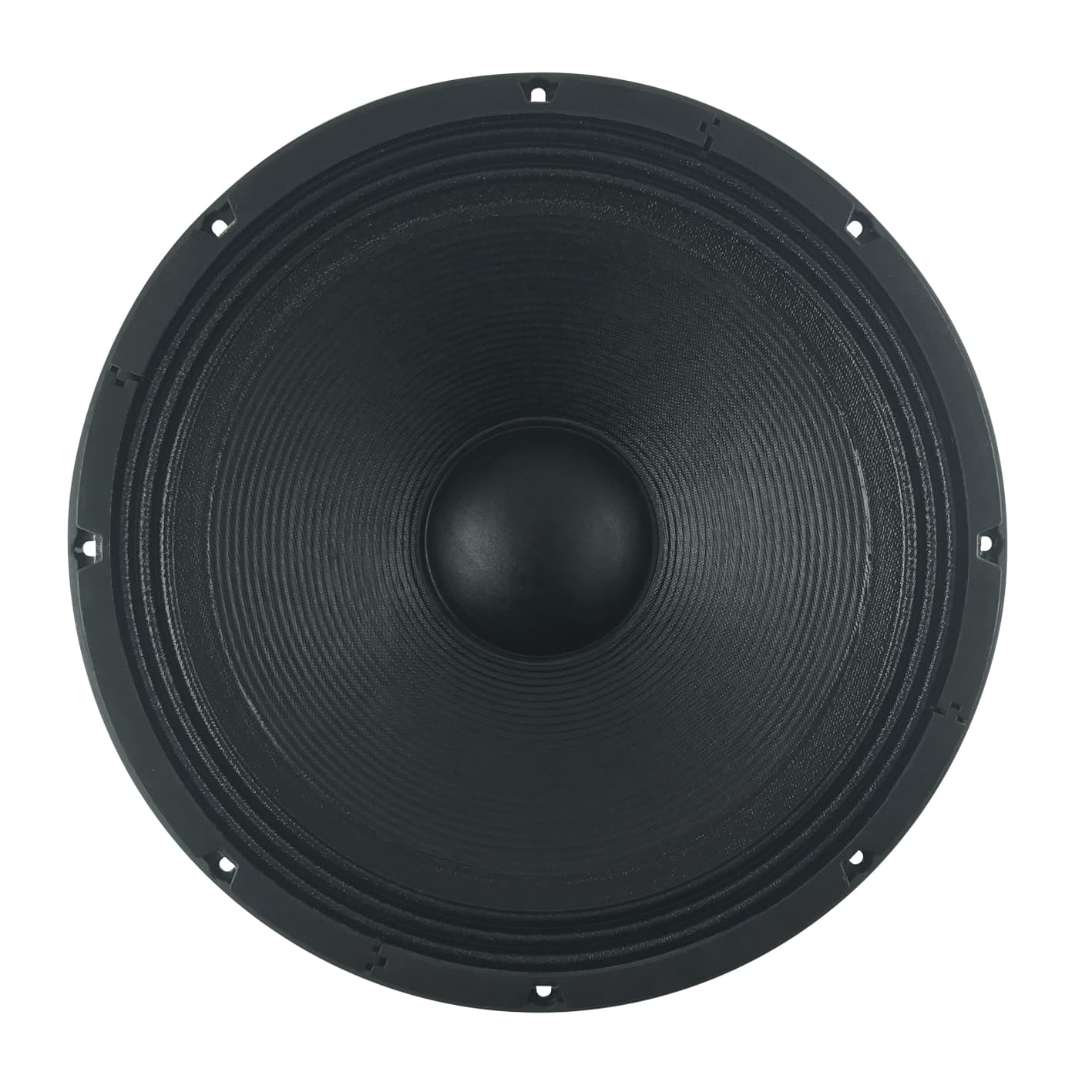

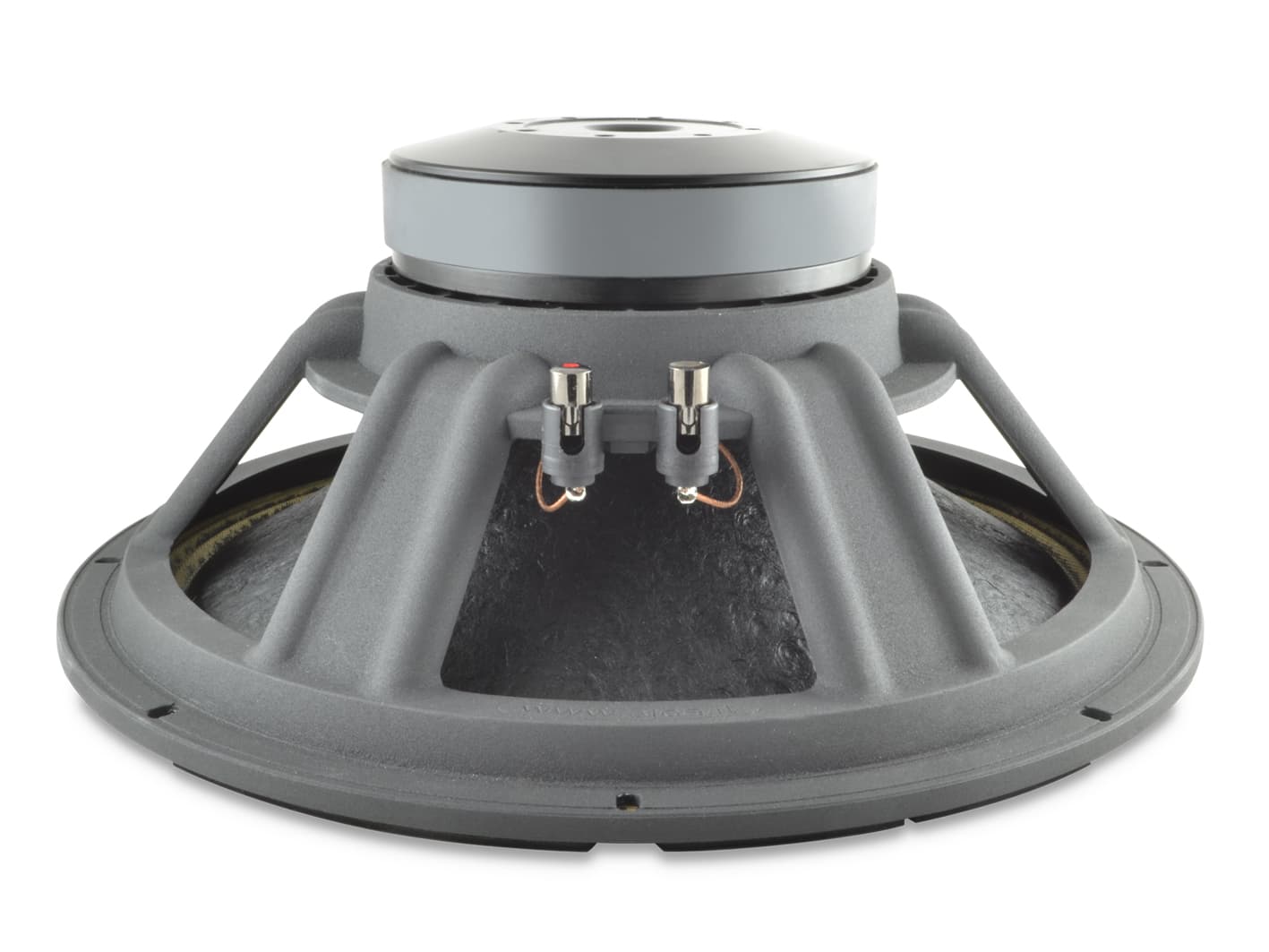

Sica 15 PFS 3
Sica 15 PFS 3 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 39Hz, Qts 0.45, Vas 135.5L, Xmax 7mm, sensitivity 93.9dB, plus 599cm³ Vd and 75 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
93.9dB
95.9dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
75
Either alignment
Vd
599cm³
T/S Parameters
Valid
Fs39Hz
Qts0.45
Qes0.52
Qms3.2
Vas135.5L
Re5.1Ω
Le1.36mH
BL17.5Tm
Sd855cm²
Mms128g
Xmax7.0mm
SPL94dB
Power500W
Impedance8Ω
Voice Coil75mm
Flux Density1.08T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.7kg
Diameter388.0mm
Overall Depth163.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
15 PFS 3
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
£205.00
SB Audience
NERO-15MWN700D
15"
Xmax7.3mm+4%
Qts0.46+2%
BL17.7Tm+1%
Vas145.9L+8%
Qes0.48-8%
86%
Similarity
£189.25
Beyma
15MC500
15"
Xmax8mm+14%
Qts0.450%
BL18.3Tm+5%
Vas134L-1%
Qes0.47-10%
85%
Similarity
£149.39
Beyma
15MCS500
15"
Xmax8mm+14%
Qts0.48+7%
BL17.6Tm+1%
Vas134L-1%
Qes0.5-4%
85%
Similarity
£203.74
Eminence
OMEGA PRO-15-2KW-8
15"
Xmax7.4mm+6%
Qts0.44-2%
BL19.1Tm+9%
Vas142.5L+5%
Qes0.46-12%
84%
Similarity
£143.24
RCF
L15P530
15"
Xmax7mm0%
Qts0.48+7%
BL15.3Tm-13%
Vas160L+18%
Qes0.51-2%
84%
Similarity
£94.10
SB Audience
BIANCO-15MW350
15"
Xmax7.4mm+6%
Qts0.48+7%
BL16.9Tm-3%
Vas157.5L+16%
Qes0.49-6%
82%
Similarity
Beyma
615CMV28
15"
Xmax7mm0%
Qts0.49+9%
BL18.8Tm+7%
Vas104L-23%
Qes0.55+6%
80%
Similarity
£99.00
Celestion
TF1525E
15"
Xmax5.3mm-25%
Qts0.47+5%
BL17.8Tm+2%
Vas141.8L+5%
Qes0.53+2%
80%
Similarity
Monacor
TF1525E/4
15"
Xmax5.3mm-25%
Qts0.47+5%
BL17.8Tm+2%
Vas141.8L+5%
Qes0.53+2%
80%
Similarity
Monacor
TF1525E/8
15"
Xmax5.3mm-25%
Qts0.47+5%
BL17.8Tm+2%
Vas141.8L+5%
Qes0.53+2%
77%
Similarity
£249.00
B&C
15FHX76
15"
Xmax7mm0%
Qts0.43-4%
BL15.5Tm-11%
Vas186L+37%
Qes0.47-10%
77%
Similarity
CIARE
PWA15.75
15"
Xmax7mm0%
Qts0.39-13%
BL19.3Tm+10%
Vas135L0%
Qes0.41-21%
