Overview
LF DriverTF1525 series
Celestion

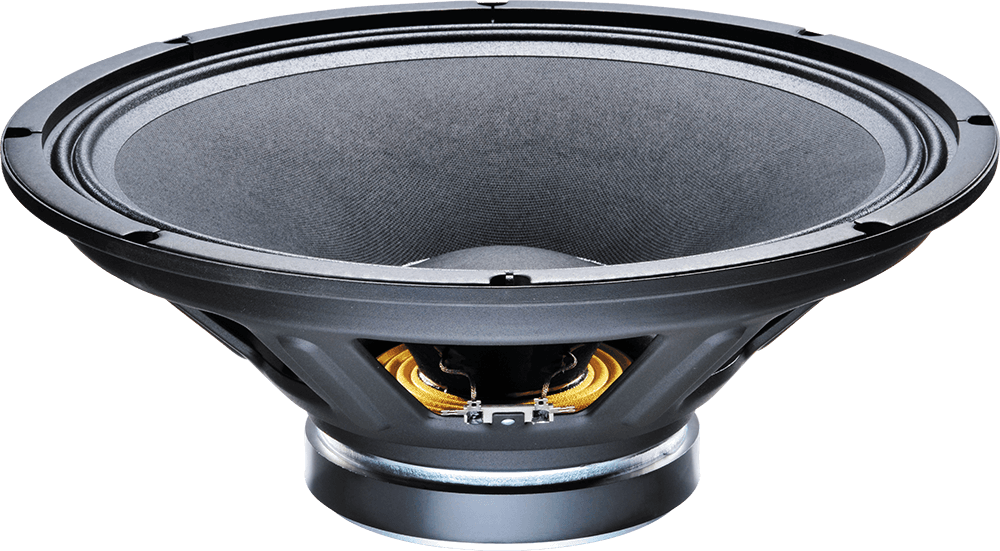

Celestion TF1525E
Celestion TF1525E is a 15" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 48Hz, Qts 0.47, Vas 141.8L, Xmax 5.3mm, sensitivity 96.6dB, plus 449cm³ Vd and 90 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £90.00.
Size
15"
Impedance
8Ω
RMS Power
300W
Sensitivity
96.6dB
EBP
90
Either alignment
Vd
449cm³

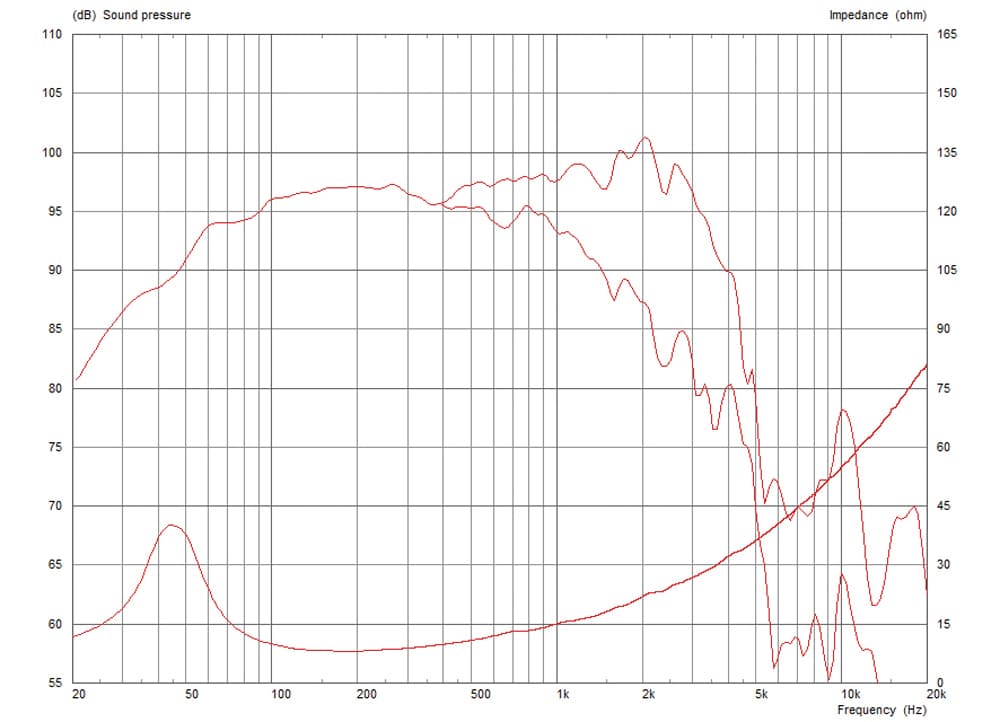

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence209 selected pixels of 365
T/S Parameters
Valid
Fs48Hz
Qts0.47
Qes0.53
Qms4.5
Vas141.8L
Re6.8Ω
Le1.31mH
BL17.8Tm
Sd855cm²
Mms82g
Xmax5.3mm
SPL97dB
Power300W
Impedance8Ω
Voice Coil64mm
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£85.00
inc VAT
Back order
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£99.00
inc VAT
partsexpress
Updated 11 Sept 2026
Source: ex VAT
£107.25
inc VAT
2 in stock
Best current price
Updated 11 Sept 2026
thomann
£90.00
Avg £98.75£8.75 below avg (-8.9%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.8kg
Diameter385.0mm
Overall Depth163.0mm
Cutout Diameter352.0mm
Bolt Circle Diameter369.0mm
