Overview
LF DriverLEGEND CA series
Eminence

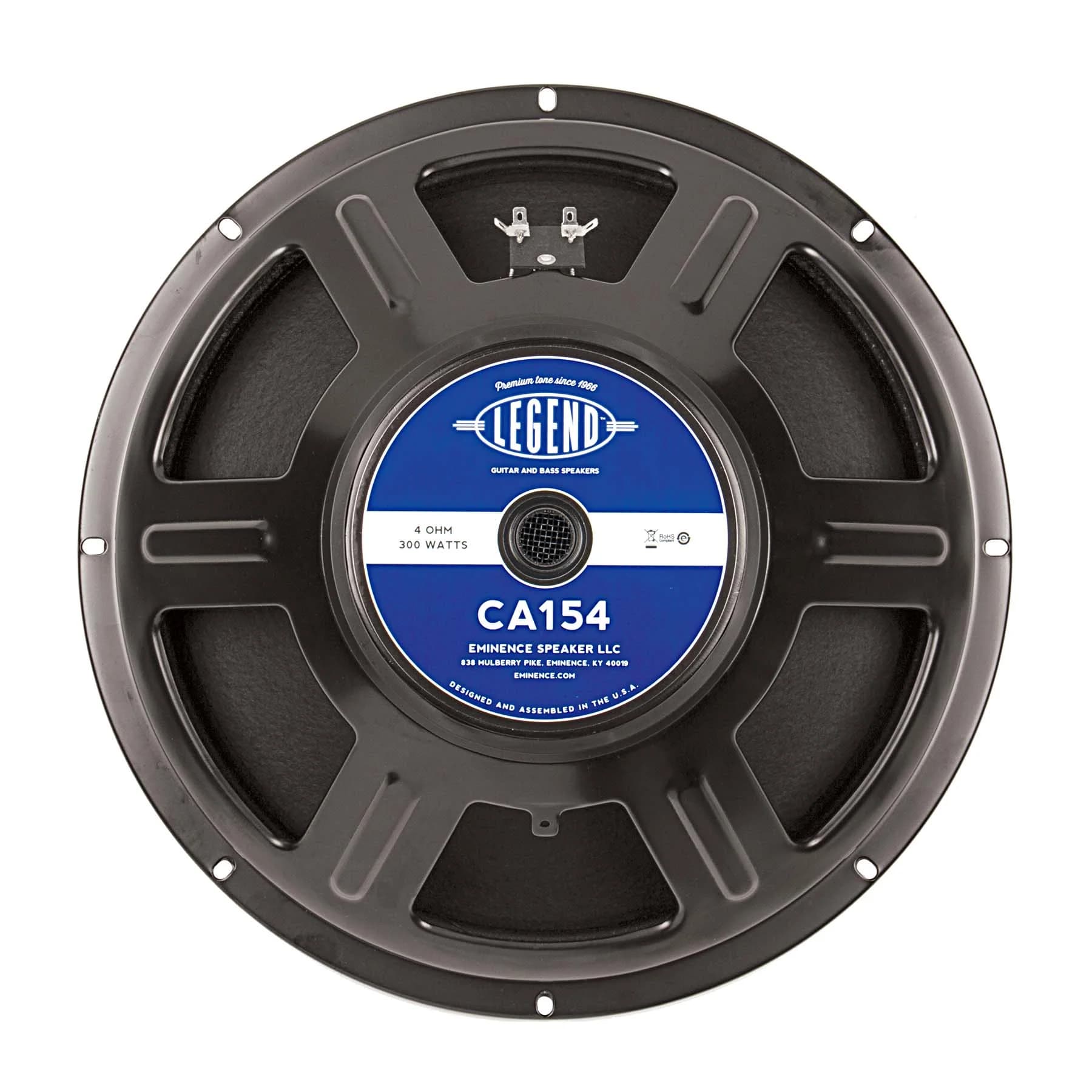

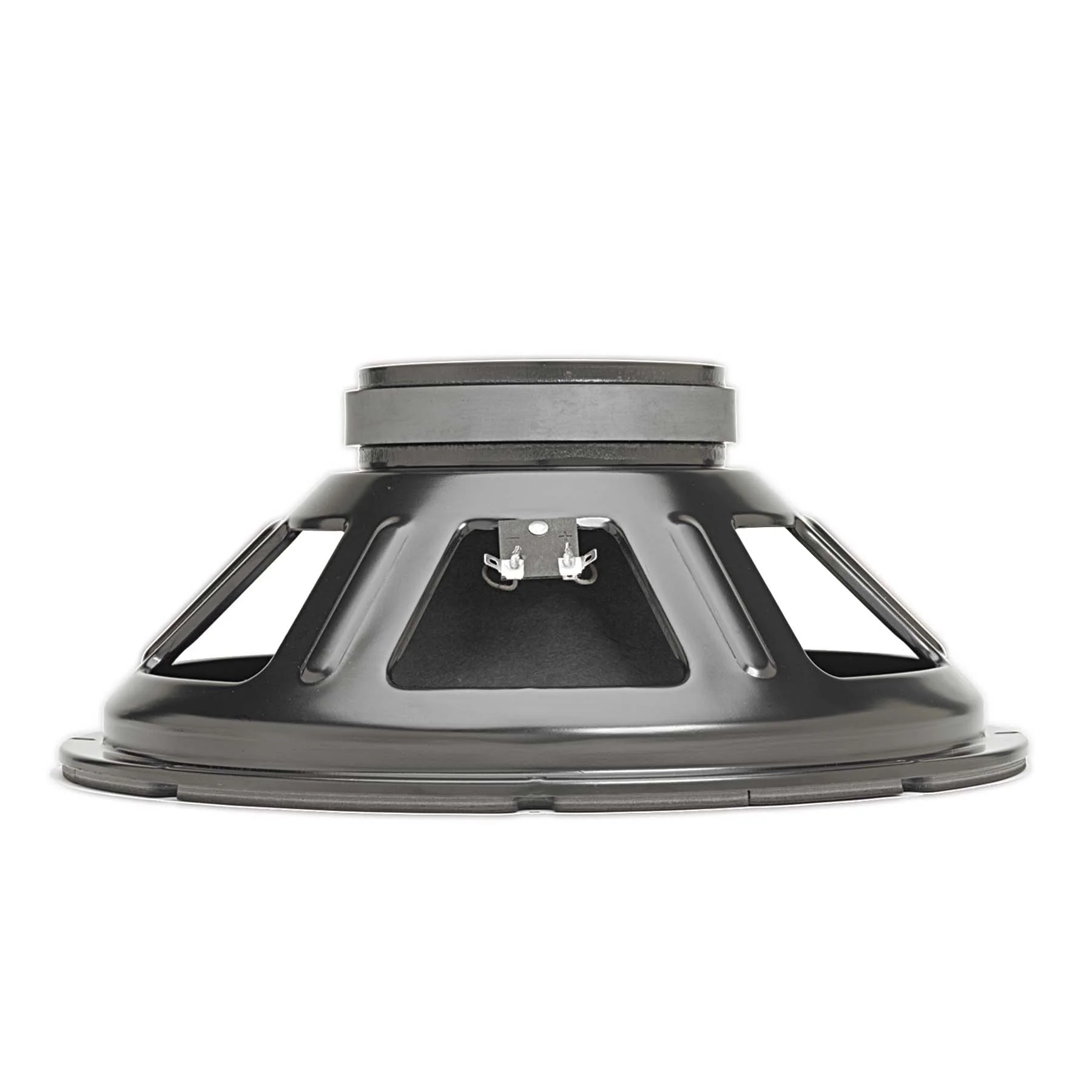

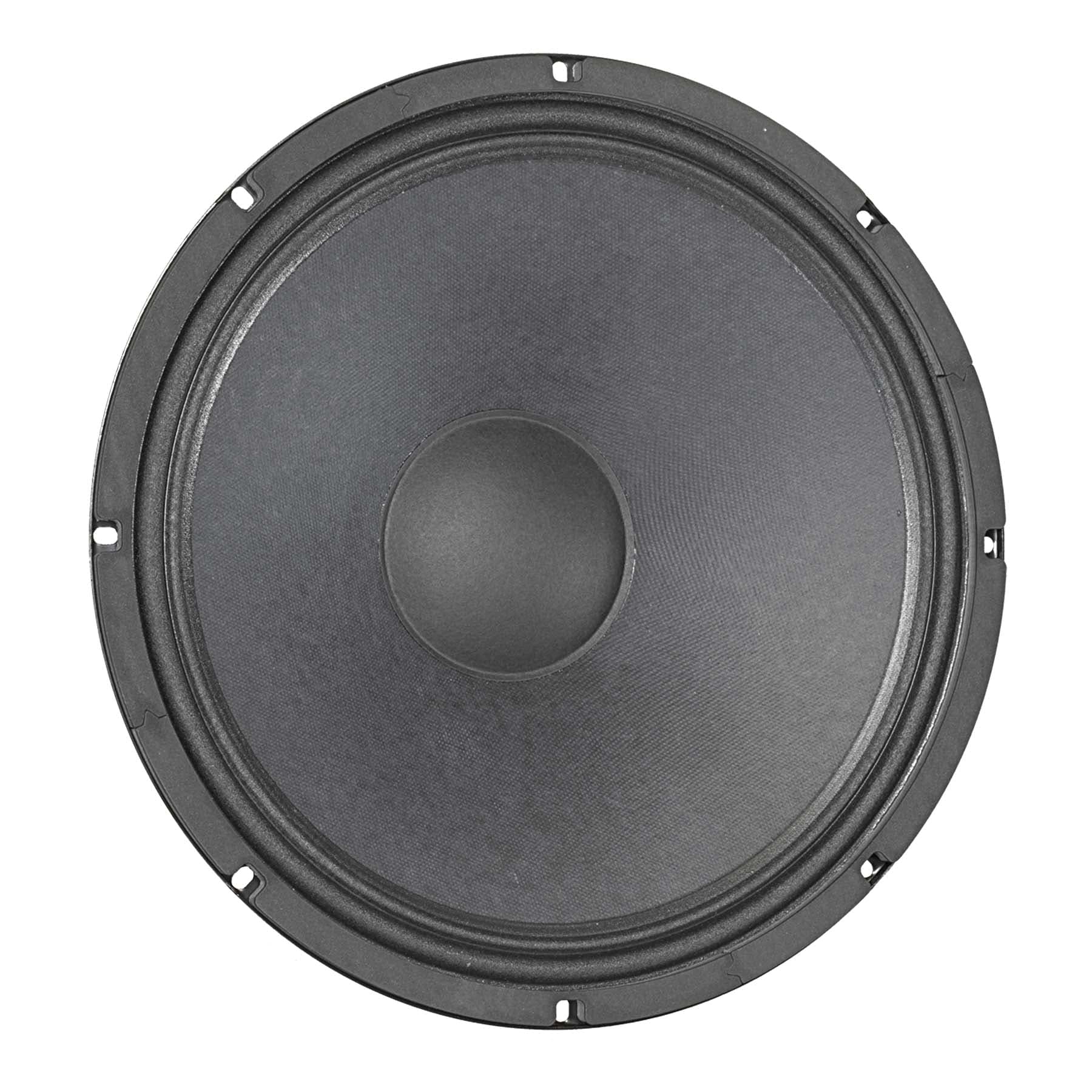

Eminence LEGEND CA154
Eminence LEGEND CA154 is a 15" 4 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 51Hz, Qts 0.49, Vas 108.2L, Xmax 5mm, sensitivity 96.3dB, plus 412cm³ Vd and 94 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £132.42.
Size
15"
Impedance
4Ω
RMS Power
300W
Sensitivity
96.3dB
EBP
94
Either alignment
Vd
412cm³
T/S Parameters
Valid
Fs51Hz
Qts0.49
Qes0.54
Qms4.9
Vas108.2L
Re2.9Ω
Le0.80mH
BL12.2Tm
Sd824cm²
Mms86g
Xmax5.0mm
SPL96dB
Power300W
Impedance4Ω
F Low45Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 25 Sept 2026
leanaudio
£132.42
inc VAT·1 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.4kg
Diameter384.8mm
Overall Depth158.8mm
Cutout Diameter352.3mm
