Overview
LF DriverLEGEND BP series
Eminence

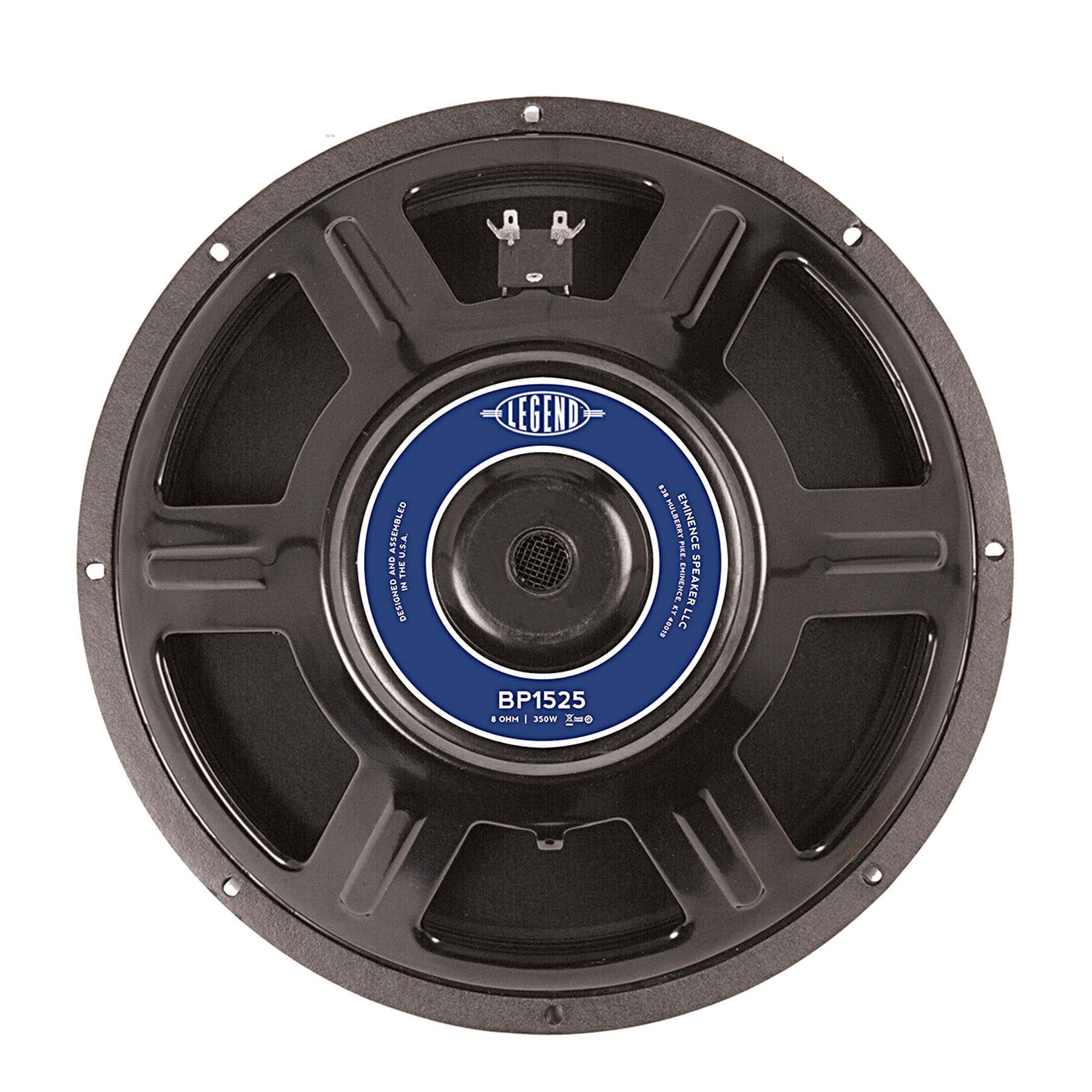

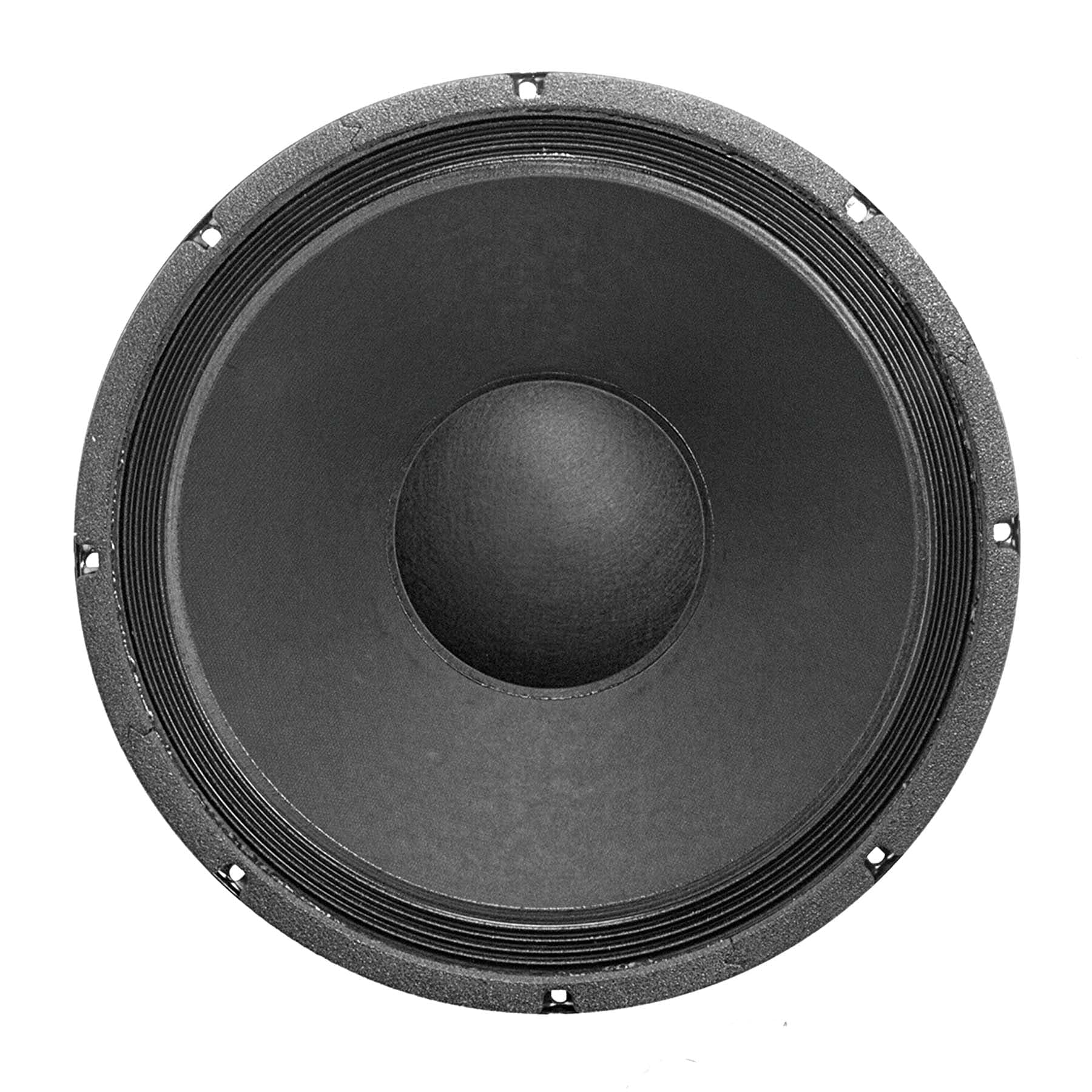

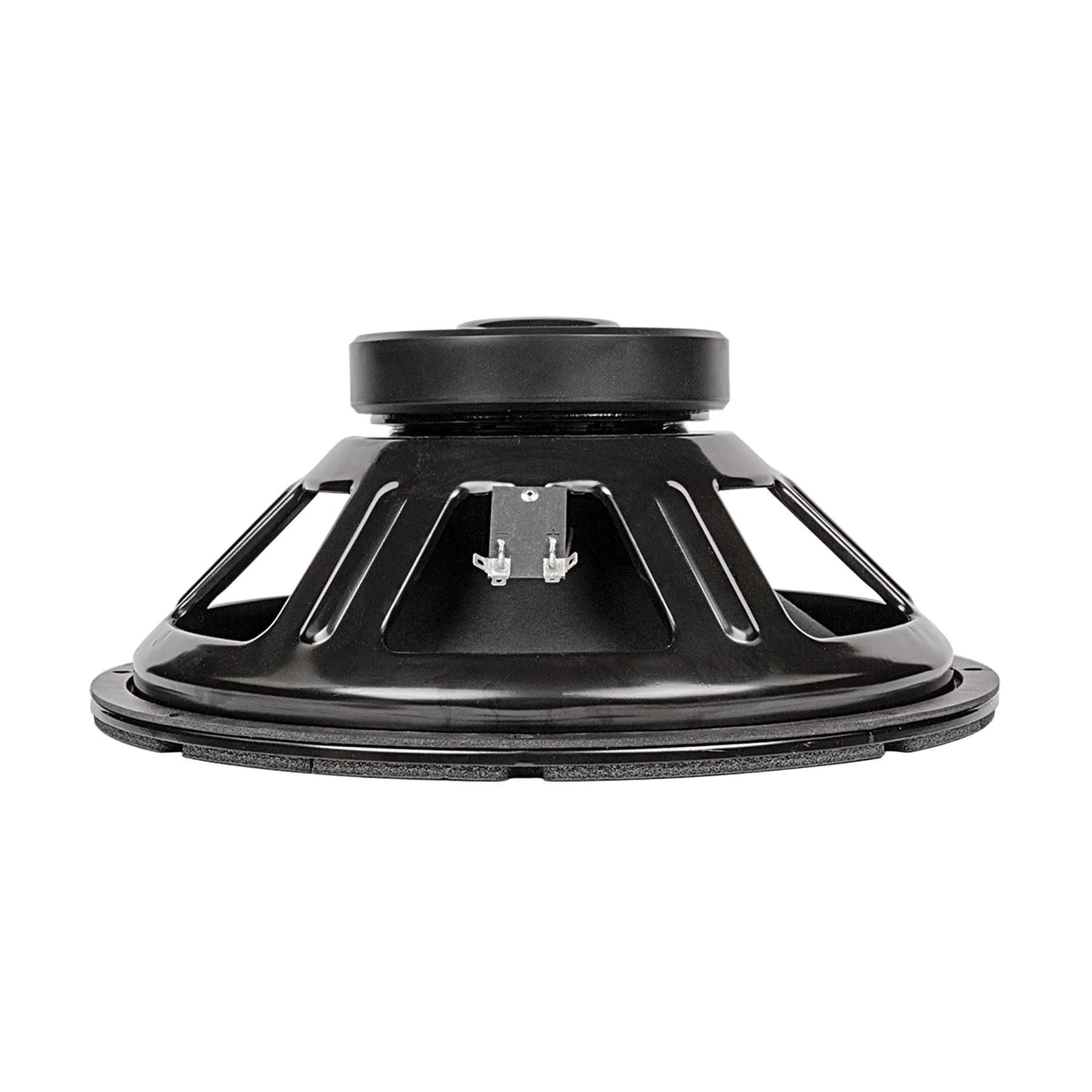

Eminence LEGEND BP 1525
Eminence LEGEND BP 1525 is a 15" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 32Hz, Qts 0.48, Vas 397L, Xmax 6.2mm, sensitivity 96.2dB, plus 531cm³ Vd and 64 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £166.00.
Size
15"
Impedance
8Ω
RMS Power
350W
Sensitivity
96.2dB
EBP
64
Either alignment
Vd
531cm³
T/S Parameters
Valid
Fs32Hz
Qts0.48
Qes0.50
Qms11.2
Vas397.0L
Re6.7Ω
Le1.12mH
BL13.1Tm
Sd856cm²
Mms65g
Xmax6.2mm
SPL96dB
Power350W
Impedance8Ω
F Low35Hz
F High2100Hz
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
2 vendorsleanaudio
Updated 25 Sept 2026· 8Ω
Source: inc VAT · 20%
£159.95
inc VAT
Out of stock
leanbusinessNot currently listed
Last seen 17 May 2026· 8Ω
Source: inc VAT · 20%
This vendor's catalogue no longer lists this product, so the price is not counted. Check the vendor for current availability.
£159.95
inc VAT
Best current price
Updated 25 Sept 2026
thomann
£166.00
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.4kg
Diameter384.8mm
Overall Depth167.9mm
Cutout Diameter353.1mm
