Overview
LF Driver
PRV Audio
PRV Audio 15W700
PRV Audio 15W700 is a 15" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 32Hz, Qts 0.62, Vas 308.1L, Xmax 6.9mm, sensitivity 93.8dB, plus 642cm³ Vd and 49 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
350W
Sensitivity
93.8dB
95.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
49
Sealed alignment
Vd
642cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs32Hz
Qts0.62
Qes0.65
Qms16.3
Vas308.1L
Re6.4Ω
Le1.33mH
BL14.0Tm
Sd935cm²
Mms100g
Xmax6.9mm
SPL94dB
Power350W
Impedance8Ω
F Low35Hz
F High3500Hz
Xover80Hz
Voice Coil76mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.1kg
Diameter385.0mm
Overall Depth147.0mm
Cutout Diameter359.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
15W700
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity
PRV Audio
15W1000
15"
Xmax6.4mm-7%
Qts0.68+10%
BL14.5Tm+4%
Vas206.1L-33%
Qes0.69+6%
65%
Similarity

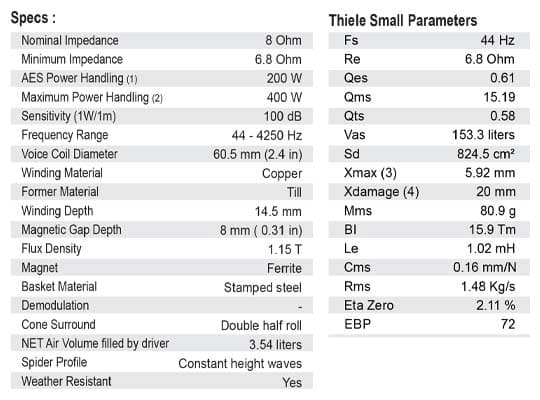

SB Audience
BIANCO-15MW200
15"
Xmax5.9mm-14%
Qts0.58-6%
BL15.9Tm+14%
Vas153.3L-50%
Qes0.61-6%
61%
Similarity
Peerless
FSL-1520R02-08
15"
Xmax6mm-13%
Qts0.7+13%
BL11.8Tm-16%
Vas203L-34%
Qes0.74+15%
58%
Similarity
£143.24
RCF
L15P530
15"
Xmax7mm+2%
Qts0.48-23%
BL15.3Tm+10%
Vas160L-48%
Qes0.51-22%
54%
Similarity
£87.00
Eminence
DELTA 15LF-4
15"
Xmax6mm-13%
Qts0.49-21%
BL10.3Tm-26%
Vas253.9L-18%
Qes0.53-18%
49%
Similarity
£172.52
FaitalPRO
15PR300
15"
Xmax5.2mm-24%
Qts0.48-23%
BL15.6Tm+12%
Vas220.1L-29%
Qes0.5-23%
48%
Similarity

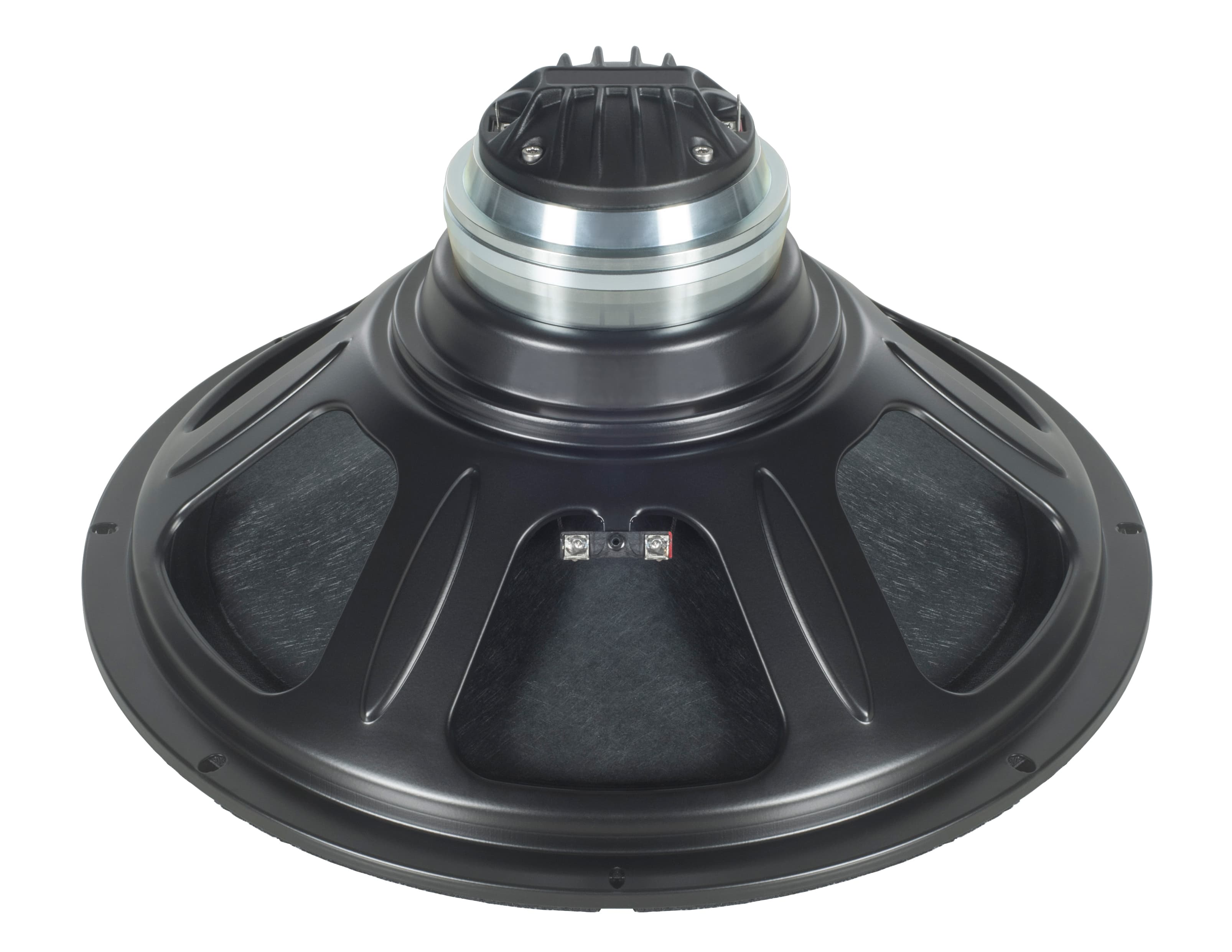

B&C
15CLX64
15"
Xmax5.3mm-23%
Qts0.75+21%
BL11.5Tm-18%
Vas227L-26%
Qes0.81+25%
47%
Similarity
£94.10

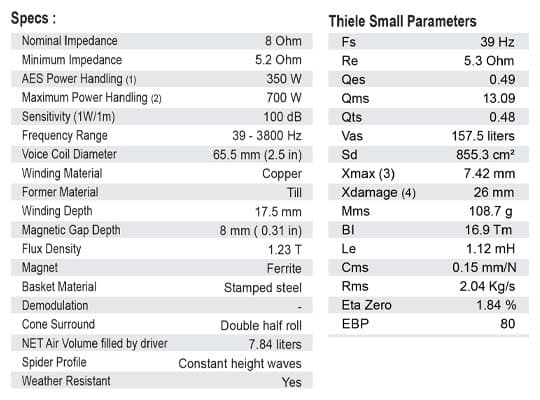

SB Audience
BIANCO-15MW350
15"
Xmax7.4mm+8%
Qts0.48-23%
BL16.9Tm+21%
Vas157.5L-49%
Qes0.49-25%
46%
Similarity
£93.10

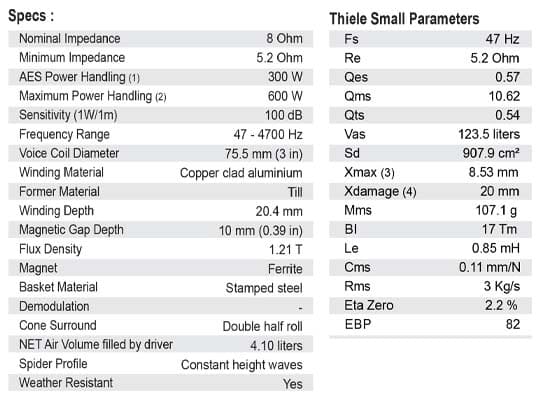

SB Audience
BIANCO-15W200
15"
Xmax8.5mm+24%
Qts0.54-13%
BL17Tm+22%
Vas123.5L-60%
Qes0.57-12%
39%
Similarity
£149.39
Beyma
15MCS500
15"
Xmax8mm+16%
Qts0.48-23%
BL17.6Tm+26%
Vas134L-57%
Qes0.5-23%
36%
Similarity

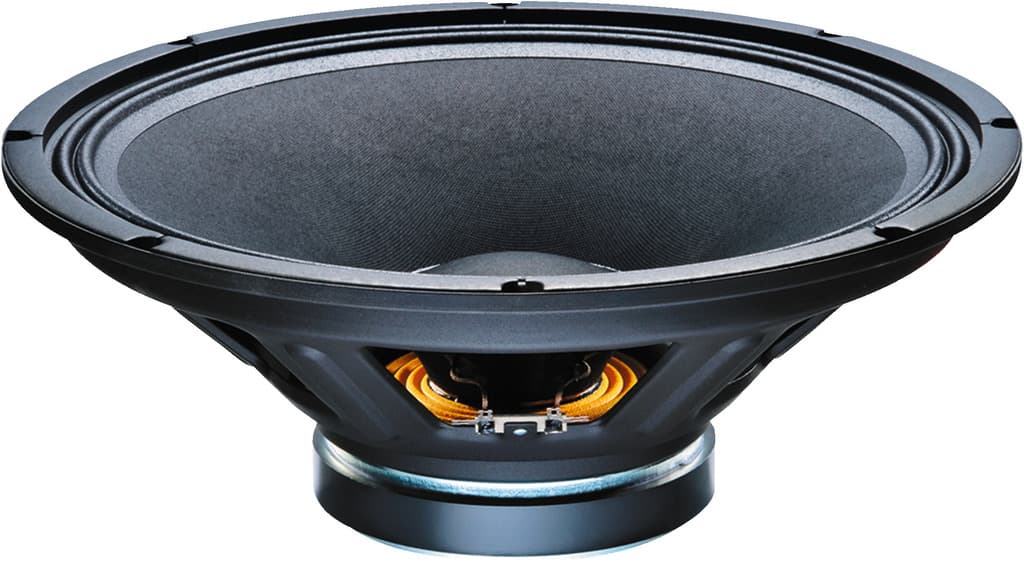

Monacor
