Overview
LF Driver
PRV Audio
PRV Audio 15W1000
PRV Audio 15W1000 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 40Hz, Qts 0.68, Vas 206.1L, Xmax 6.4mm, sensitivity 94.7dB, plus 631cm³ Vd and 57 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
94.7dB
97.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
57
Either alignment
Vd
631cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs40Hz
Qts0.68
Qes0.69
Qms25.9
Vas206.1L
Re5.5Ω
Le1.04mH
BL14.5Tm
Sd990cm²
Mms107g
Xmax6.4mm
SPL95dB
Power500W
Impedance8Ω
F Low40Hz
F High4000Hz
Xover80Hz
Voice Coil76mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.5kg
Diameter386.0mm
Overall Depth157.0mm
Cutout Diameter353.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
15W1000
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
Peerless
FSL-1520R02-08
15"
Xmax6mm-6%
Qts0.7+3%
BL11.8Tm-19%
Vas203L-2%
Qes0.74+8%
72%
Similarity
PRV Audio
15W700
15"
Xmax6.9mm+8%
Qts0.62-9%
BL14Tm-4%
Vas308.1L+49%
Qes0.65-6%
70%
Similarity
SB Audience
BIANCO-15MW200
15"
Xmax5.9mm-7%
Qts0.58-15%
BL15.9Tm+9%
Vas153.3L-26%
Qes0.61-12%
65%
Similarity
£94.00

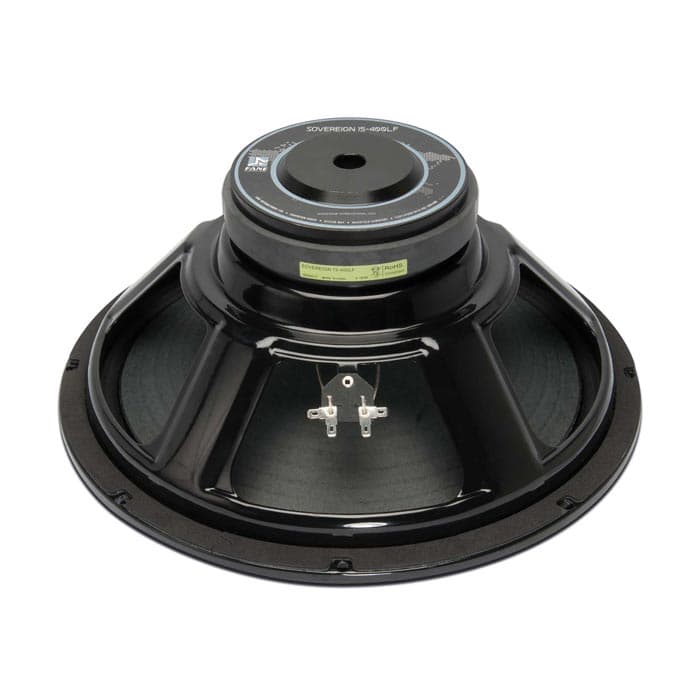

Fane
SOVEREIGN 15-400LF
15"
Xmax4.6mm-28%
Qts0.57-16%
BL13.5Tm-7%
Vas210L+2%
Qes0.62-10%
64%
Similarity
B&C
15CLX64
15"
Xmax5.3mm-17%
Qts0.75+10%
BL11.5Tm-21%
Vas227L+10%
Qes0.81+17%
61%
Similarity
£99.00

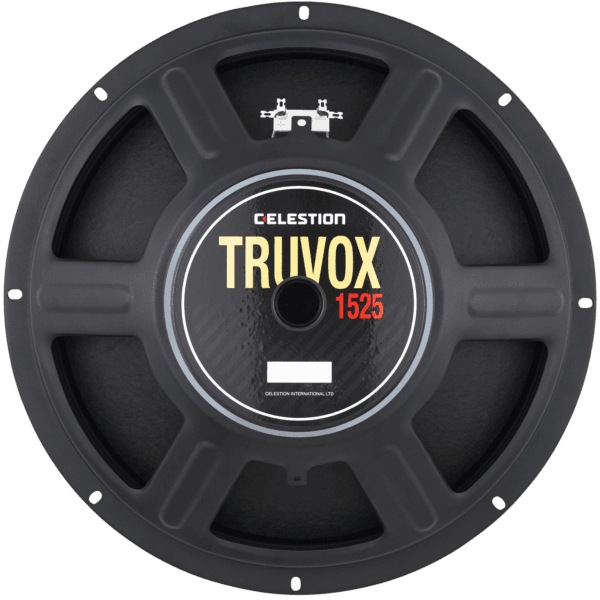

Celestion
TRUVOX 1525
15"
Xmax4.8mm-25%
Qts0.76+11%
BL14.3Tm-2%
Vas135.4L-34%
Qes0.8+16%
42%
Similarity

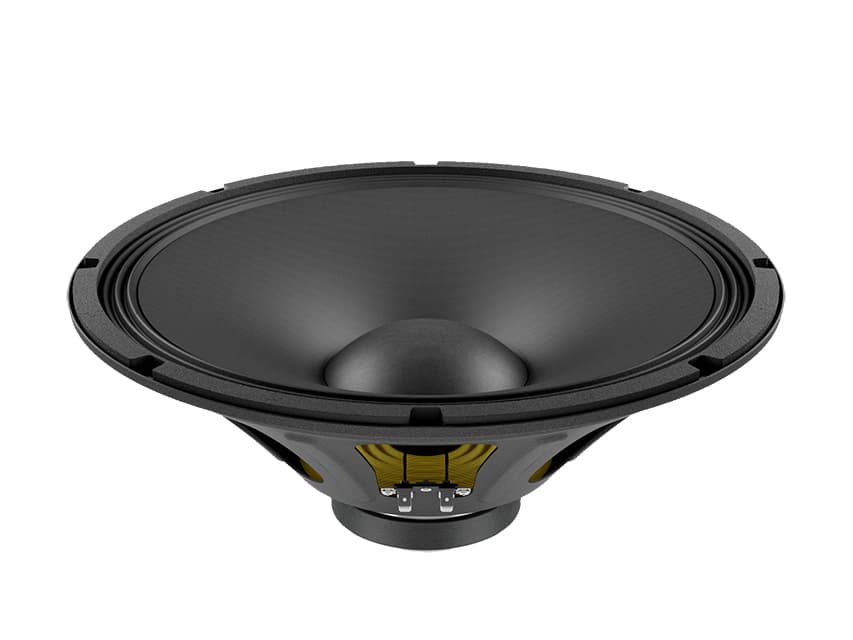

Lavoce
LBASS15-15
15"
Xmax4.7mm-26%
Qts0.74+9%
BL9.9Tm-32%
Vas284.8L+38%
Qes0.88+28%
