LF DriverDELTA series
Eminence

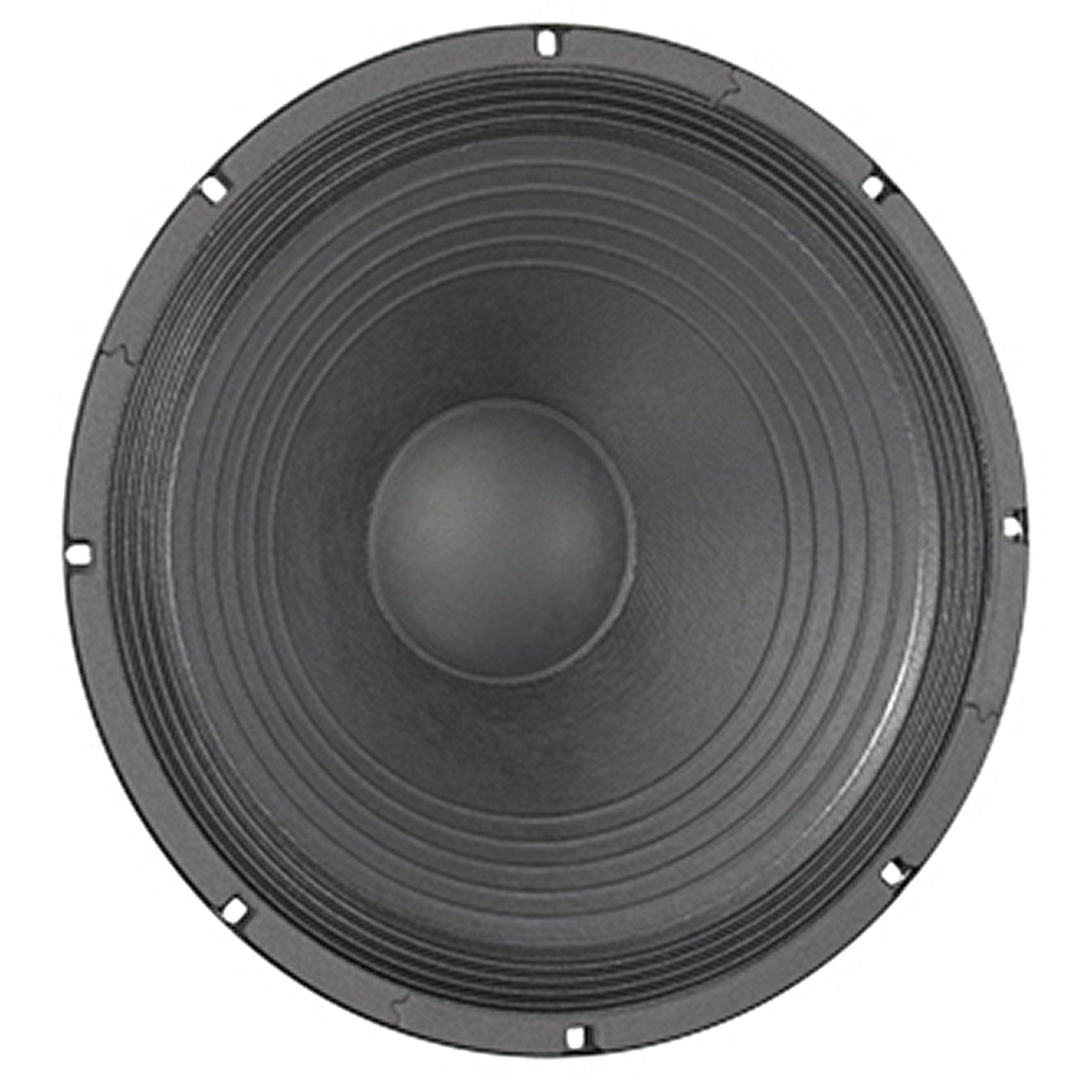

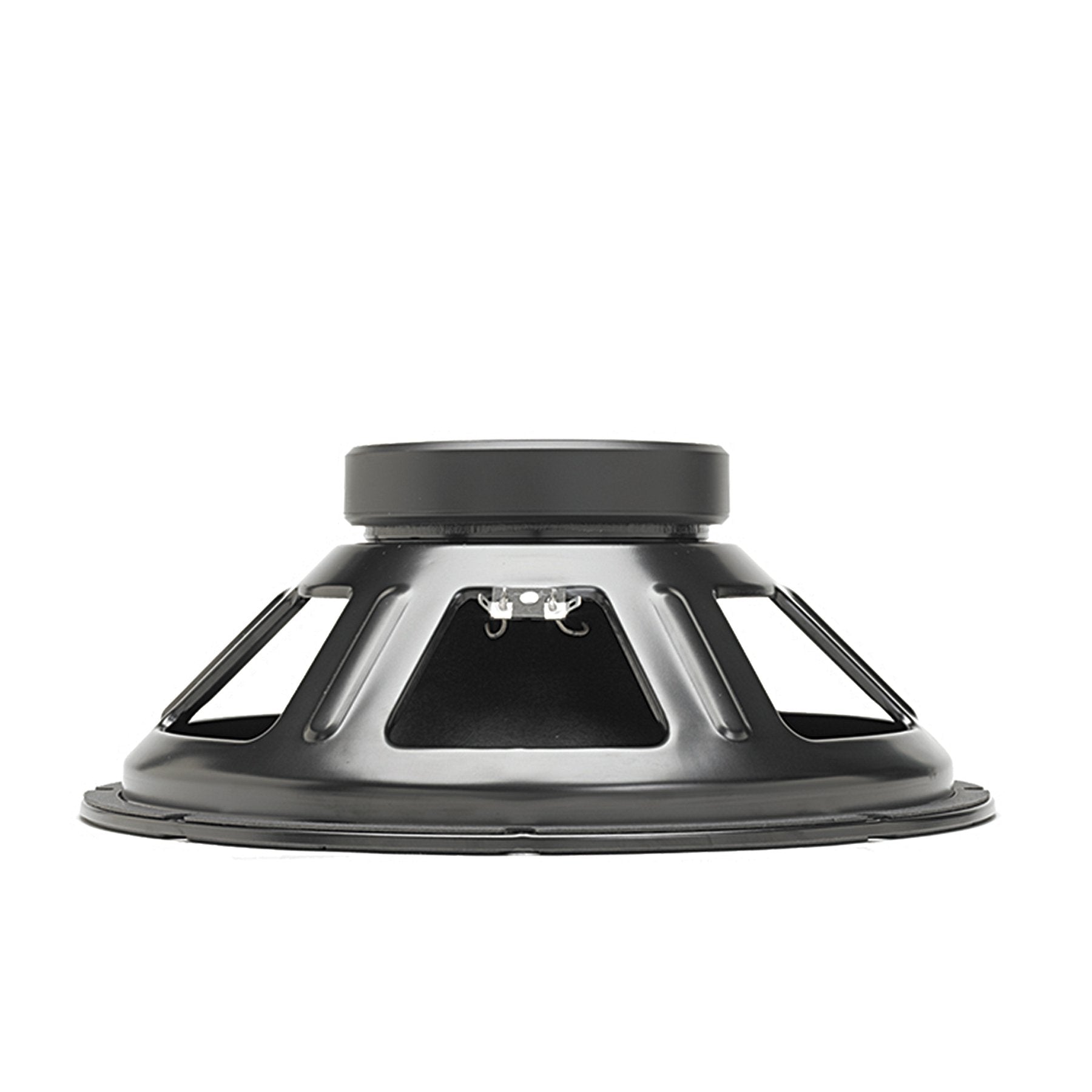

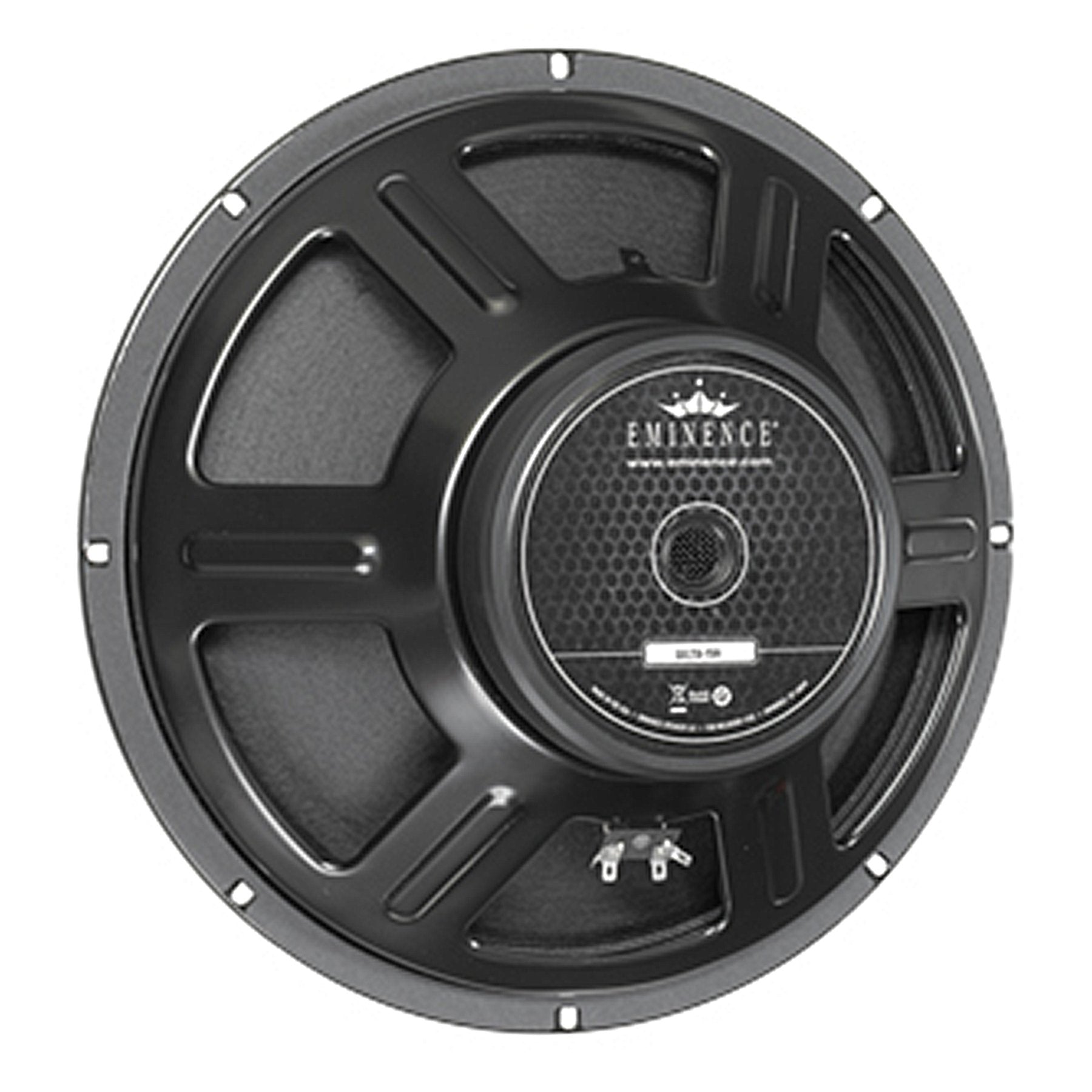

Eminence DELTA 15B
Eminence DELTA 15B is a 15" 16 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 45Hz, Qts 0.61, Vas 204L, Xmax 1.6mm, sensitivity 96.5dB, plus 137cm³ Vd and 67 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £133.00.
Size
15"
Impedance
16Ω
RMS Power
400W
Sensitivity
96.5dB
100.0dBmanufacturer; using T/S-derived value (3.5dB delta).
EBP
67
Either alignment
Vd
137cm³
T/S Parameters
Valid
Fs45Hz
Qts0.61
Qes0.67
Qms6.5
Vas204.0L
Re11.3Ω
Le1.35mH
BL17.6Tm
Sd856cm²
Mms64g
Xmax1.6mm
SPL97dB
Power400W
Impedance16Ω
F Low64Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£133.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.6kg
Diameter384.8mm
Overall Depth153.7mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
