LF DriverBIANCO series
SB Audience
SB Audience BIANCO-15W200
SB Audience BIANCO-15W200 is a 15" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 47Hz, Qts 0.54, Vas 123.5L, Xmax 8.5mm, sensitivity 95.5dB, plus 774cm³ Vd and 82 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £93.10.
Size
15"
Impedance
8Ω
RMS Power
300W
Sensitivity
95.5dB
EBP
82
Either alignment
Vd
774cm³
T/S Parameters
Valid
Fs47Hz
Qts0.54
Qes0.57
Qms10.6
Vas123.5L
Re5.2Ω
Le0.85mH
BL17.0Tm
Sd908cm²
Mms107g
Xmax8.5mm
SPL96dB
Power300W
Impedance8Ω
Min Impedance5.2Ω
F Low47Hz
F High4700Hz
Voice Coil76mm
Flux Density1.21T
Pricing & availability
Price definitionsPrice movement
Best current price
£93.10
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

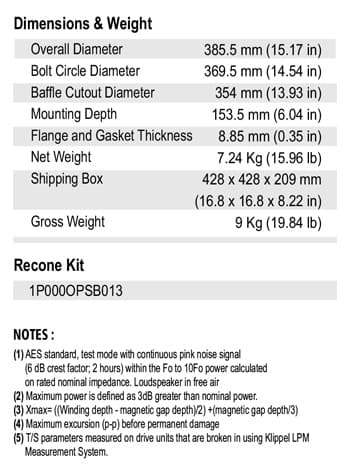

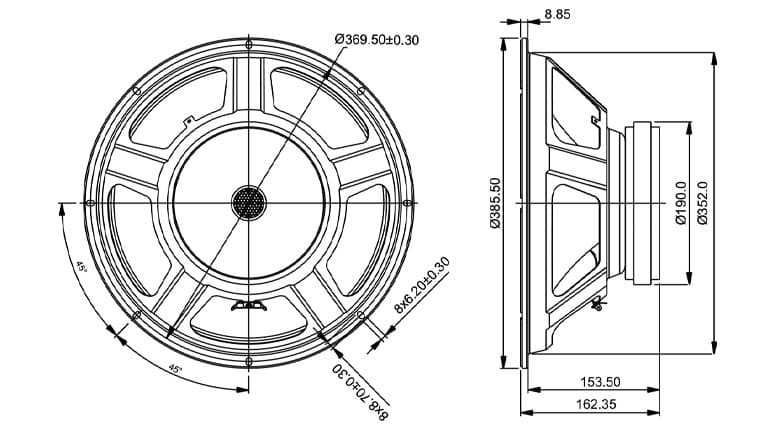

Dimensions & Physical
Weight7.2kg
Diameter385.5mm
Cutout Diameter354.0mm
Bolt Circle Diameter369.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Audience
BIANCO-15W200
15"
Best current price
£93.10
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
71%
Similarity
1% more£94.10
SB Audience
BIANCO-15MW350
15"
Higher price
Xmax7.4mm-13%
Qts0.48-11%
BL16.9Tm-1%
Vas157.5L+28%
Qes0.49-14%
72%
Similarity
36% more£126.45
SB Audience
BIANCO-15SW400
15"
Higher price
Xmax9.2mm+8%
Qts0.48-11%
BL19.8Tm+16%
Vas111.5L-10%
Qes0.49-14%
65%
Similarity
54% more£143.24
RCF
L15P530
15"
Higher price
Xmax7mm-18%
Qts0.48-11%
BL15.3Tm-10%
Vas160L+30%
Qes0.51-11%
80%
Similarity
60% more£149.39
Beyma
15MCS500
15"
Higher price
Xmax8mm-6%
Qts0.48-11%
BL17.6Tm+4%
Vas134L+9%
Qes0.5-12%
72%
Similarity
87% more£173.88
Beyma
15MC500
15"
Higher price
Xmax8mm-6%
Qts0.45-17%
BL18.3Tm+8%
Vas134L+9%
Qes0.47-18%
63%
Similarity
95% more£181.46
B&C
15FW88
15"
Higher price
Xmax8mm-6%
Qts0.43-20%
BL19.3Tm+13%
Vas103.7L-16%
Qes0.45-21%
59%
Similarity
103% more£189.00
B&C
15PS100
15"
Higher price
Xmax8mm-6%
Qts0.43-20%
BL21.2Tm+25%
Vas103L-17%
Qes0.47-18%
62%
Similarity
117% more£202.21
Eminence
OMEGA PRO-15-2KW-8
15"
Higher price
Xmax7.4mm-13%
Qts0.44-19%
BL19.1Tm+12%
Vas142.5L+15%
Qes0.46-19%
47%
Similarity
119% more£203.94
BishopSound
BWP15/4/V2
15"
Higher price
Xmax10.3mm+21%
Qts0.42-22%
BL21.3Tm+25%
Vas102.3L-17%
Qes0.44-23%
47%
Similarity
119% more£203.94
BishopSound
BWP15/8/V2
15"
Higher price
Xmax10.3mm+21%
Qts0.42-22%
BL21.3Tm+25%
Vas102.3L-17%
Qes0.44-23%
68%
Similarity
120% more£205.00
SB Audience
NERO-15MWN700D
15"
Higher price
Xmax7.3mm-14%
Qts0.46-15%
BL17.7Tm+4%
Vas145.9L+18%
Qes0.48-16%
70%
Similarity
136% more£220.00
Eminence
KAPPALITE 3015LF
15"
Higher price
Xmax9.6mm+13%
Qts0.46-15%
BL17Tm0%
Vas150.9L+22%
Qes0.48-16%
