Overview
LF DriverBIANCO series
SB Audience
SB Audience BIANCO-15MW200
SB Audience BIANCO-15MW200 is a 15" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 44Hz, Qts 0.58, Vas 153.3L, Xmax 5.9mm, sensitivity 95.3dB, plus 488cm³ Vd and 72 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
200W
Sensitivity
95.3dB
EBP
72
Either alignment
Vd
488cm³
T/S Parameters
Valid
Fs44Hz
Qts0.58
Qes0.61
Qms15.2
Vas153.3L
Re6.8Ω
Le1.02mH
BL15.9Tm
Sd825cm²
Mms81g
Xmax5.9mm
SPL95dB
Power200W
Impedance8Ω
Min Impedance6.8Ω
F Low44Hz
F High4250Hz
Voice Coil61mm
Flux Density1.15T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

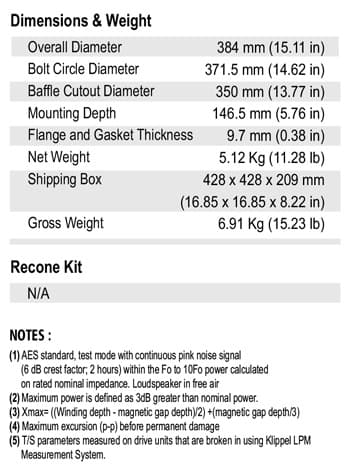

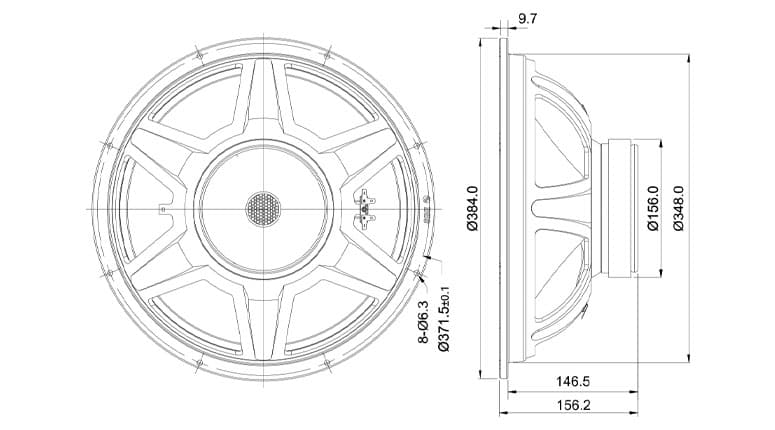

Dimensions & Physical
Weight5.1kg
Diameter384.0mm
Cutout Diameter350.0mm
Bolt Circle Diameter371.5mm
