Overview
LF Driver
GRS

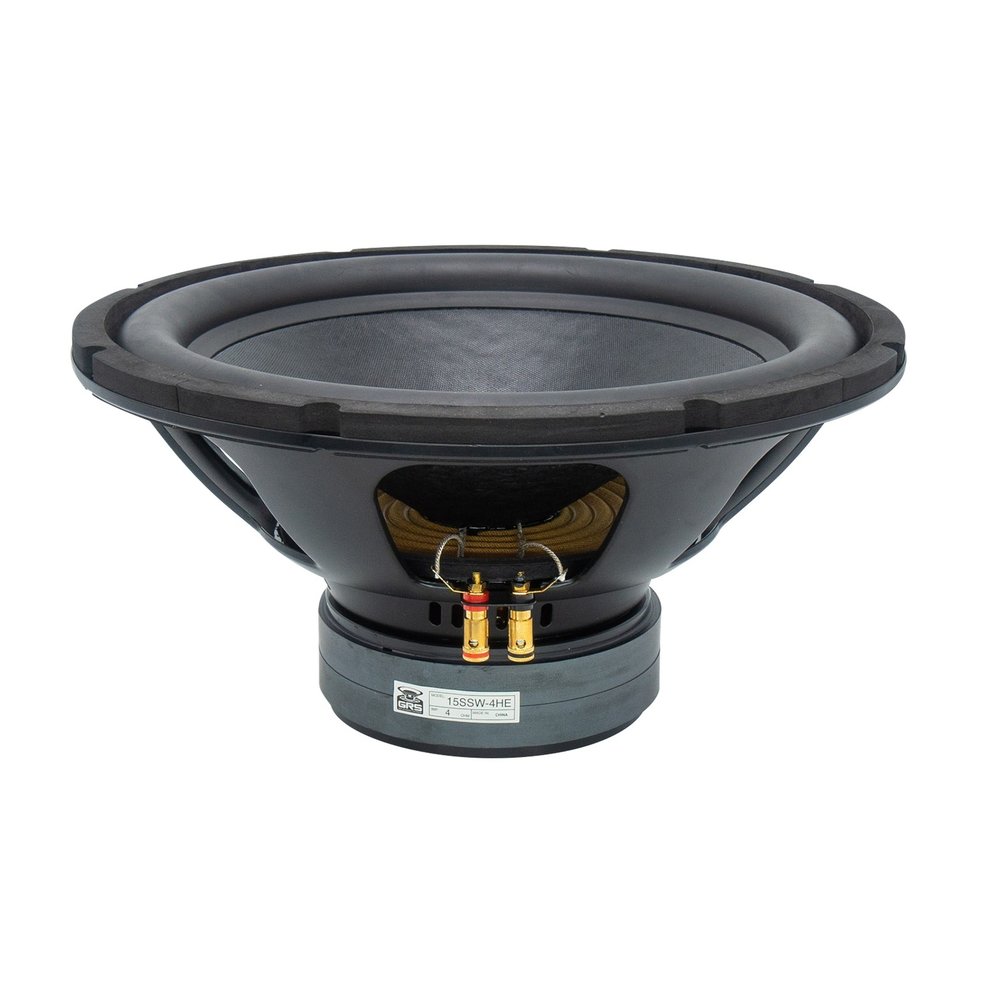

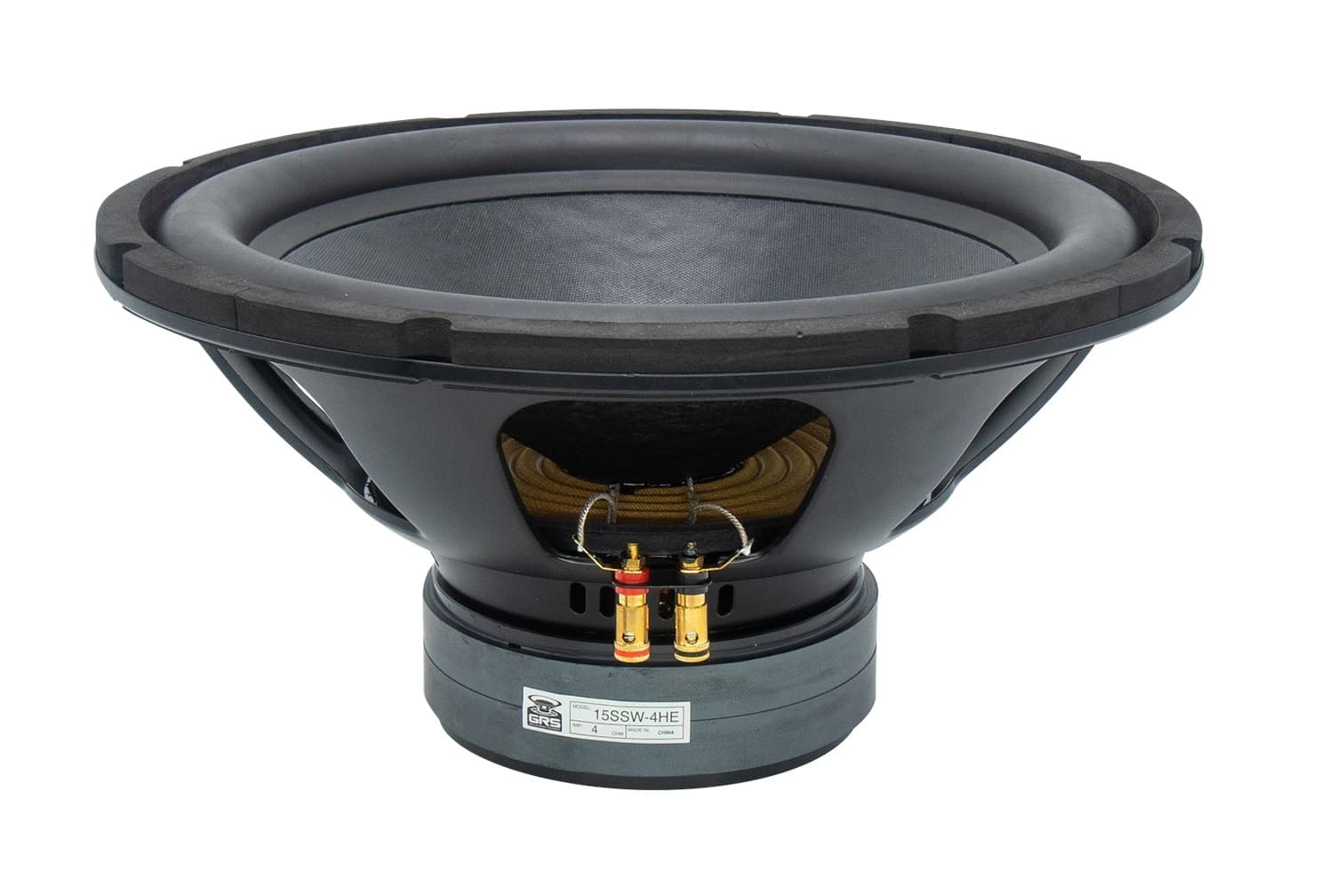

GRS 15SSW-4HE
GRS 15SSW-4HE is a 15" 4 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 21Hz, Qts 0.49, Vas 6.9L, Xmax 12.3mm, sensitivity 72.5dB, plus 1008cm³ Vd and 38 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
4Ω
RMS Power
300W
Sensitivity
72.5dB
90.0dBmanufacturer; using T/S-derived value (17.5dB delta).
EBP
38
Sealed alignment
Vd
1008cm³
T/S Parameters
Valid
Fs21Hz
Qts0.49
Qes0.55
Qms4.3
Vas6.9L
Re4.2Ω
Le3.70mH
BL16.6Tm
Sd819cm²
Mms284g
Xmax12.3mm
SPL73dB
Power300W
Impedance4Ω
F Low20Hz
F High300Hz
Voice Coil64mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£180.38
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter389.9mm
Overall Depth188.0mm
Cutout Diameter353.8mm
Bolt Circle Diameter373.4mm
