Overview
LF Driver15FHX series
B&C
B&C 15FHX76
B&C 15FHX76 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 40Hz, Qts 0.43, Vas 186L, Xmax 7mm, sensitivity 96.1dB, plus 599cm³ Vd and 85 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £249.00.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.1dB
98.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
85
Either alignment
Vd
599cm³

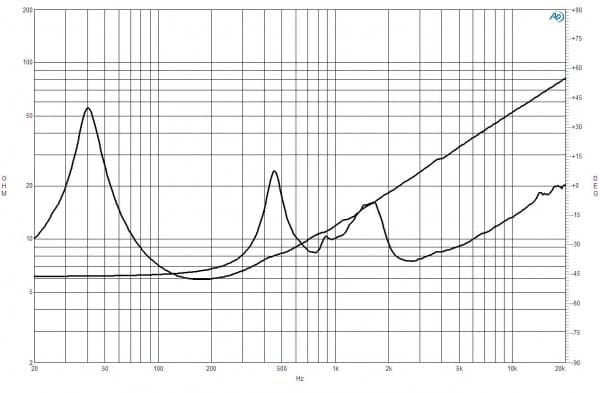

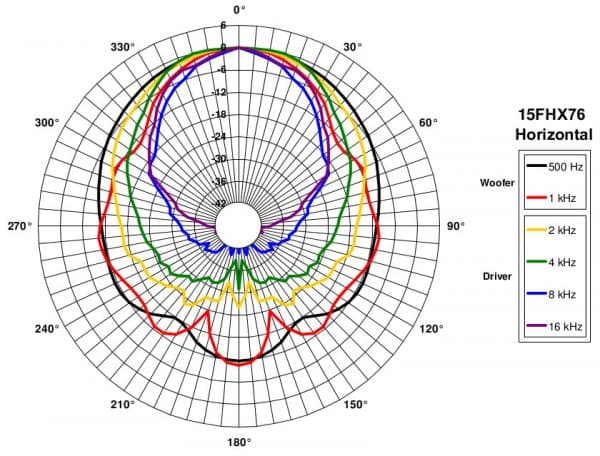

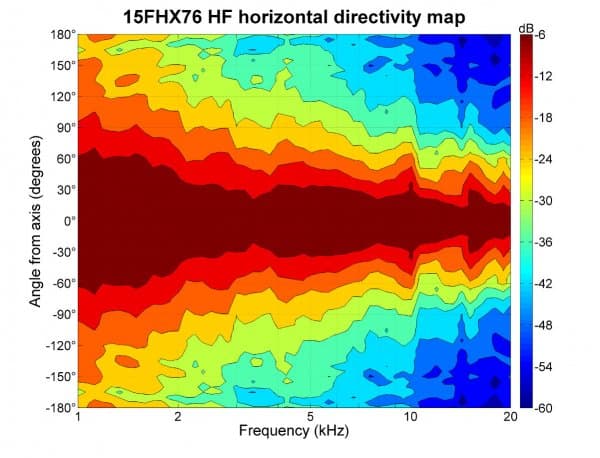

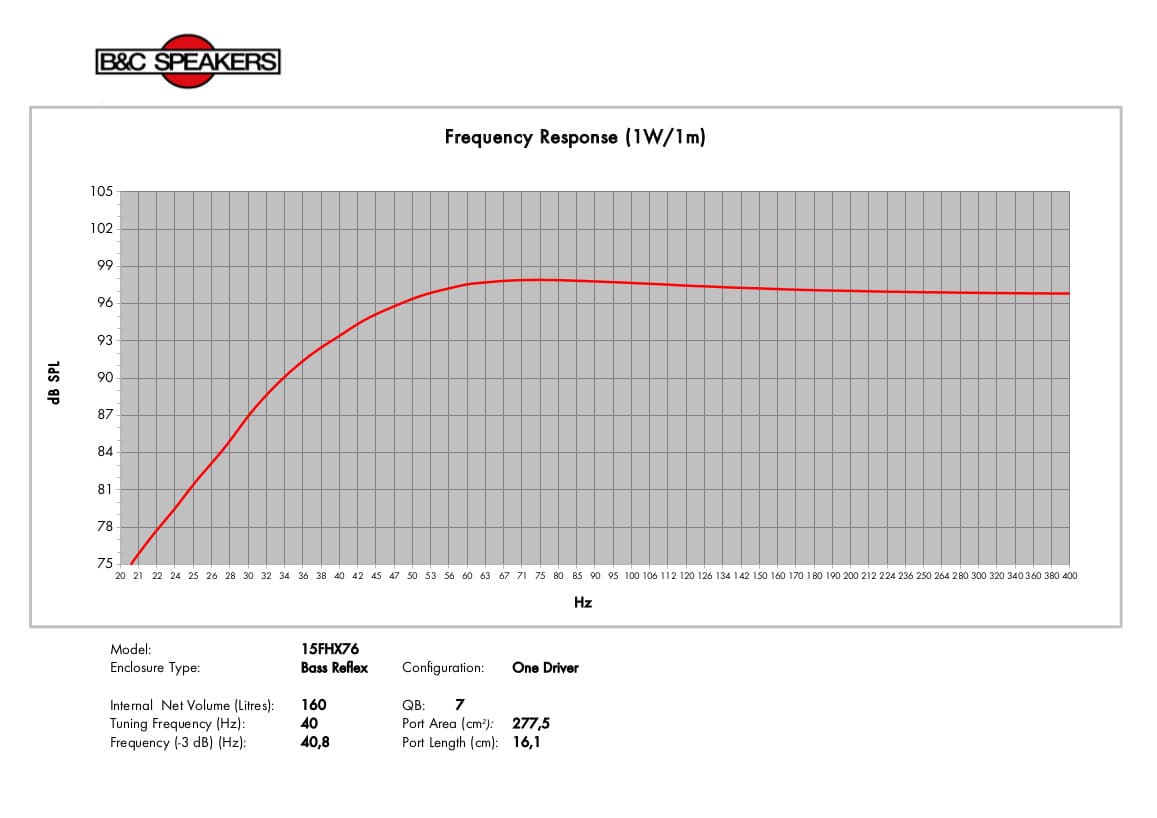

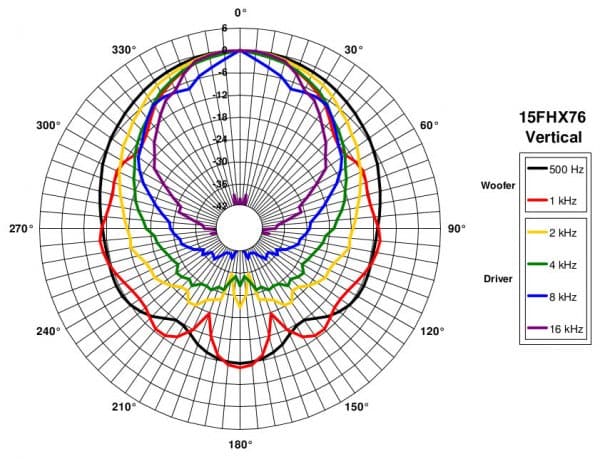

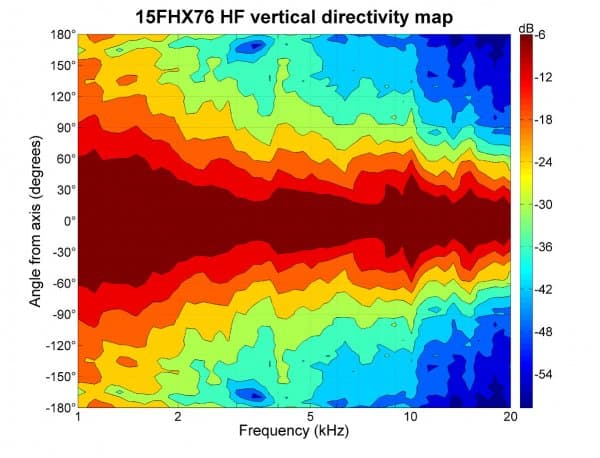

Frequency response
Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs40Hz
Qts0.43
Qes0.47
Qms5.2
Vas186.0L
Re5.2Ω
Le1.50mH
BL15.5Tm
Sd855cm²
Mms88g
Xmax7.0mm
SPL96dB
Power400W
Power Nominal400W
Impedance8Ω
Min Impedance6.0Ω
Voice Coil76mm
Flux Density1.15T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£249.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs40 Hz
Qts0.43
Qes0.47
Qms5.2
Vas186.0 L
Re5.2 Ω
Le1.50 mH
BL15.5 Tm
Sd855 cm²
Mms88 g
Xmax7.0 mm
SPL96 dB
Power400 W
Power Nominal400 W
Impedance8 Ω
Min Impedance6.0 Ω
Voice Coil76 mm
Flux Density1.15 T
HFSpecifications HF unit
Le0.14 mH
SPL107 dB
Power80 W
Power Nominal80 W
Impedance8 Ω
Min Impedance7.5 Ω
Xover1200 Hz
Voice Coil75 mm
Flux Density1.60 T
Additional Manufacturer Specs
Bl15.5 Tm
Fs40 Hz
Le1.5 mH
Re5.2 Ω
Sd855 cm² (132.5 in²)
Ebp85 Hz
Mms88 g
Qes0.47
Qms5.2
Qts0.43
Vas186 dm³ (6.56 ft³)
η02.4 %
Xvar7 mm
Winding Depth16.5 mm (0.65 in)
Former MaterialGlass Fibre
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Woofer Cone TreatmentWP Waterproof Front Side
