P.Audio15BM-300B-V3
£100.00 · 18% more, worseFs48 Hz +26%, worse
Qts0.40 –
Vas123.3 L −34%, better
BL19.2 T·m +6%
Xmax3.9 mm −13%, worse
Sensitivity97 dB +1.2
15-inch LF driver · 64 mm voice coil · 500 W
REDCATT 154FIND 8Ω
8 Ω
£84.52
Lautsprecherteile · 4 in stock · All 1 offer
- Fs
- 38Hz
- Xmax
- 4.5mm
- SPL
- 96dB
- Pe
- 500W
- BL
- 18.1T·m
- Vd
- 396cm³
- Qts
- 0.40
- Vas
- 187L
REDCATT 154FIND is a 15-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.40, Vas 187.2 L, Xmax 4.5 mm, sensitivity 95.8 dB, plus 396 cm³ Vd and 88 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £84.52.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.40
- Qes
- 0.43
- Qms
- 8.1
- Vas
- 187.2L
- Re
- 5.6Ω
- Le
- 0.97mH
Motor and cone
- BL
- 18.1T·m
- Sd
- 881cm²
- Mms
- 103g
- Xmax
- 4.5mm
- Vd †
- 396cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 97.4dB
- Power
- 500W
- Impedance
- 8Ω
- EBP †
- 88 · Sealed or vented
Size and mounting
- Diameter
- 387mm
- Cutout
- 355mm
- Bolt circle
- 374mm
- Weight
- 6.3kg
Other published values
- Xmech
- 12.5
- Power Peak
- 2000
Other dimensions
- Mounting Depth
- 155
Sensitivity shows 95.8 dB, calculated from the T/S values. REDCATT publishes 97.4 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 15″
- BL
- 18.1T·m
- Fs
- 38Hz
- Le
- 0.97mH
- Re
- 5.6Ω
- Sd
- 881cm²
- Mms
- 103g
- Qes
- 0.43
- Qms
- 8.1
- Qts
- 0.40
- SPL
- 95.8dB
- Vas
- 187.2L
- Xmax
- 4.5mm
- Xmech
- 12.5
- Power
- 500W
- Impedance
- 8Ω
- Power Peak
- 2000
- Sensitivity
- 97.4dB
- Calculated sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 97.4dB
- Voice coil
- 64mm
- Weight
- 6.3kg
- Diameter
- 387mm
- Mounting Depth
- 155
- Cutout
- 355mm
- Bolt circle
- 374mm
02
Compare
Same-size drivers, compared with the 154FIND. Clear differences are green when better and red when worse.
This driver154FIND
Best price
£84.52
Fs
38 Hz
Qts
0.40
Vas
187.2 L
BL
18.1 T·m
Xmax
4.5 mm
Sensitivity
95.8 dB
Power
500 W

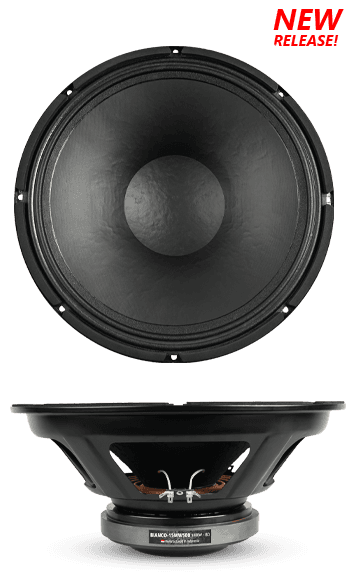

SB AudienceBIANCO-15MW500
£110.00 · 30% more, worseFs39 Hz –
Qts0.40 –
Vas171 L −9%
BL18.8 T·m +4%
Xmax7.6 mm +69%, better
Sensitivity96 dB –
EminenceDELTA PRO 15A
£142.05 · 68% more, worseFs42 Hz +11%, worse
Qts0.40 –
Vas243.5 L +30%, worse
BL14.5 T·m −20%, worse
Xmax4.3 mm −4%
Sensitivity98.2 dB +2.4, better
EminenceKAPPA-15LFA
£145.07 · 72% more, worseFs39 Hz –
Qts0.38 −5%
Vas159 L −15%, better
BL18.6 T·m –
Xmax5.5 mm +22%, better
Sensitivity95.6 dB –
REDCATT152FIND-2
£162.64 · 92% more, worseFs44 Hz +16%, worse
Qts0.37 −8%
Vas128.5 L −31%, better
BL18.3 T·m –
Xmax4.5 mm –
Sensitivity96.6 dB +0.8
CelestionFTR15-3070C
£178.00 · 111% more, worseFs41 Hz +9%
Qts0.38 −5%
Vas187.6 L –
BL17.3 T·m −4%
Xmax5.5 mm +22%, better
Sensitivity96.9 dB +1.1
REDCATT15FPM
£187.78 · 122% more, worseFs41 Hz +8%
Qts0.36 −10%, better
Vas134.9 L −28%, better
BL21.3 T·m +18%, better
Xmax4.5 mm –
Sensitivity95.9 dB –
MonacorFTR15-3070C/8
£192.09 · 127% more, worseFs41 Hz +9%
Qts0.38 −5%
Vas187.6 L –
BL17.3 T·m −4%
Xmax5.5 mm +22%, better
Sensitivity96.9 dB +1.1
FaitalPRO15FH520
£215.15 · 155% more, worseFs36 Hz −5%
Qts0.39 –
Vas186.5 L –
BL18.4 T·m –
Xmax8.8 mm +94%, better
Sensitivity95.3 dB −0.5
Eighteen Sound15MB606
£220.00 · 160% more, worseFs43 Hz +13%, worse
Qts0.35 −13%, better
Vas223 L +19%, worse
BL15.1 T·m −17%, worse
Xmax4.5 mm –
Sensitivity98.8 dB +3, better
Eighteen Sound15NCX750
£454.74 · 438% more, worseFs49 Hz +29%, worse
Qts0.37 −8%
Vas141 L −25%, better
BL18.4 T·m –
Xmax5.5 mm +22%, better
Sensitivity98.2 dB +2.4, better
Eighteen Sound15NCX750H
£470.84 · 457% more, worseFs49 Hz +29%, worse
Qts0.37 −8%
Vas141 L −25%, better
BL18.5 T·m –
Xmax5.5 mm +22%, better
Sensitivity98.2 dB +2.4, better
P.Audio15BM-500B-V3
No current priceFs41 Hz +8%
Qts0.37 −8%
Vas183.4 L –
BL17.8 T·m –
Xmax4.8 mm +7%
Sensitivity96.9 dB +1.1
P.AudioEX15-500S
No current priceFs45 Hz +18%, worse
Qts0.43 +7%
Vas136 L −27%, better
BL18.8 T·m +4%
Xmax4.5 mm –
Sensitivity96.2 dB –
CelestionTF1530SL
No current priceFs46 Hz +22%, worse
Qts0.39 –
Vas140.1 L −25%, better
BL17.0 T·m −6%
Xmax4 mm −11%, worse
Sensitivity96.9 dB +1.1
P.Audio15BM-400B-V3
No current priceFs48 Hz +26%, worse
Qts0.40 –
Vas123.3 L −34%, better
BL19.2 T·m +6%
Xmax3.9 mm −13%, worse
Sensitivity97 dB +1.2
REDCATT152FIND-1
No current priceFs37 Hz –
Qts0.44 +10%
Vas119 L −36%, better
BL18.4 T·m –
Xmax4.5 mm –
Sensitivity93.2 dB −2.6, worse
Sica15 CX 3 PL P
No current priceFs45 Hz +17%, worse
Qts0.40 –
Vas152.4 L −19%, better
BL17.3 T·m −5%
Xmax5.5 mm +22%, better
Sensitivity97.1 dB +1.3
Sica15 CX 3 PL T
No current priceFs45 Hz +17%, worse
Qts0.40 –
Vas152.4 L −19%, better
BL17.3 T·m −5%
Xmax5.5 mm +22%, better
Sensitivity97.1 dB +1.3
Beyma15CXA400FE
No current priceFs40 Hz +5%
Qts0.42 +5%
Vas191 L –
BL18.2 T·m –
Xmax6 mm +33%, better
Sensitivity96.6 dB +0.8
Oberton15H4CX72
No current priceFs56 Hz +48%, worse
Qts0.37 −8%
Vas113.1 L −40%, better
BL18.2 T·m –
Xmax4.5 mm –
Sensitivity99.3 dB +3.5, better
Precision DevicesPD.154NR1
No current priceFs46 Hz +21%, worse
Qts0.40 –
Vas158 L −16%, better
BL18.5 T·m –
Xmax8.5 mm +89%, better
Sensitivity97.6 dB +1.8
EminenceCANNABASS CB3015N-8
No current priceFs41 Hz +7%
Qts0.39 –
Vas162.9 L −13%, better
BL17.8 T·m –
Xmax7.2 mm +60%, better
Sensitivity96.1 dB –
P.Audio15BM-450B
No current priceFs50 Hz +32%, worse
Qts0.44 +10%
Vas120.5 L −36%, better
BL19.2 T·m +6%
Xmax4.7 mm +4%
Sensitivity97.3 dB +1.5
P.Audio15FT-45MB
No current priceFs50 Hz +32%, worse
Qts0.44 +10%
Vas120.5 L −36%, better
BL19.2 T·m +6%
Xmax4.7 mm +4%
Sensitivity97.3 dB +1.5
P.AudioE15-300S-V2
No current priceFs44 Hz +16%, worse
Qts0.36 −10%, better
Vas156.2 L −17%, better
BL20.1 T·m +11%, better
Xmax4.3 mm −6%
Sensitivity97.5 dB +1.7
P.Audio15NT-76MB
No current priceFs45 Hz +18%, worse
Qts0.43 +7%
Vas133.7 L −29%, better
BL19.0 T·m +5%
Xmax5.2 mm +16%, better
Sensitivity96.4 dB +0.6
CelestionFTR15-3070E
No current priceFs46 Hz +21%, worse
Qts0.38 −5%
Vas145.8 L −22%, better
BL17.9 T·m –
Xmax7.8 mm +72%, better
Sensitivity97.2 dB +1.4
P.Audio15FT-76MB
No current priceFs42 Hz +11%, worse
Qts0.35 −13%, better
Vas150.9 L −19%, better
BL20.4 T·m +13%, better
Xmax4.7 mm +4%
Sensitivity96.8 dB +1
P.AudioC15-600EL-V3
No current priceFs45 Hz +18%, worse
Qts0.40 –
Vas94.6 L −49%, better
BL20.4 T·m +13%, better
Xmax5.3 mm +17%, better
Sensitivity95 dB −0.8
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lautsprecherteile | £84.52, the lowest price | 4 in stock | Visit shop at Lautsprecherteile |
Best price over time
Tracked since 1 Oct
