LF Driver
Eighteen Sound
Eighteen Sound 15NCX750
Eighteen Sound 15NCX750 is a 15" 8 ohm LF driver. The validated T/S data includes Fs 49Hz, Qts 0.37, Vas 141L, Xmax 5.5mm, sensitivity 98.2dB, plus 485cm³ Vd and 123 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £454.74.
Size
15"
Impedance
8Ω
Sensitivity
98.2dB
EBP
123
Vented alignment
Vd
485cm³

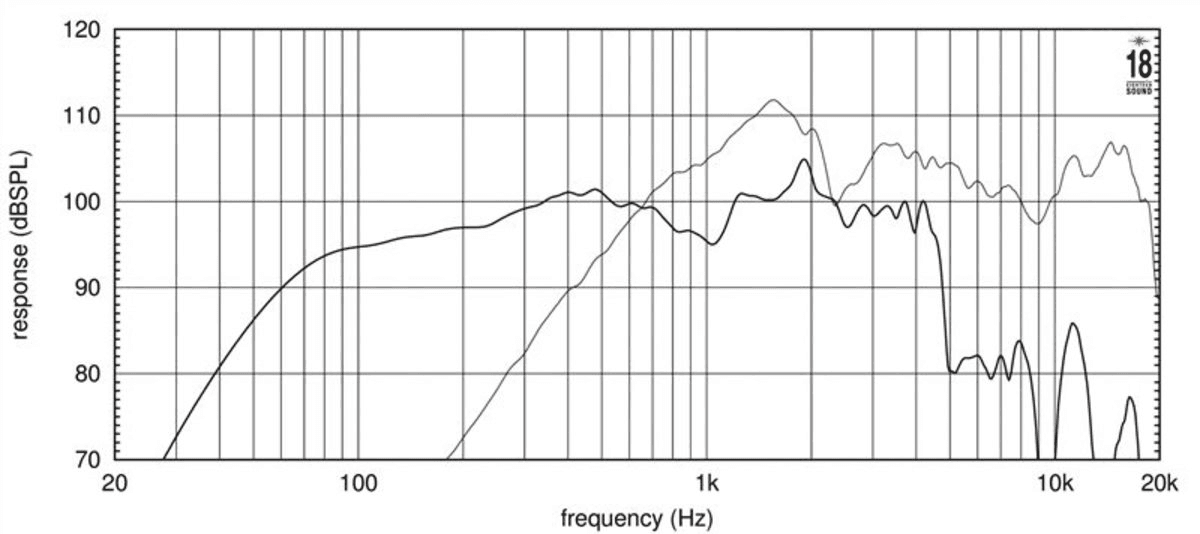

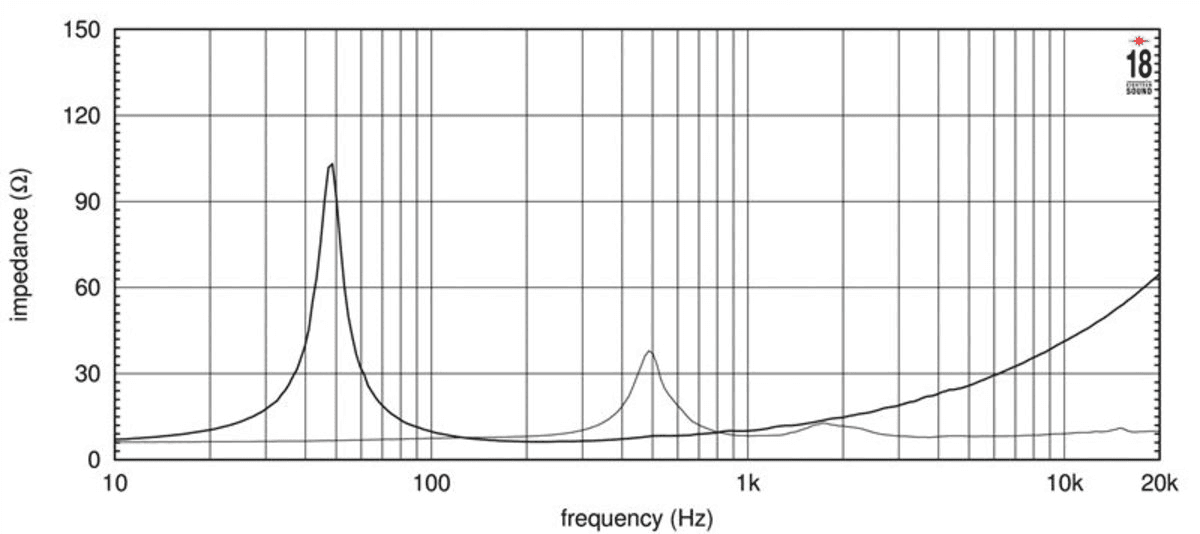

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,776 selected pixels of 5,059
T/S Parameters
Valid
Fs49Hz
Qts0.37
Qes0.40
Qms6.3
Vas141.0L
Re5.4Ω
Le0.66mH
BL18.4Tm
Sd881cm²
Mms81g
Xmax5.5mm
SPL98dB
Impedance8Ω
F Low55Hz
F High4500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£454.74
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.9kg
Diameter393.0mm
Overall Depth185.0mm
Cutout Diameter360.0mm
Bolt Circle Diameter371.0mm
