LF DriverKappaLITE series
Eminence

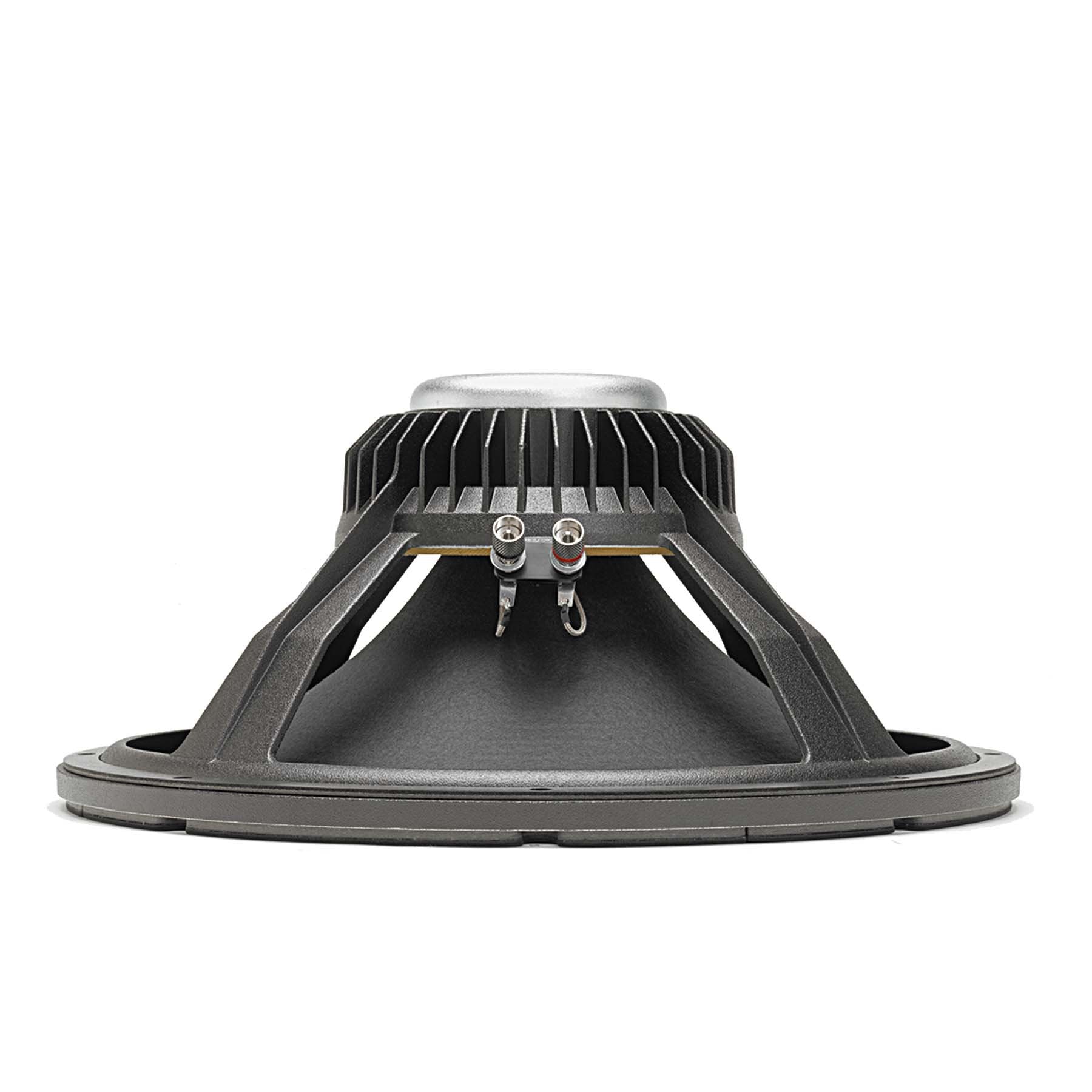

Eminence KAPPALITE 3015
Eminence KAPPALITE 3015 is a 15" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 45Hz, Qts 0.34, Vas 153L, Xmax 5.9mm, sensitivity 97.9dB, plus 505cm³ Vd and 125 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £175.00.
Size
15"
Impedance
8Ω
RMS Power
450W
Sensitivity
97.9dB
100.8dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
125
Vented alignment
Vd
505cm³
T/S Parameters
Valid
Fs45Hz
Qts0.34
Qes0.36
Qms6.7
Vas153.0L
Re5.3Ω
Le0.64mH
BL18.6Tm
Sd856cm²
Mms84g
Xmax5.9mm
SPL98dB
Power450W
Impedance8Ω
F Low40Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£175.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.6kg
Diameter389.1mm
Overall Depth172.7mm
Cutout Diameter355.6mm
Bolt Circle Diameter369.8mm
