LF Driver
Fane

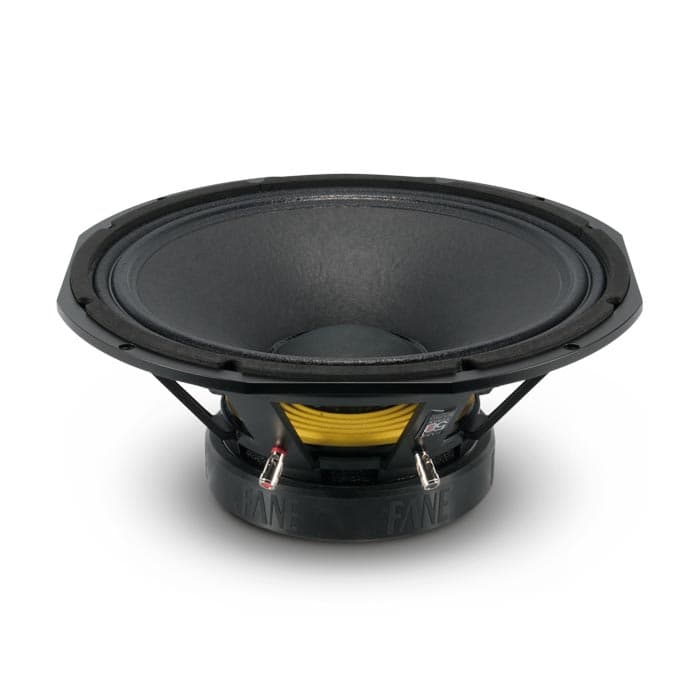

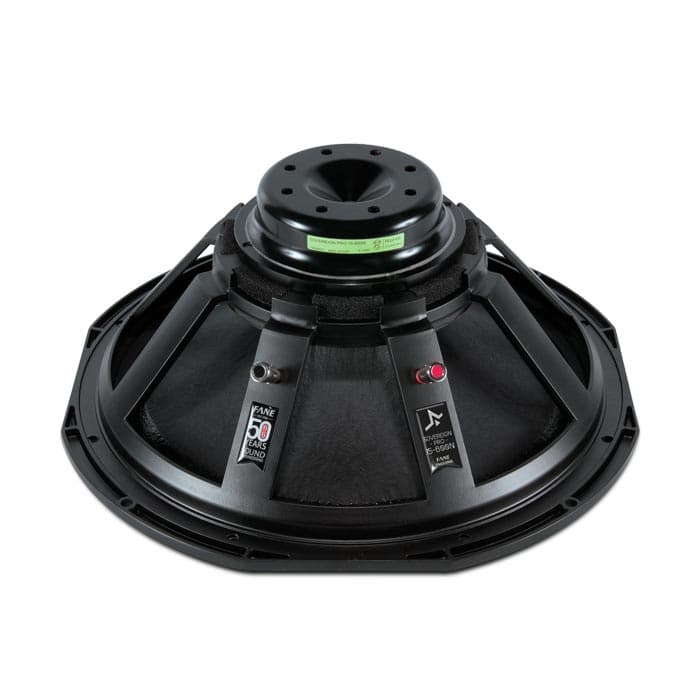

Fane SOVEREIGN PRO 15-600
Fane SOVEREIGN PRO 15-600 is a 15" 4 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 38Hz, Qts 0.35, Vas 201L, Xmax 6mm, sensitivity 96.5dB, plus 510cm³ Vd and 97 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
4Ω
RMS Power
600W
Sensitivity
96.5dB
98.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
97
Either alignment
Vd
510cm³
T/S Parameters
Valid
Fs38Hz
Qts0.35
Qes0.39
Qms3.5
Vas201.0L
Re5.4Ω
Le1.95mH
BL17.5Tm
Sd850cm²
Mms90g
Xmax6.0mm
SPL97dB
Power600W
Impedance4Ω
F Low38Hz
F High3500Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight17.5kg
Diameter406.4mm
Overall Depth169.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Fane
SOVEREIGN PRO 15-600
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
94%
Similarity
Beyma
15CXA400ND
15"
Xmax6mm0%
Qts0.36+3%
BL19Tm+9%
Vas196L-2%
Qes0.390%
90%
Similarity
£180.74
FaitalPRO
15PR450
15"
Xmax6mm0%
Qts0.350%
BL16.6Tm-5%
Vas235.6L+17%
Qes0.37-5%
87%
Similarity
£125.00
Celestion
TF1530E
15"
Xmax6.5mm+8%
Qts0.33-7%
BL17Tm-3%
Vas191.6L-5%
Qes0.37-4%
84%
Similarity
£175.00
Eminence
KAPPALITE 3015
15"
Xmax5.9mm-2%
Qts0.34-3%
BL18.6Tm+6%
Vas153L-24%
Qes0.36-8%
83%
Similarity
£169.00
Celestion
FTR15-3070C
15"
Xmax5.5mm-8%
Qts0.38+9%
BL17.3Tm-1%
Vas187.6L-7%
Qes0.43+10%
83%
Similarity
Monacor
FTR15-3070C/8
15"
Xmax5.5mm-8%
Qts0.38+9%
BL17.3Tm-1%
Vas187.6L-7%
Qes0.43+10%
83%
Similarity
£197.38
RCF
MB15N301
15"
Xmax6mm0%
Qts0.37+5%
BL19.2Tm+10%
Vas134L-33%
Qes0.390%
83%
Similarity
£239.90
Eighteen Sound
15ND830
15"
Xmax6.5mm+8%
Qts0.32-9%
BL18Tm+3%
Vas213L+6%
Qes0.35-10%
82%
Similarity
Beyma
115WRS408
15"
Xmax6.3mm+5%
Qts0.33-6%
BL18.2Tm+4%
Vas236L+17%
Qes0.35-10%
81%
Similarity
Oberton
15CX
15"
Xmax7mm+17%
Qts0.35-1%
BL18.4Tm+5%
Vas163.8L-19%
Qes0.37-5%
80%
Similarity
£454.74
Eighteen Sound
15NCX750
15"
Xmax5.5mm-8%
Qts0.37+5%
BL18.4Tm+5%
Vas141L-30%
Qes0.4+3%
80%
Similarity
£470.84
Eighteen Sound
15NCX750H
15"
Xmax5.5mm-8%
Qts0.37+5%
BL18.5Tm+6%
Vas141L-30%
Qes0.4+3%
