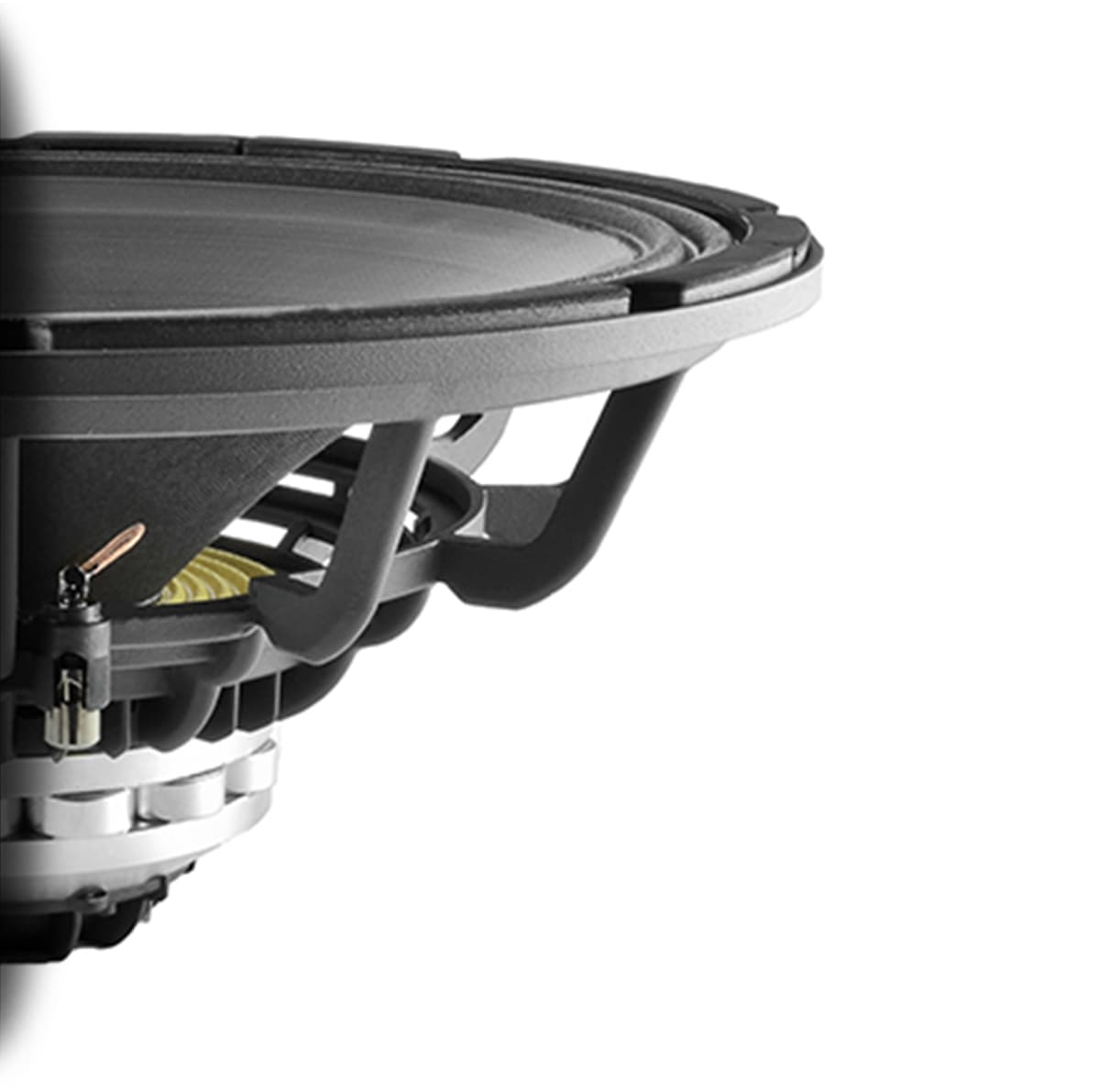

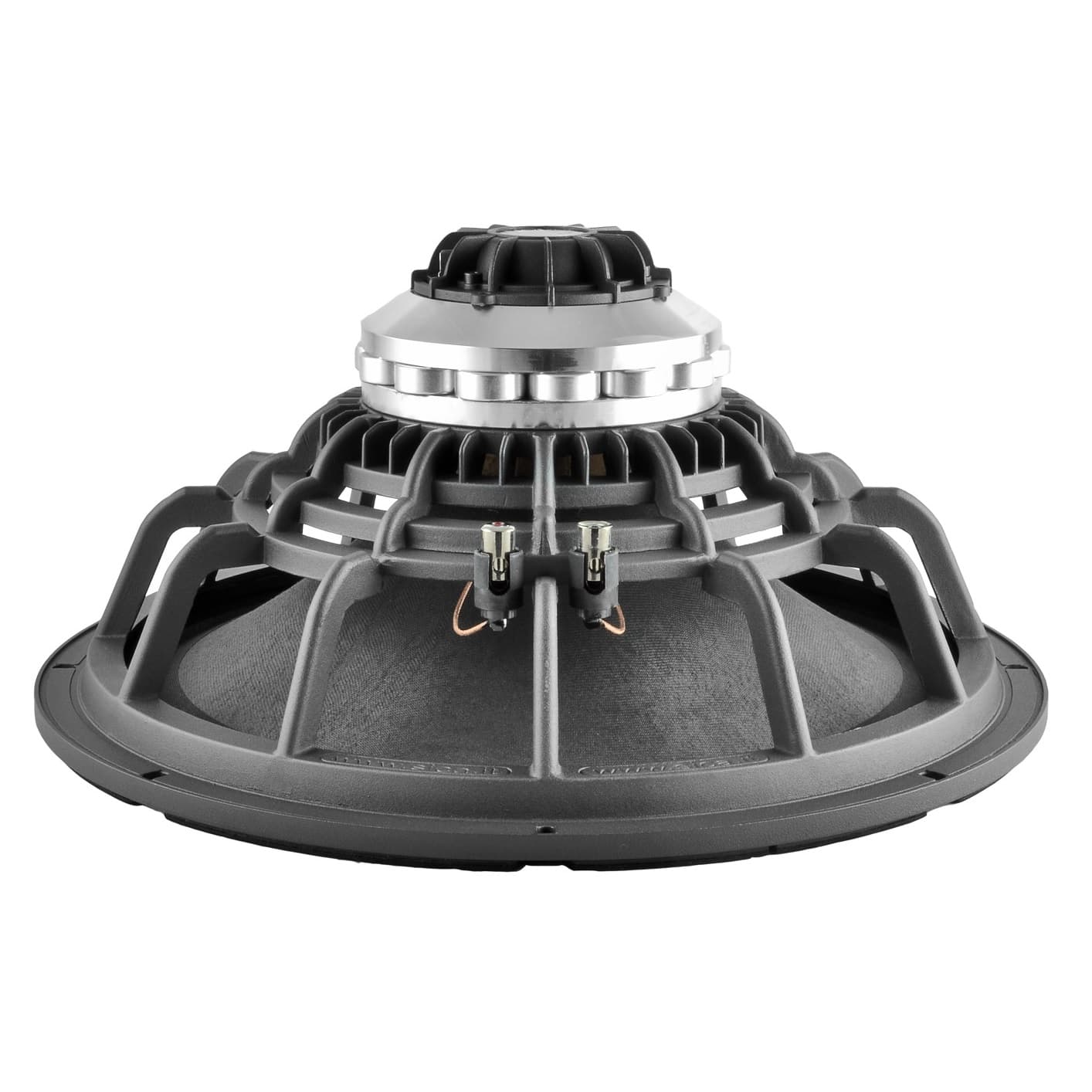

15-inch LF driver · 75 mm voice coil · 400 W

Sica 15 CX 3 PL P 8Ω

Name: Sica 15 CX 3 PL P 8 Ohm
Brand: Sica
SKU: 15 CX 3 PL P

8 Ω

No current price

View offers

Open in 00 Simulator

Fs: 45Hz
Xmax: 5.5mm
SPL: 97dB
Pe: 400W
BL: 17.3T·m
Vd: 470cm³
Qts: 0.40
Vas: 152L

See all 25 specs

Specifications

Published by Sica

Manufacturer page

Datasheet PDF

Sica 15 CX 3 PL P is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.40, Vas 152.4 L, Xmax 5.5 mm, sensitivity 97.1 dB, plus 470 cm³ Vd and 106 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 45Hz
Qts: 0.40
Qes: 0.42
Qms: 12.9
Vas: 152.4L
Re: 5.1Ω
Le: 1.12mH

Motor and cone

BL: 17.3T·m
Sd: 855cm²
Mms: 87g
Xmax: 5.5mm
Vd †: 470cm³
Voice coil: 75mm

Power and response

Sensitivity †: 97.1dB
Manufacturer sensitivity: 99.1dB
Power: 400W
Impedance: 8Ω
EBP †: 106 · Leans vented

Size and mounting

Diameter: 388mm
Cutout: 355mm
Bolt circle: 371mm
Depth: 178.9mm
Weight: 5.3kg

Other published values

Cms: 0.15mm/N
Power Program: 800

Sensitivity shows 97.1 dB, calculated from the T/S values. Sica publishes 99.1 dB, 2.0 dB apart.

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF · LF · 15″

BL: 17.3T·m
Fs: 45Hz
Le: 1.12mH
Re: 5.1Ω
Sd: 855cm²
Cms: 0.15mm/N
Mms: 87g
Qes: 0.42
Qms: 12.9
Qts: 0.40
SPL: 97.1dB
Vas: 152.4L
Xmax: 5.5mm
Power: 400W
Impedance: 8Ω
Sensitivity: 99.1dB
Power Program: 800
Calculated sensitivity †: 97.1dB
Manufacturer sensitivity: 99.1dB
Voice coil: 75mm

HF · HF

Fs: 700Hz
Re: 6Ω
SPL: 102.3dB
Power: 60W
Impedance: 8Ω
Sensitivity: 102.3dB
Power Program: 120
Manufacturer sensitivity: 102.3dB
Voice coil: 44mm
Crossover: 1600Hz

Compare

Same-size drivers, compared with the 15 CX 3 PL P. Clear differences are green when better and red when worse.

This driver15 CX 3 PL P

Best price

–

45 Hz

Qts

0.40

Vas

152.4 L

17.3 T·m

Xmax

5.5 mm

Sensitivity

97.1 dB

Power

400 W

REDCATT154FIND

£83.64

Fs38 Hz −15%

Qts0.40 –

Vas187.2 L +23%

BL18.1 T·m +5%

Xmax4.5 mm −18%

Sensitivity95.8 dB −1.3

SB AudienceBIANCO-15MW500

£110.00

Fs39 Hz −12%

Qts0.40 –

Vas171 L +12%

BL18.8 T·m +9%

Xmax7.6 mm +38%

Sensitivity96 dB −1.1

LavoceWAF153.00

£135.11

Fs43 Hz −3%

Qts0.37 −8%

Vas146.3 L −4%

BL17.9 T·m +4%

Xmax7 mm +27%

Sensitivity96.8 dB –

EminenceKAPPA PRO-15A

£139.77

Fs47 Hz +6%

Qts0.38 −5%

Vas167.7 L +10%

BL16.6 T·m −4%

Xmax3.2 mm −42%

Sensitivity98.4 dB +1.3

EminenceKAPPA-15LFA

£145.06

Fs39 Hz −12%

Qts0.38 −5%

Vas159 L +4%

BL18.6 T·m +8%

Xmax5.5 mm –

Sensitivity95.6 dB −1.5

CIAREPWA15.75

£147.84

Fs44 Hz –

Qts0.39 –

Vas135 L −11%

BL19.3 T·m +12%

Xmax7 mm +27%

Sensitivity96.5 dB −0.6

REDCATT152FIND-2

£160.94

Fs44 Hz –

Qts0.37 −8%

Vas128.5 L −16%

BL18.3 T·m +6%

Xmax4.5 mm −19%

Sensitivity96.6 dB −0.5

EminenceKAPPALITE 3015

£165.00

Fs45 Hz –

Qts0.34 −15%

Vas153 L –

BL18.6 T·m +8%

Xmax5.9 mm +7%

Sensitivity97.9 dB +0.8

CelestionFTR15-3070C

£167.00

Fs41 Hz −7%

Qts0.38 −5%

Vas187.6 L +23%

BL17.3 T·m –

Xmax5.5 mm –

Sensitivity96.9 dB –

CIAREPW396

£188.39

Fs43 Hz −3%

Qts0.41 –

Vas129 L −15%

BL20.5 T·m +19%

Xmax6.5 mm +18%

Sensitivity96 dB −1.1

MonacorFTR15-3070C/8

£190.07

Fs41 Hz −7%

Qts0.38 −5%

Vas187.6 L +23%

BL17.3 T·m –

Xmax5.5 mm –

Sensitivity96.9 dB –

BMS15N620

£216.43

Fs41 Hz −8%

Qts0.35 −13%

Vas154 L –

BL20.6 T·m +19%

Xmax5.5 mm –

Sensitivity96.6 dB −0.5

BMS15CN682

£384.52

Fs41 Hz −9%

Qts0.36 −10%

Vas137 L −10%

BL20.6 T·m +19%

Xmax5.5 mm –

Sensitivity95.9 dB −1.2

Eighteen Sound15NCX750

£454.74

Fs49 Hz +10%

Qts0.37 −8%

Vas141 L −7%

BL18.4 T·m +7%

Xmax5.5 mm –

Sensitivity98.2 dB +1.1

Eighteen Sound15NCX750H

£470.84

Fs49 Hz +10%

Qts0.37 −8%

Vas141 L −7%

BL18.5 T·m +7%

Xmax5.5 mm –

Sensitivity98.2 dB +1.1

Sica15 CX 3 PL T

No current price

Fs45 Hz –

Qts0.40 –

Vas152.4 L –

BL17.3 T·m –

Xmax5.5 mm –

Sensitivity97.1 dB –

LavoceCAN153.00TH

No current price

Fs46 Hz +3%

Qts0.39 –

Vas142.8 L −6%

BL17.8 T·m +3%

Xmax6 mm +9%

Sensitivity97.3 dB –

Beyma15CXA400FE

No current price

Fs40 Hz −10%

Qts0.42 +5%

Vas191 L +25%

BL18.2 T·m +5%

Xmax6 mm +9%

Sensitivity96.6 dB −0.5

P.Audio15NT-76MB

No current price

Fs45 Hz –

Qts0.43 +7%

Vas133.7 L −12%

BL19.0 T·m +10%

Xmax5.2 mm −5%

Sensitivity96.4 dB −0.7

P.Audio15BM-500B-V3

No current price

Fs41 Hz −8%

Qts0.37 −8%

Vas183.4 L +20%

BL17.8 T·m –

Xmax4.8 mm −13%

Sensitivity96.9 dB –

RCFMB15N301

No current price

Fs48 Hz +8%

Qts0.37 −8%

Vas134 L −12%

BL19.2 T·m +11%

Xmax6 mm +9%

Sensitivity97.8 dB +0.7

Precision DevicesPD.154NR1

No current price

Fs46 Hz +3%

Qts0.40 –

Vas158 L +4%

BL18.5 T·m +7%

Xmax8.5 mm +55%

Sensitivity97.6 dB +0.5

CelestionTF1530SL

No current price

Fs46 Hz +4%

Qts0.39 –

Vas140.1 L −8%

BL17.0 T·m –

Xmax4 mm −27%

Sensitivity96.9 dB –

EminenceCANNABASS CB3015N-8

No current price

Fs41 Hz −9%

Qts0.39 –

Vas162.9 L +7%

BL17.8 T·m –

Xmax7.2 mm +31%

Sensitivity96.1 dB −1

BMS15CN680

No current price

Fs41 Hz −9%

Qts0.36 −10%

Vas137 L −10%

BL20.6 T·m +19%

Xmax5.5 mm –

Sensitivity95.9 dB −1.2

P.AudioC15-600EL-V3

No current price

Fs45 Hz –

Qts0.40 –

Vas94.6 L −38%

BL20.4 T·m +18%

Xmax5.3 mm −5%

Sensitivity95 dB −2.1

CelestionFTR15-3070E

No current price

Fs46 Hz +3%

Qts0.38 −5%

Vas145.8 L −4%

BL17.9 T·m +4%

Xmax7.8 mm +41%

Sensitivity97.2 dB –

JensenBS15N350A-8

No current price

Fs45 Hz –

Qts0.46 +15%

Vas163.1 L +7%

BL15.2 T·m −12%

Xmax5.5 mm –

Sensitivity96.8 dB –

FaneSOVEREIGN PRO 15-600

No current price

Fs38 Hz −15%

Qts0.35 −12%

Vas201 L +32%

BL17.5 T·m –

Xmax6 mm +9%

Sensitivity96.5 dB −0.6

Oberton15XL400

No current price

Fs49 Hz +10%

Qts0.34 −16%

Vas140 L −8%

BL18.9 T·m +10%

Xmax5.3 mm −5%

Sensitivity98.7 dB +1.6

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

No current price found. Pricing may appear after the next vendor refresh.
