Overview
LF DriverTF1530 series
Celestion

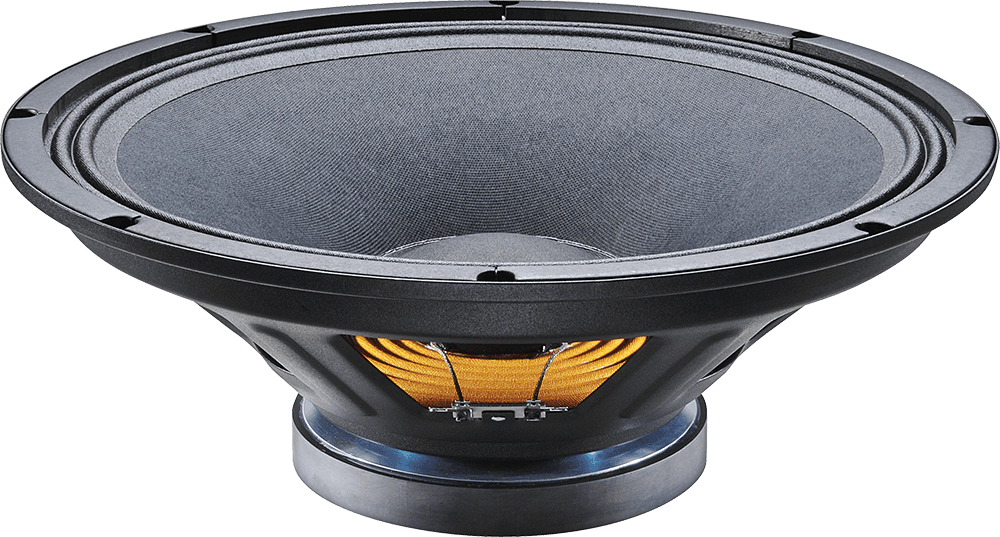

Celestion TF1530SL
Celestion TF1530SL is a 15" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 46Hz, Qts 0.39, Vas 140.1L, Xmax 4mm, sensitivity 96.9dB, plus 342cm³ Vd and 104 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
350W
Sensitivity
96.9dB
98.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
104
Vented alignment
Vd
342cm³

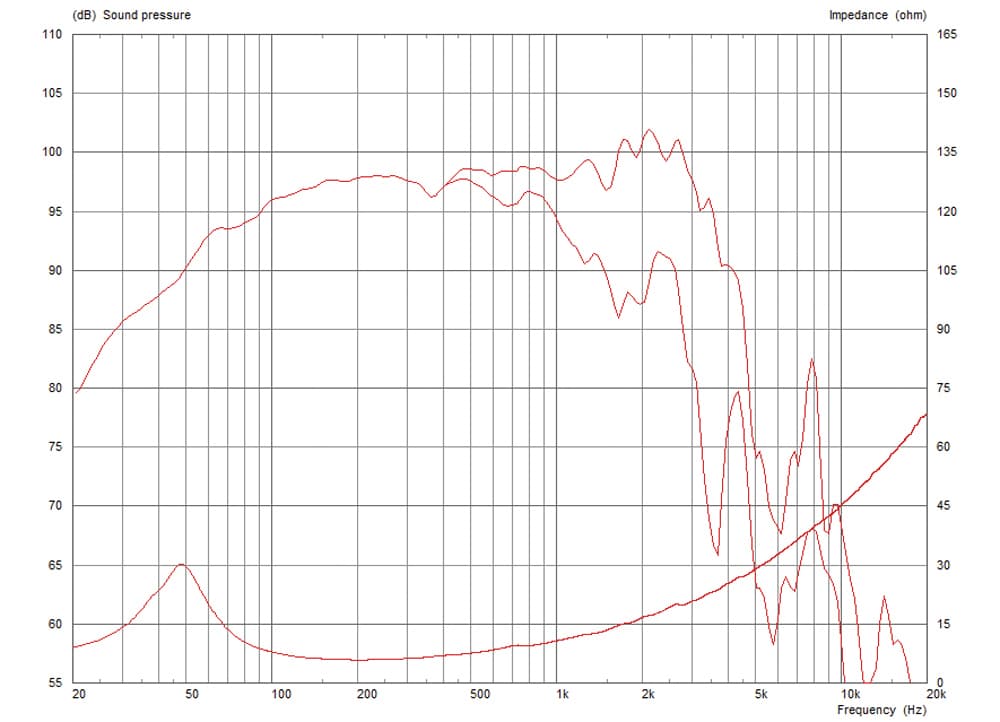

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence219 selected pixels of 376
T/S Parameters
Valid
Fs46Hz
Qts0.39
Qes0.45
Qms3.1
Vas140.1L
Re5.1Ω
Le0.99mH
BL17.0Tm
Sd855cm²
Mms88g
Xmax4.0mm
SPL97dB
Power350W
Impedance8Ω
Voice Coil75mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.0kg
Diameter385.0mm
Overall Depth161.0mm
Cutout Diameter352.0mm
Bolt Circle Diameter369.0mm
