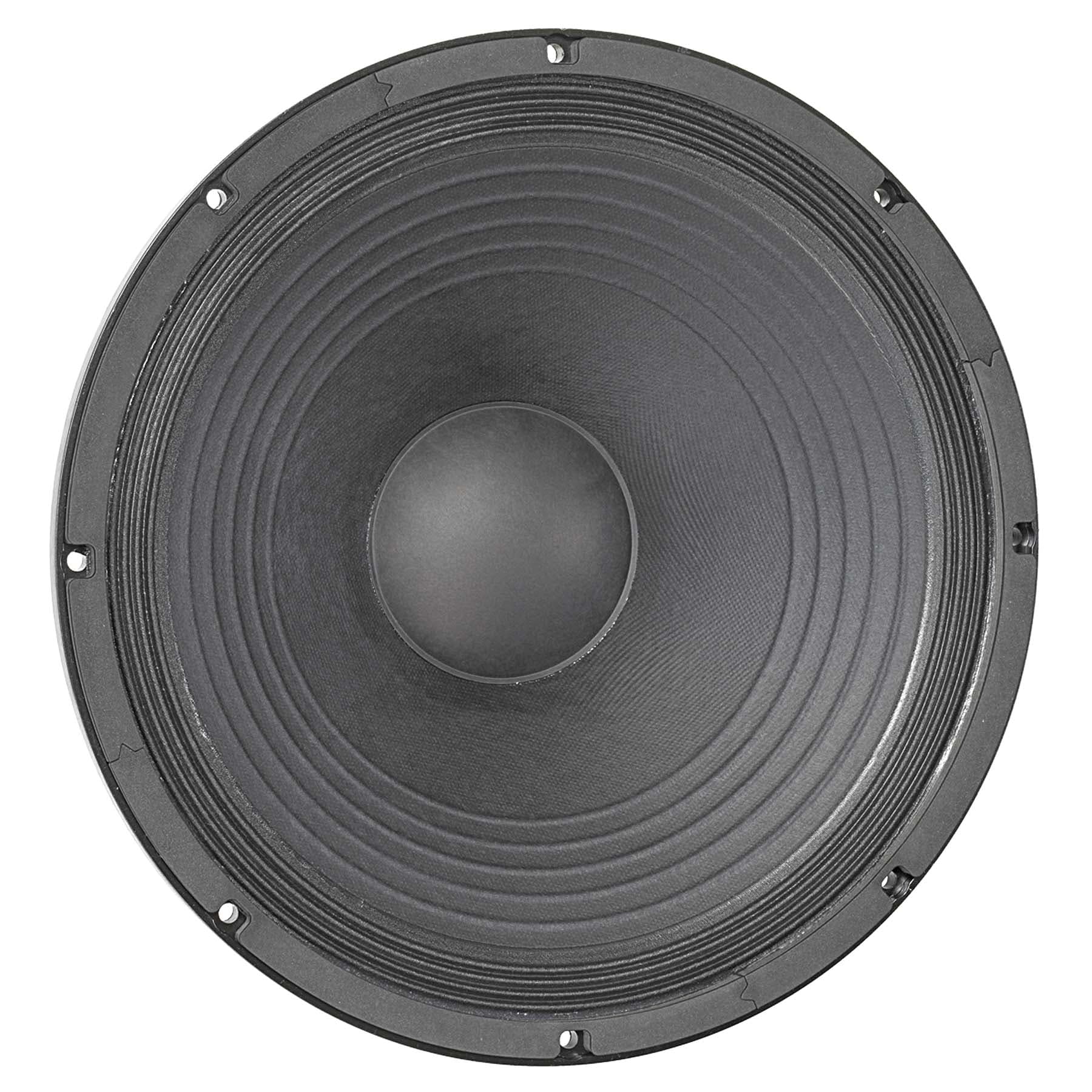

Eminence KAPPA PRO-15A
Eminence KAPPA PRO-15A is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 47Hz, Qts 0.38, Vas 167.7L, Xmax 3.2mm, sensitivity 98.4dB, plus 274cm³ Vd and 118 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
98.4dB
101.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
118
Vented alignment
Vd
274cm³
T/S Parameters
Valid
Fs47Hz
Qts0.38
Qes0.40
Qms8.0
Vas167.7L
Re5.2Ω
Le1.01mH
BL16.6Tm
Sd856cm²
Mms72g
Xmax3.2mm
SPL98dB
Power500W
Impedance8Ω
F Low46Hz
F High4000Hz
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.7kg
Diameter389.1mm
Overall Depth153.9mm
Cutout Diameter355.6mm
Bolt Circle Diameter369.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
KAPPA PRO-15A
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
74%
Similarity
Celestion
TF1530SL
15"
Xmax4mm+25%
Qts0.39+2%
BL17Tm+2%
Vas140.1L-16%
Qes0.45+11%
67%
Similarity
£100.00
P.Audio
15BM-300B-V3
15"
Xmax3.9mm+22%
Qts0.4+5%
BL19.2Tm+16%
Vas123.3L-26%
Qes0.43+7%
67%
Similarity
P.Audio
15BM-400B-V3
15"
Xmax3.9mm+22%
Qts0.4+5%
BL19.2Tm+16%
Vas123.3L-26%
Qes0.43+7%
65%
Similarity
Celestion
TN1530
15"
Xmax3.8mm+17%
Qts0.32-17%
BL19.3Tm+16%
Vas156.6L-7%
Qes0.36-11%
64%
Similarity
P.Audio
15BMA-400B
15"
Xmax3.8mm+17%
Qts0.46+21%
BL16Tm-4%
Vas159.8L-5%
Qes0.49+22%
60%
Similarity
£254.59
BMS
15C262
15"
Xmax2.5mm-22%
Qts0.34-11%
BL20.6Tm+24%
Vas138L-18%
Qes0.36-10%
