Overview
LF Driver
Sica

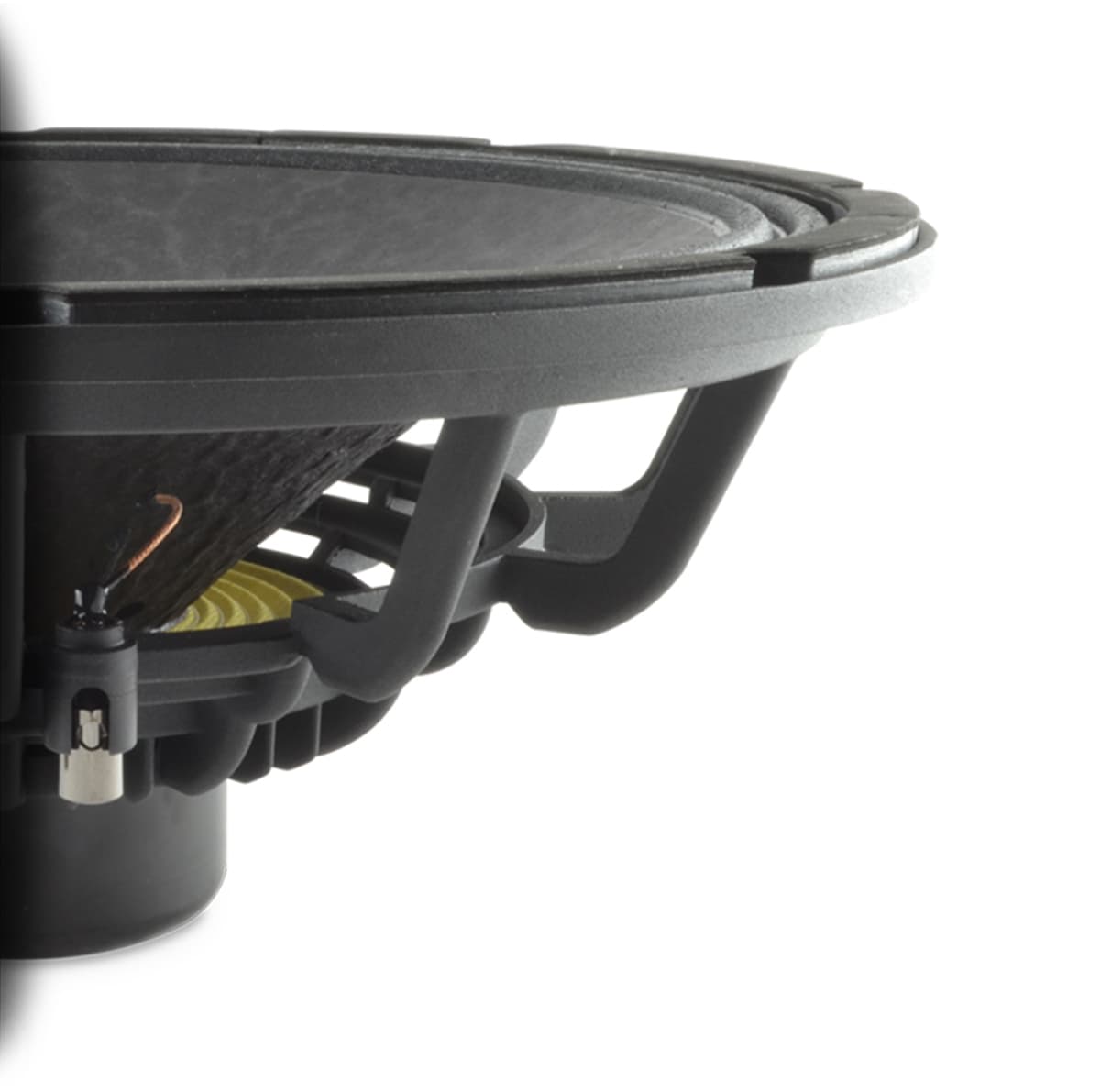

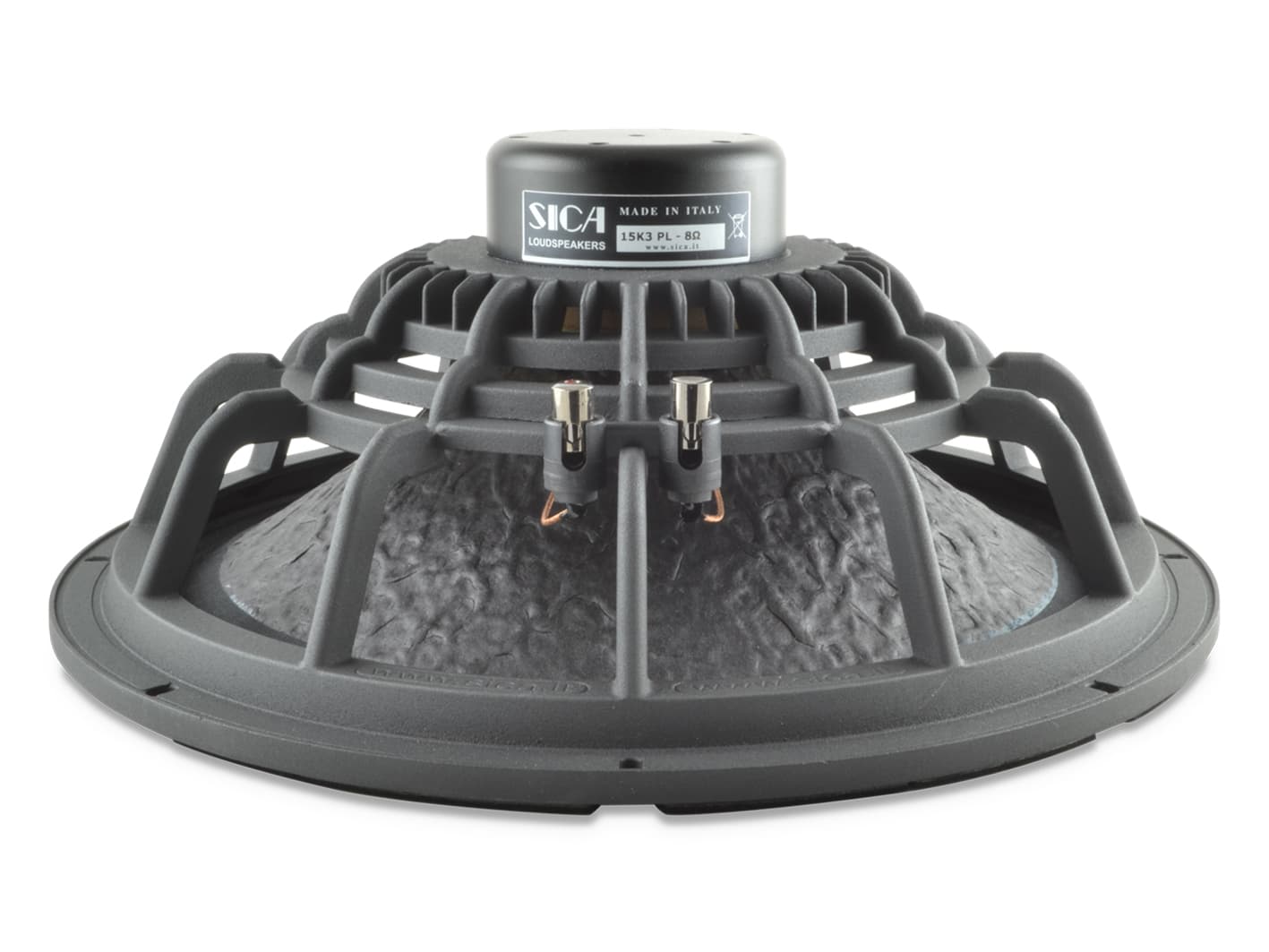

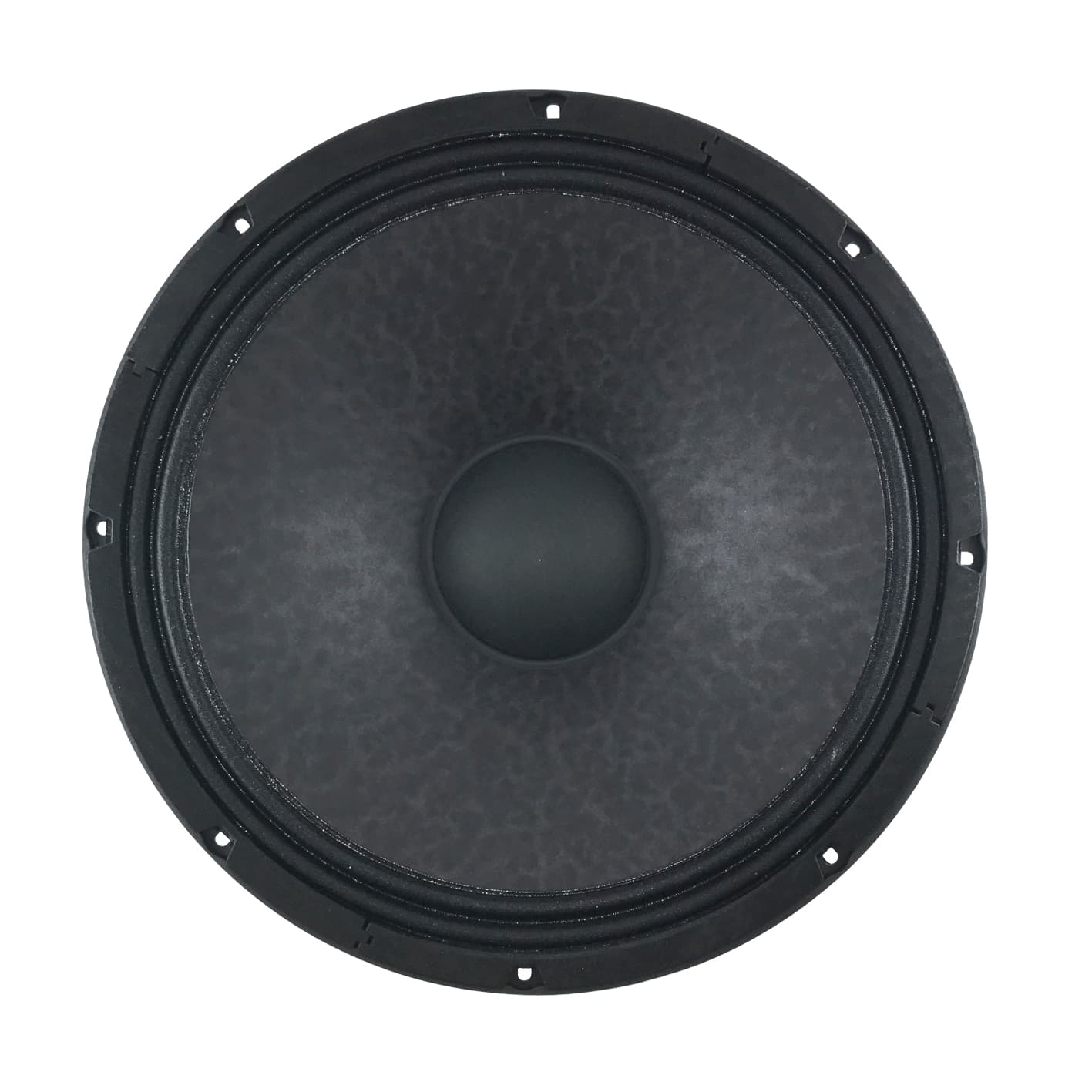

Sica 15 S 3 PL
Sica 15 S 3 PL is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 33Hz, Qts 0.38, Vas 230L, Xmax 8mm, sensitivity 95.3dB, plus 684cm³ Vd and 85 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
95.3dB
97.2dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
85
Either alignment
Vd
684cm³
T/S Parameters
Valid
Fs33Hz
Qts0.38
Qes0.39
Qms14.1
Vas230.0L
Re5.2Ω
Le1.15mH
BL17.1Tm
Sd855cm²
Mms105g
Xmax8.0mm
SPL95dB
Power400W
Impedance8Ω
Voice Coil75mm
Flux Density1.22T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.9kg
Diameter388.0mm
Overall Depth161.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
15 S 3 PL
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
95%
Similarity
£187.96
Eighteen Sound
15W750
15"
Xmax8mm0%
Qts0.37-3%
BL17.6Tm+3%
Vas218L-5%
Qes0.390%
82%
Similarity
£155.00
Celestion
FTR15-3070E
15"
Xmax7.8mm-3%
Qts0.380%
BL17.9Tm+5%
Vas145.8L-37%
Qes0.43+9%
82%
Similarity
£220.22
FaitalPRO
15FH520
15"
Xmax8.8mm+9%
Qts0.39+3%
BL18.4Tm+8%
Vas186.5L-19%
Qes0.41+5%
81%
Similarity
Fane
SOVEREIGN 15-600LF
15"
Xmax6.5mm-19%
Qts0.39+2%
BL15.9Tm-7%
Vas236L+3%
Qes0.41+6%
80%
Similarity
£110.00
SB Audience
BIANCO-15MW500
15"
Xmax7.6mm-5%
Qts0.4+5%
BL18.8Tm+10%
Vas171L-26%
Qes0.41+5%
79%
Similarity
£135.11
Lavoce
WAF153.00
15"
Xmax7mm-12%
Qts0.37-3%
BL17.9Tm+5%
Vas146.3L-36%
Qes0.390%
79%
Similarity
£53.57
GRS
15PT-8
15"
Xmax7.8mm-3%
Qts0.41+8%
BL20.2Tm+18%
Vas242.1L+5%
Qes0.43+10%
79%
Similarity
Eminence
CANNABASS CB3015N-8
15"
Xmax7.2mm-10%
Qts0.39+3%
BL17.8Tm+4%
Vas162.9L-29%
Qes0.43+10%
78%
Similarity
Oberton
15NCX
15"
Xmax7.8mm-3%
Qts0.36-5%
BL18.6Tm+8%
Vas138.4L-40%
Qes0.38-4%
77%
Similarity
Eighteen Sound
15ND840
15"
Xmax9.5mm+19%
Qts0.37-3%
BL17.9Tm+5%
Vas163L-29%
Qes0.390%
77%
Similarity
£156.00
Fane
SOVEREIGN PRO 15-600LF
15"
Xmax6.9mm-14%
Qts0.37-3%
BL19.7Tm+15%
Vas188L-18%
Qes0.38-3%
76%
Similarity
£180.74
FaitalPRO
15PR450
15"
Xmax6mm-25%
Qts0.35-8%
BL16.6Tm-3%
Vas235.6L+2%
Qes0.37-5%
