LF Driver
GRS

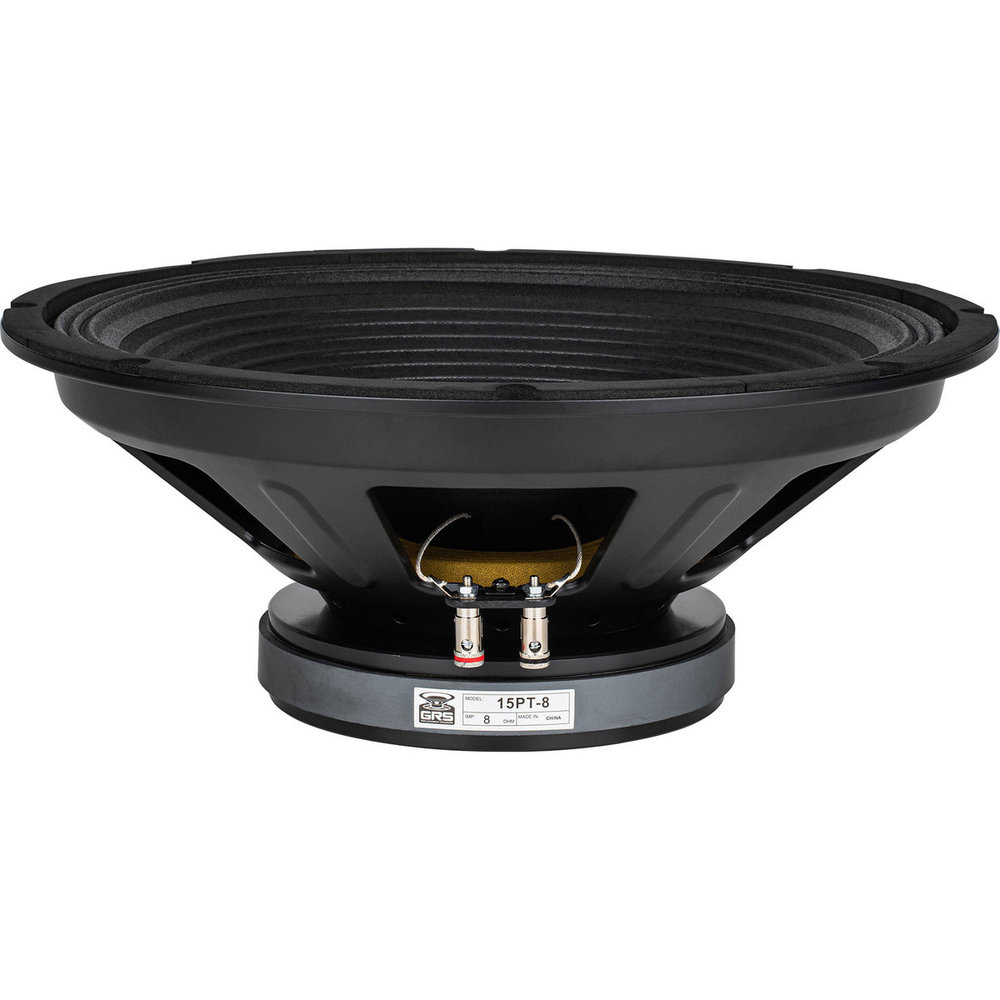

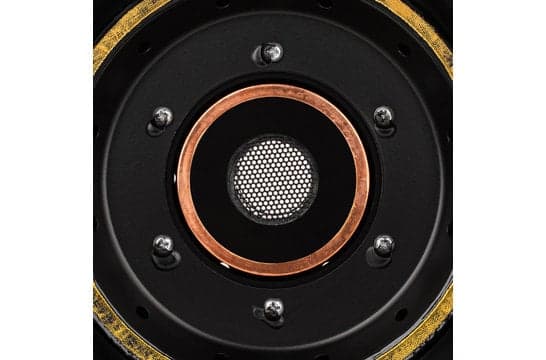

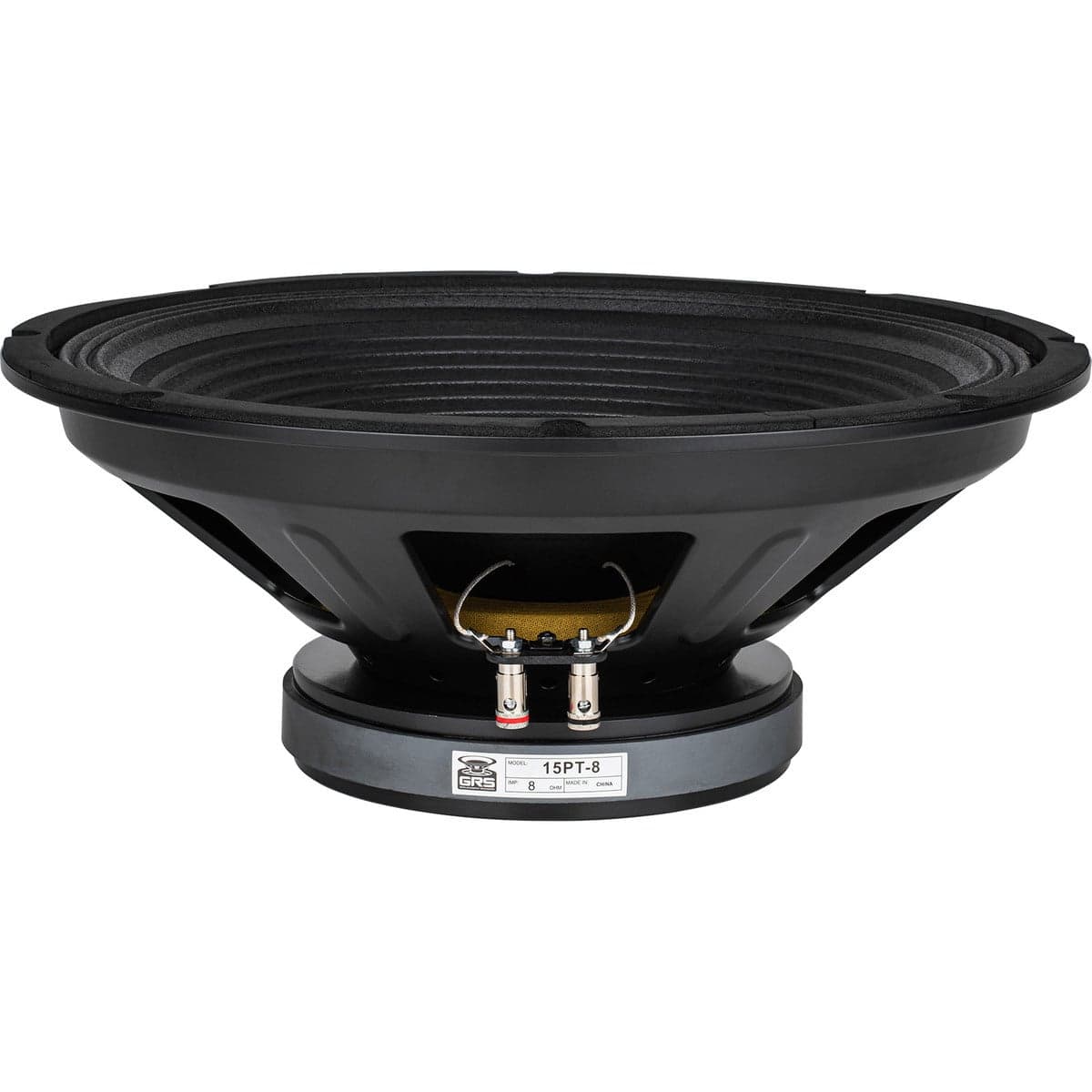

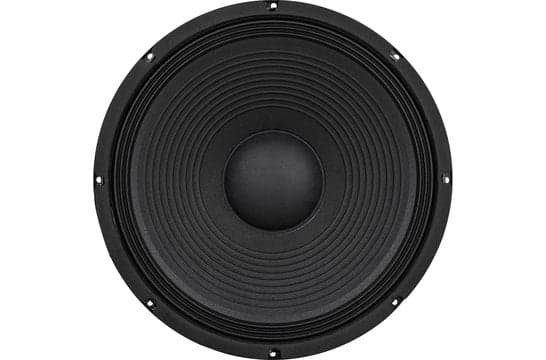

GRS 15PT-8
GRS 15PT-8 is a 15" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 28Hz, Qts 0.41, Vas 8.6L, Xmax 7.8mm, sensitivity 78.4dB, plus 647cm³ Vd and 65 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £53.17.
Size
15"
Impedance
8Ω
RMS Power
350W
Sensitivity
78.4dB
93.0dBmanufacturer; using T/S-derived value (14.6dB delta).
EBP
65
Either alignment
Vd
647cm³
T/S Parameters
Valid
Fs28Hz
Qts0.41
Qes0.43
Qms11.7
Vas8.6L
Re7.4Ω
Le2.10mH
BL20.2Tm
Sd830cm²
Mms137g
Xmax7.8mm
SPL78dB
Power350W
Impedance8Ω
F Low30Hz
F High6000Hz
Voice Coil76mm
Pricing & availability
Price definitionsPrice movement
Best current price
£53.17
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter384.0mm
Overall Depth149.9mm
Cutout Diameter349.8mm
Bolt Circle Diameter372.1mm
