B&C 15PS100
B&C 15PS100 is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 39Hz, Qts 0.43, Vas 103L, Xmax 8mm, sensitivity 93.2dB, plus 684cm³ Vd and 83 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £189.00.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
93.2dB
95.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
83
Either alignment
Vd
684cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 bd7fb4843038…Medium confidence5,933 selected pixels of 5,933 - Trace datasheet-response-trace-poc/v2

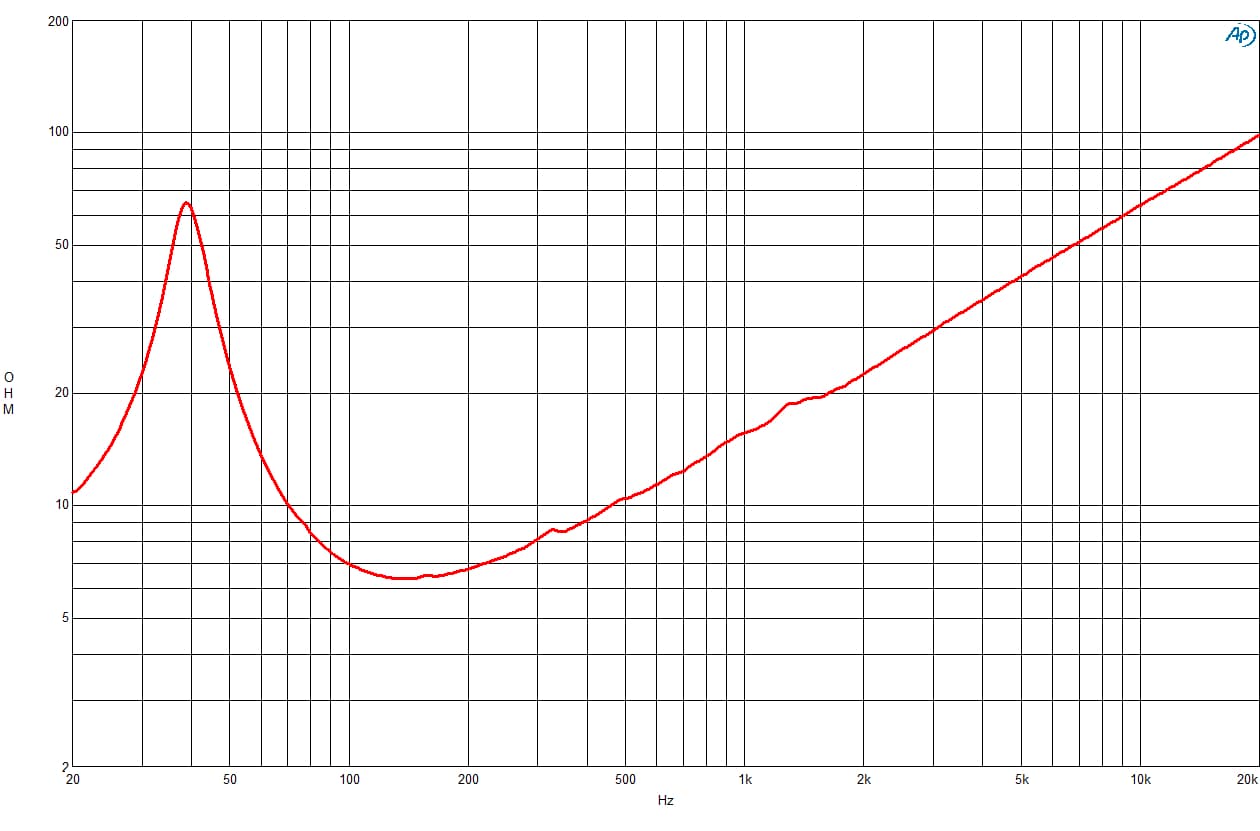

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 bd7fb4843038…Medium confidence3,747 selected pixels of 3,747
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs39Hz
Qts0.43
Qes0.47
Qms6.0
Vas103.0L
Re5.2Ω
Le2.00mH
BL21.2Tm
Sd855cm²
Mms160g
Xmax8.0mm
SPL93dB
Power700W
Power Nominal700W
Impedance8Ω
Min Impedance6.5Ω
F Low35Hz
F High1500Hz
Voice Coil100mm
Flux Density1.05T
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
7 vendorsbluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£189.00
inc VAT
thomann
Updated 11 Sept 2026
Source: inc VAT · 20%
£189.00
inc VAT
In stock
jpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£202.14
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£202.14
inc VAT
In stock
jpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£206.90
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£206.90
inc VAT
In stock
partsexpress
Updated 11 Sept 2026
Source: ex VAT
£252.69
inc VAT
3 in stock
Best current price
Updated 11 Sept 2026
bluearan
£189.00
Avg £204.72£15.72 below avg (-7.7%)
inc VAT·approx 2 months
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.8kg
Diameter393.0mm
Overall Depth168.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl21.2 Tm
Fs39 Hz
Le2 mH
Re5.2 Ω
Sd855 cm² (132.5 in²)
Ebp83 Hz
Mms160 g
Qes0.47
Qms6
Qts0.43
Vas103 dm³ (3.64 ft³)
η01.35 %
ConeRCK15PS1008
Xmax8 mm
Xvar6.5 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth21 mm (0.83 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth11 mm (0.4 in)
Recommended Tuning35 Hz
Bolt Circle Diameter374 mm (14.72 in)
Recommended Enclosure120 dm³ (4.24 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness16 mm (0.63 in)
Air Volume Occupied By Driver6.3 dm³ (0.22 ft³)
